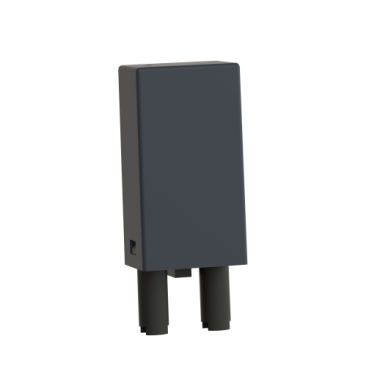

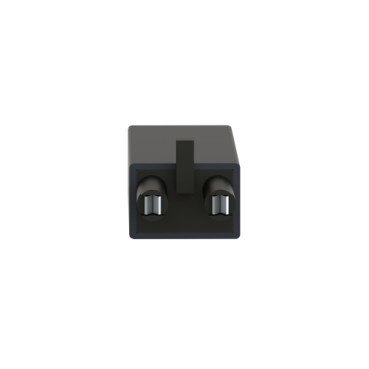

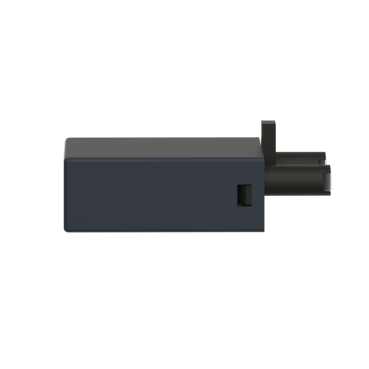

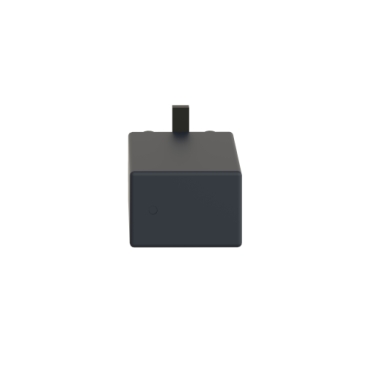

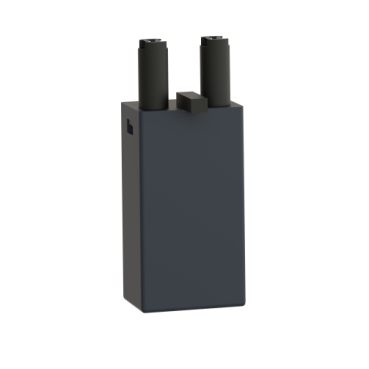

Harmony Electromechanical Relays Protection module diode, for all sockets, 6…230V DC
Item Number: RZM040W
This Harmony RXZ diode has a rated voltage of 6V to 230V DC. It has a light weight and it is compatible with RSZ socket with 1 and 2 changeover contacts. This protection module enables safety to your relay which helps to protect both people and system from electrical shock. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. It can be matched with any relay socket from RSZ range.
Datasheet
Specifications
Design
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Product or component type | protection module |
| Product compatibility |
|
| Product destination | RSB relay |
| Warranty | 18 months |
Physical
| Sale per indivisible quantity | 10 |
|---|---|
| Net weight | 0.003 kg |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2502012EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | X |
| Eu rohs directive | Compliant |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
