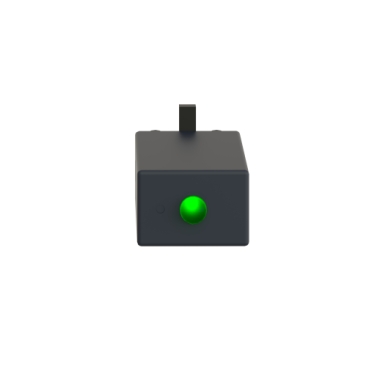

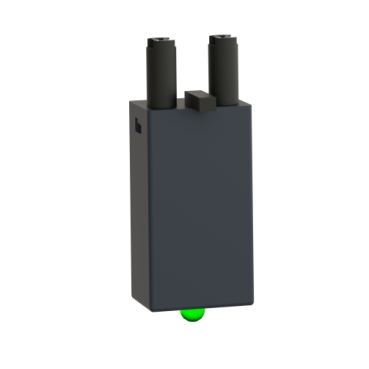

Harmony Electromechanical Relays Protection module Varistor+green LED, for all sockets, 6…24V AC DC

Home ProductsIndustrialHarmonyProtection module

Harmony Electromechanical Relays Protection module Varistor+green LED, for all sockets, 6…24V AC DC

Item Number: RZM021RB

This Harmony RXZ varistor has a rated voltage of 6V to 24V AC/DC. It has a light weight and it is compatible with socket RSZ with 1 and 2 changeover contacts. This protection module enables safety to your relay which helps to protect both people and system from electrical shock. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. It can be matched with any relay socket from RSZ range.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

protection module

Product compatibility

  • socket RSZ (1 C/O)
  • socket RSZ (2 C/O)
  • socket RGZ (1 C/O)
  • socket RGZ (2 C/O)

Product destination

RSB relay

Warranty

18 months

Physical

Sale per indivisible quantity

10

Net weight

0.005 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2502012EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 3 bare product quantity

1500

Package 2 bare product quantity

10

Package 1 bare product quantity

1

Legacy weee scope

Out

Weee label

No

Average percentage of recycled plastic content

0 %

At least in Europe

Accessory / separate part category

protection accessories

Accessory / separate part designation

varistor + green LED

[uc] control circuit voltage

6...24 V AC/DC

[uc] control circuit voltage

6...24 V

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.400 cm

Package 1 width

1.400 cm

Package 1 length

3.500 cm

Package 1 weight

2.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

1.500 cm

Package 2 width

6.000 cm

Package 2 length

9.000 cm

Package 2 weight

24.000 g

Unit type of package 3

S02

Number of units in package 3

1500

Package 3 height

15.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

3.938 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.9 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.0656916660411691

Carbon footprint of the manufacturing phase [a1 to a3]

0.1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0025212103734596055

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.8045567952490357

Carbon footprint of the use phase [b2, b3, b4, b6]

0.8 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.008759974165348152

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.8815296458290125

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
