TeSys Mini-Vario Switch disconnector 125A, on door

Item Number: VBF5

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110804676	-

Specifications

Design

Range	TeSys
Device application	preventive maintenance
Product or component type	switch disconnector
Warranty	18 months

Physical

Mounting support	handle: door switch: door
Fixing mode	by 4 screws for handle
[ue] rated operational voltage	690 V AC 50/60 Hz
[ie] rated operational current	68.5 A AC-23 Ue: 400 V
Control type	rotary handle
Marking	0 - 1
Mechanical durability	30000 cycles
Electrical durability	30000 cycles AC-21 30000 cycles DC-1...5
Connections - terminals	power circuit: screw clamp terminals95-95 mm² - solid power circuit: screw clamp terminals70-70 mm² - flexible - with cable end
Height	125 mm
Width	90 mm
Net weight	1.2 kg

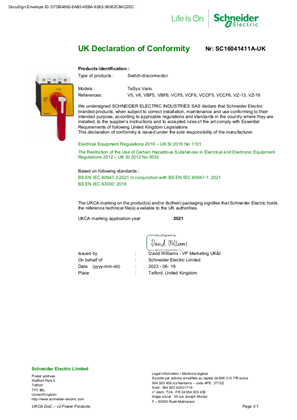

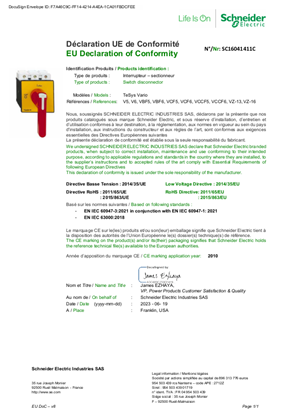

Standards	IEC 60947-3

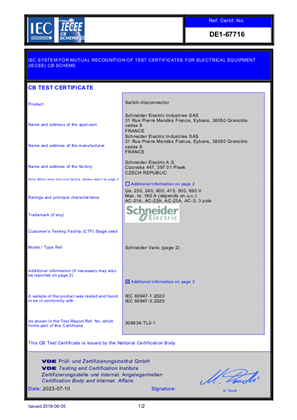

Product certifications	CCC UL CSA GL UKCA
Ip degree of protection	IP20 conforming to IEC 60529 IP65
Ambient air temperature for operation	-20...50 °C
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2211006EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Material

Device composition	switch handle

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	TeSys VARIO
Device short name	VBF
Performance level	high performance
Poles description	3P
Contacts type and composition	3 NO
Rated operational power in w	22 kW at 230...240 V (AC-3) 30 kW at 400...415 V (AC-3) 30 kW at 690 V (AC-3) 37 kW at 500 V (AC-3) 37 kW at 690 V (AC-23A) 45 kW at 500 V (AC-23A) 22 kW at 230...240 V (AC-23A) 37 kW at 400...415 V (AC-23A)
[ith] conventional free air thermal current	125 A
[ithe] conventional enclosed thermal current	100 A
Making capacity	1250 A at 400 V AC-21A 1250 A at 400 V AC-22A 1250 A at 400 V AC-23A
Breaking capacity	1000 A at 400 V (AC-21A) 1000 A at 400 V (AC-22A) 1000 A at 400 V (AC-23A)
Rated conditional short-circuit current	10 kA at 400 V - associated fuse 125 A aM 10 kA at 400 V - associated fuse 125 A gG
[icm] rated short-circuit making capacity	2.8 kA at 400 V at Ipeak
[icw] rated short-time withstand current	1500 A at 400 V duration: 1 s
[uimp] rated impulse withstand voltage	8 kV
Suitability for isolation	yes
Network type	AC DC
Intermittent duty class	30
Rotary handle mounting style	direct
Handle colour	black
Handle front plate colour	yellow
Rotary handle padlocking	1 to 3 padlocks 4-8 mm
Tightening torque	power circuit: 22.6...22.6 N.m - on screw clamp terminals
Base dimension	90 x 90 mm
Protective treatment	TC
Mechanical robustness	vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
Fire resistance	960 °C conforming to IEC 60695-2-1
Compatibility code	main switch disconnector
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	10.0 cm
Package 1 width	17.0 cm
Package 1 length	17.5 cm
Package 1 weight	1.063 kg
Unit type of package 2	S03
Number of units in package 2	6
Package 2 height	30.0 cm
Package 2 width	30.0 cm
Package 2 length	40.0 cm
Package 2 weight	6.834 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	40 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	7.580201524038504
Carbon footprint of the manufacturing phase [a1 to a3]	8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.23384012127121842
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.10521296371880769
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	28.971796700100345
Carbon footprint of the use phase [b2, b3, b4, b6]	29 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	3.1822131632594437
Carbon footprint of the end-of-life phase [c1 to c4]	3 kg CO2 eq.
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	40.07326447238832
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	7e830853-d45f-4937-b6fb-a94dd9fb18f3
China rohs label	1
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
