Canalis KBA Tap off unit Canalis KB, 16A, polarity L+N+PE, with phase selection, direct connection, compatible DALI/KNX protocol

Item Number: KBC16DCB21

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width168 mm

Height53 mm

Depth33 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480002229	-
10	CAR	13606480002226	-

Specifications

Design

Range of product	Canalis
Range	Canalis
Product or component type	connector
Device application	lighting power socket distribution
Warranty	18 months

Physical

Range compatibility	Canalis KBA busbar trunking Canalis KBB busbar trunking
[ie] rated operational current	16 A at 35 °C
[ue] rated operational voltage	230...240 V
Communication port protocol	DALI KNX
Protection type	without protection
Width	168 mm
Depth	33 mm
Height	53 mm
Net weight	90 g
Quantity per set	set of 10
Standards	EN/IEC 61439-1 EN/IEC 61439-6
Ip degree of protection	IP55 conforming to EN/IEC 60529
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2404010EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	PEP created standard configuration (Canalis KDP), but individual CR is component
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	10
Package 3 bare product quantity	440
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Offer type	control system
Network frequency	50/60 Hz

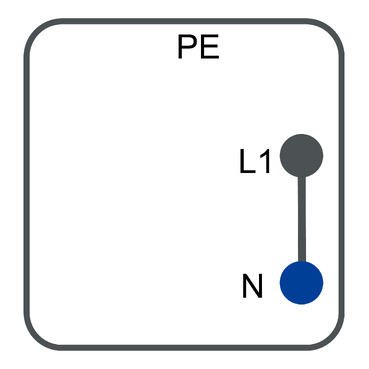

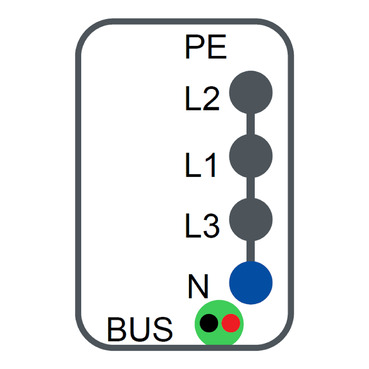

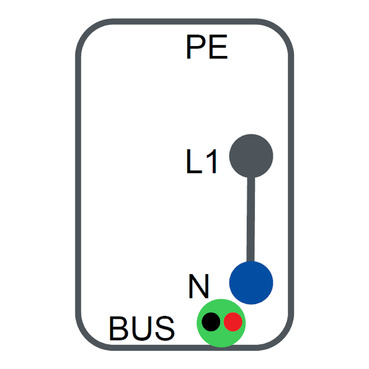

Tap-off unit polarity	L1 + N + PE L2 + N + PE L3 + N + PE
Tap-off unit connector type	with phase selection
Tap-off lock colour	blue
[uimp] rated impulse withstand voltage	4 kV
[ui] rated insulation voltage	690 V
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.000 cm
Package 1 width	5.000 cm
Package 1 length	13.500 cm
Package 1 weight	92.000 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	12.000 cm
Package 2 width	16.000 cm
Package 2 length	25.000 cm
Package 2 weight	998.000 g
Unit type of package 3	P06
Number of units in package 3	440
Package 3 height	62.500 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	48.912 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	Yes
Pvc free	Yes
Halogen-free status	Halogen free product
Silicone-free	Yes
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
Halogen-free status	Halogen free product
Pvc free	Yes
Silicone-free	Yes
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
