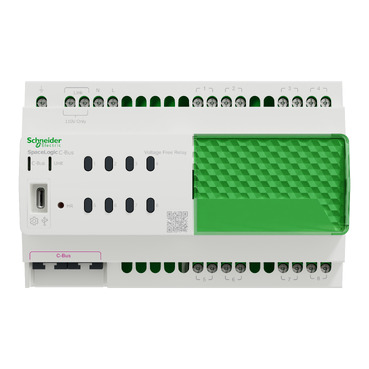

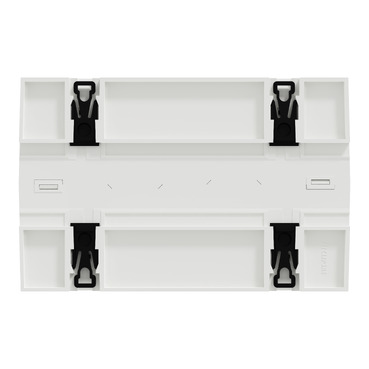

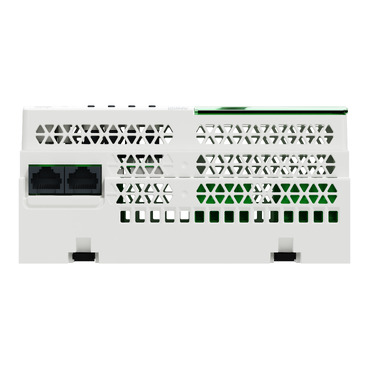

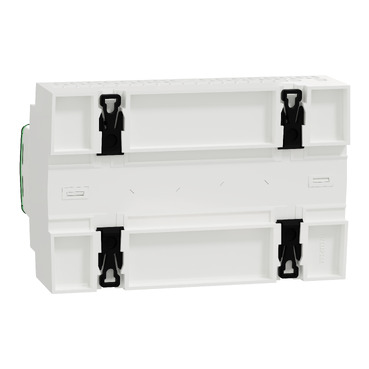

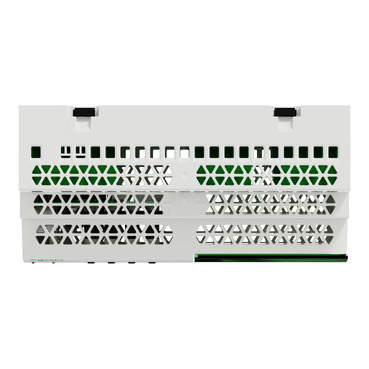

SpaceLogic C-Bus Relay voltage free 8 channel, DIN rail mounted, selectable inbuilt C-Bus power supply
Item Number: 5508RVF
Specifications
Design
Range of product
Product brand
Range
Product or component type
Device application
Physical
Rated voltage
- 220...240 V AC 50 Hz
- 100...120 V AC 60 Hz
Local signalling
Connector type
Load type
- LED lamp: 400 W, 230 V
- LED lamp: 150 W, 110 V
- incandescent lamps: , 10 A
- inductive load: , 10 A
- fluorescent lamps: , 16 A
- motor: , 5 A
[ie] rated operational current
Inrush current
- 800 A during 0.2 ms
- 165 A during 20 ms
Number of channels
Width
Height
Depth
Connections - terminals
Connections - terminals
Device mounting
Net weight
Ip degree of protection
Device presentation
Ambient air temperature for operation
Relative humidity
Product certifications
- CE
- RCM
- UKCA
Standards
- AS/NZS 60669.2.1
- IEC 60669-2-1
- IEC 60669-1
Reach regulation
Reach free of svhc
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
Others
Commercial status history
- SESA59909
- Sun Sep 08 01:59:00 EDT 2024
- From Unitary Local
- From 06 to 08
Package 1 bare product quantity
Package 2 bare product quantity
[uc] control circuit voltage
- 230 V AC 50 Hz +/- 10 %
- 110 V AC 60 Hz +/- 10 %
Maximum switching current
Operational power in w
- 400 W
- 150 W
[us] rated supply voltage
Minimum switching capacity
Number of outputs
Number of modules
Operating rate
Minimum switching current
Minimum switching voltage
Output switching mode
Operating position
Number of contacts as normally open contact
Contact terminal arrangement
With led indication
Control button type
Forced guided contact present
Control circuit type
Contacts type and composition
Tightening torque
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
Product Brochures
-
Installation Instruction
-
End of Life Manual
-
Environmental Disclosure
-
Operating Manuals
-
Declaration of Conformity
-
Certificates (MSDS)
-
Software - Utility

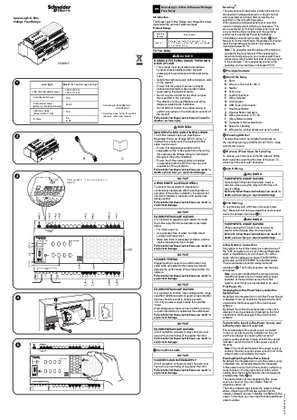

Schneider, 5504RVF_5508RVF and 5516RVF electronic relays, EU Declaration of Conformity
VERSION
1.0
DATE
04 Sep 2024
REVISION
1.0
Schneider, 5504RVF_5508RVF and 5516RVF electronic relays, UK Declaration of Conformity
VERSION
1.1
DATE
04 Sep 2024
REVISION
1.1
Frequently Asked Questions
How to enable/disable the C-Bus system clock generator for 5516RVF

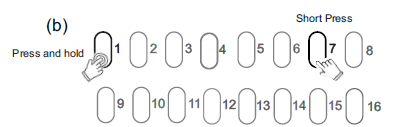

Hide ShowThe integrated C-Bus Clock generator can be enabled or disabled via the front panel by performing a short press on the top second-to-right button whilst holding down the top left channel button to toggle the enabled state.
The enabled status of the integrated C-Bus Clock is shown on the C-Bus indicator.
(Green - Enable, Yellow - Disable).
For 5508RVF and 5504RVF
Is the Spacelogic Dimmer/Relay 200mA inbuilt Power supply enabled by default?
Hide ShowBy default, the Spacelogic Dimmer/Relay inbuilt 200mA C-Bus Power Supply is disabled. It can be enabled by using the Channel Indicator buttons on the front of the unit.
How to enable/disable C-Bus power supply for 5516RVF

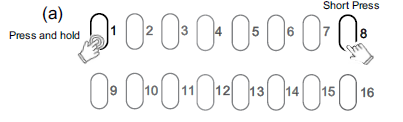

Hide ShowThe integrated C-Bus Power Supply can be enabled or disabled via the front panel by performing a short press on the top right channel button whilst holding down the top left channel button to toggle the enabled state.
By default, the integrated 200 mA C-Bus Power supply is disabled.
The enabled status of the integrated C-Bus power supply is shown on the Unit indicator.
(Green - Enable, Yellow - Disable).
For 5508RVF and 5504RVF

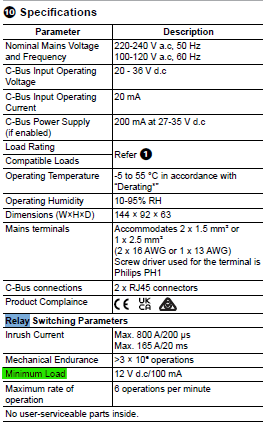

New C-Bus relays 55xxRVFs now have a minimum load rating?
Hide ShowThe minimum load refers to the minimum voltage/current required to maintain the quality of the relay contacts.
The relays are the same as used in the current C-Bus relays so there is no difference in product spec. The datasheet wanted to provide more information to the customer.
