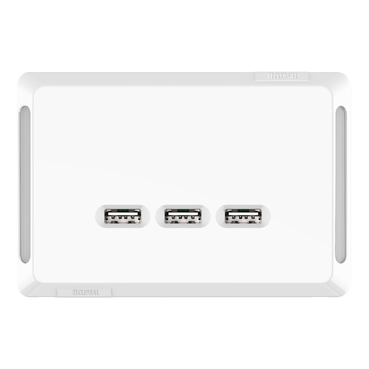

Pro Series USB Charging Station 3 Outlet Type A | Extra White
Item Number: P3043HUSB-XW
The Pro Series 3 Gang USB Type A charging station is both efficient and practical, doing away with those bulky power packs. Designed specifically for commercial buildings, the charging station features windows to let you see through to the circuit identification labels, as well as bevelled edges to deflect impacts.
Specifications
Design
| Range | Pro Series |
|---|---|
| Product or component type | USB charger |
| Colour tint | extra white |
| Surface finish |
|
Physical
| [ue] rated operational voltage | 220/240 V AC 50 Hz |
|---|---|
| Integrated connection type | 3 USB 2.0 type A 5 V DC, maximum load current: 2.1 A |
| Output current | 4.5 A |
| Device mounting | flush |
| Device presentation | complete product |
| Fixing mode | by screws |
| Type of packing | polybag |
| Ambient air temperature for operation | 0...45 °C |
| Ambient air temperature for storage | -5...50 °C |
| Relative humidity | 10...95 % |
| Protection type | short time short-circuit protection |
| Number of terminals | 3 screw terminal |
| Screwdriver shape |
|
| Clamping connection capacity |
|
| Wire stripping length | 16 mm |
| Standards | AS/NZ 3112 |
| Height | 78 mm |
| Width | 38 mm |
| Depth | 38 mm |
| Embedding depth | 35 mm |
| Net weight | 0.094 kg |
| Connections - terminals | screw terminals |
| Product certifications | RCM |
| Electrical insulation class | class II |
| Ik degree of protection | IK08 |
| Ip degree of protection | IP21 |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2403023_V1 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Material
| Material |
|
|---|
