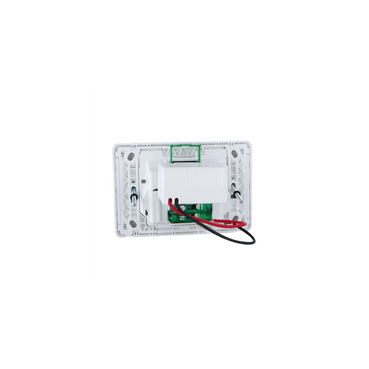

Pro Series Twin Power Point Horizontal Mount,1Ex2USBCHRG, Type A+C, 10A, 250V | Extra White
Item Number: P3025USBAC-XW
Providing options to charge with a USB Type A or a USB Type C cable, the Pro Series Twin Horizontal Power Point with USB outlets offers the gamut of charging options. Perfect for public spaces where you want to offer charging options for patrons, the outlet is designed to be robust and hard wearing.
Specifications
Design
| Range | Pro Series |
|---|---|
| Product or component type | switched socket with USB charger |
| Product brand | Clipsal |
| Surface finish | glossy |
| Surface treatment | untreated |
Physical
| Number of power socket outlets | 2 |
|---|---|
| Type of packing | polybag |
| Quantity per set | set of 10 |
| Switch function | with ON/OFF function |
| Device presentation | complete product |
| Number of rocker | 2 |
| Device mounting | flush |
| Installation direction | horizontal |
| Clamping connection capacity |
|
| Fixing mode | by screws |
| Wire stripping length | 16 mm |
| Height | 78 mm |
| Width | 116 mm |
| Depth | 38 mm |
| Net weight | 94 g |
| Ambient air temperature for operation | 0...45 °C |
| Relative humidity | 10...95 % |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2403023_V1 |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
