Pro Series Twin Power Point Grid Horizontal Mount,1Ex2USBCHRG, Type A+A, 10A, 250V

Pro Series Twin Power Point Grid Horizontal Mount,1Ex2USBCHRG, Type A+A, 10A, 250V

Item Number: P3025USB2G

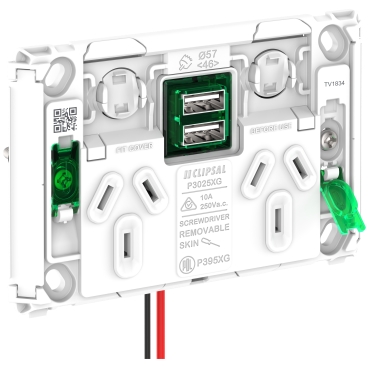

Featuring two USB Type A charging outlets, the Pro Series Horizontal Twin Switched Power Point Grid with Extra Outlet allows charging of smart devices without the need for bulky power packs. Suitable for use in commercial buildings and public places.

Datasheet

Product Dimensions

Width icon

Width112 mm

Height icon

Height72 mm

Depth icon

Depth36 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Pro Series

Product or component type

switched socket

Colour tint

white

Surface treatment

untreated

Physical

Device presentation

mechanism with fixing frame

Outlet poles configuration

2P + E with shutter

Outlet standard

Australian

Device mounting

flush

Number of power socket outlets

2

Number of rocker

2

Range compatibility

Pro Series

Outlet standard description

with earthing contact

Ground lug position

straight 180° position

Fixing mode

by screws

Installation direction

horizontal

Type of packing

polybag

Quantity per set

set of 10

Sale per indivisible quantity

1

Rated current

10 A at 250 V AC 50 Hz

Connections - terminals

3 screw terminals

Screwdriver shape

square drive no 1 (SQ1)|Philips No 2

Clamping connection capacity

1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s)|3 x 4 mm² for rigid or stranded cable(s)

Wire stripping length

16 mm

Height

72 mm

Width

112 mm

Depth

36 mm

Net weight

0.078 kg

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Standards

AS/NZ 3112

Product certifications

RCM

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2403023EN

Circularity profile

N/A

Material

Device composition

2 USB charger

Material

PC (polycarbonate): fixing frame|PP (polypropylene)|POM (polyoxymethylene): shutter|POM (polyoxymethylene): locking bar

Others

Package 1 bare product quantity

1

Outlet standard deviation

Australian/New Zealand

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.6 cm

Package 1 width

7.2 cm

Package 1 length

11.2 cm

Package 1 weight

98.14 g

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0
