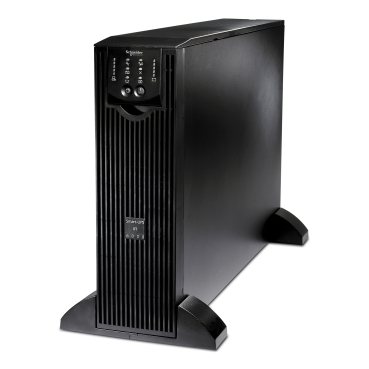

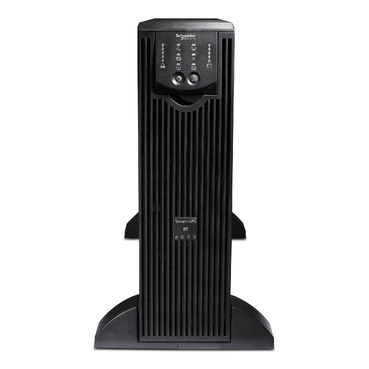

Smart-UPS SR1 On-Line UPS 6000VA, 230V, with pre-installed input/output hardwire kit

Home ProductsNetwork ConnectivityUPSOn-Line UPS

Smart-UPS SR1 On-Line UPS 6000VA, 230V, with pre-installed input/output hardwire kit

Item Number: SR16KXIET

Proven Industrial UPS power protection for control applications and harsh environments.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width13 cm

Height icon

Height43.2 cm

Depth icon

Depth66 cm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

uninterruptible power supply (UPS)

Warranty

2 years repair or replace, optional on-site warranties available, optional extended warranties available

Physical

Rated power in w

4200 W

Provided equipment

  • documentation CD
  • Smart UPS signalling RS-232 cable

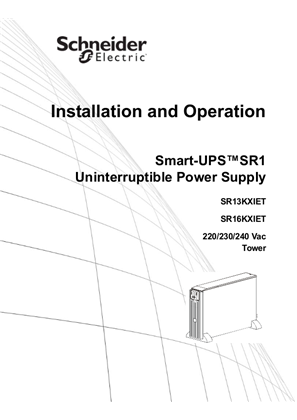

  • user manual

Height

43.2 cm

Width

13 cm

Depth

66 cm

Net weight

54.55 kg

Mounting mode

not rack-mountable

Product certifications

  • C-Tick
  • CE
  • CSA
  • GOST
  • VDE

Standards

  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018

Ambient air temperature for operation

0...40 °C

Ambient air temperature for storage

-15...45 °C

Relative humidity

0...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

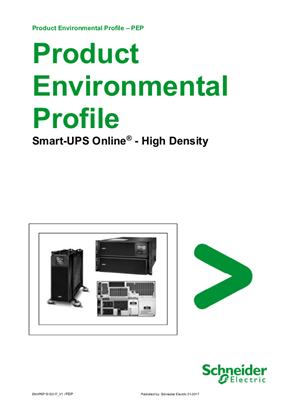

Environmental disclosure

ENVPEP1512017_EN

Circularity profile

ENVEOLI1512017_EN

Others

Commercial status history

  • SESA301466
  • Tue Jul 09 10:08:00 EDT 2024
  • From Import Local
  • From 08 to 19

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Presentation

Proven Industrial UPS power protection for control applications and harsh environments.

Lead time

Usually in Stock

Main input voltage

230 V

Input voltage

  • 220 V
  • 240 V

Output voltage

  • 220 V
  • 240 V

Rated power in va

6000 VA

Number of rack unit

3U

Performance multiplier

1

Value multiplier

1

Mounting location

front

Usb compatible

No

Input voltage limits

160...280 V

Network frequency

50/60 Hz +/- 5 Hz auto-sensing

Bypass type

internal bypass (automatic and manual)

Crest factor

3 : 1

Harmonic distortion

less than 3 %

Graph display

1

Efficiency

92 % (full load)

Additional information

Configurable for 220 : 230 or 240 nominal output voltage

Acoustic level

55 dBA

Heat dissipation

1221 Btu/h

Operating altitude

0...10000 ft

Storage altitude

0...50000 ft

Storage relative humidity

0...95 %

Battery type

lead-acid battery

Battery design life

2 year(s)

Ups design life

3 year(s)

Battery life

3...5 year(s)

Free slots

1

Alarm

alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

34.700 cm

Package 1 width

60.300 cm

Package 1 length

98.000 cm

Package 1 weight

63.640 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

409c68a1-39a6-4e5f-b080-12befe783ad8

Green premium status for reporting

Green Premium product

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Optimized energy efficiency

Energy efficient product

Optimized energy efficiency

Energy efficient product

Take-back

Yes

Take-back

Yes

Product contributes to saved and avoided emissions

No

Removable battery

User replaceable

Removable battery

User replaceable

Minimum percentage of recycled plastic content

0
