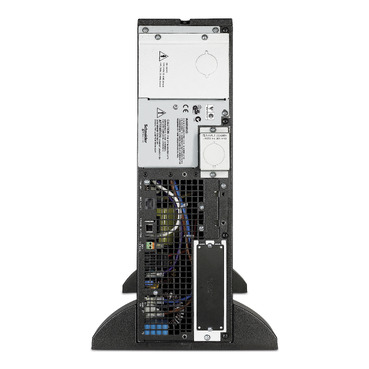

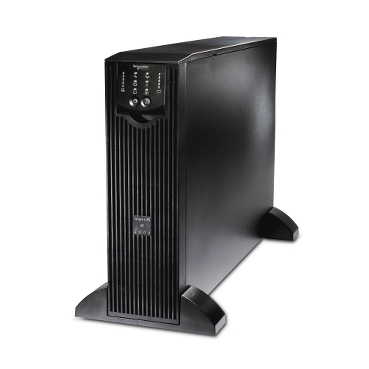

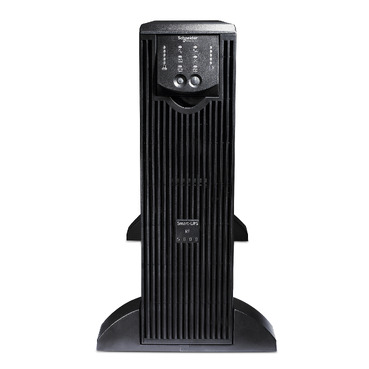

Smart-UPS SR1 On-Line UPS 5000VA, 230V, with pre-installed input/output hardwire kit

Item Number: SR15KDXIET

1 PCE 0

Proven Industrial UPS power protection for control applications and harsh environments.

Where To Buy

Datasheet

Download

Product Dimensions

Width130 mm

Height432 mm

Depth660 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	731304310754	-

Specifications

Design

Product or component type	uninterruptible power supply (UPS)
Warranty	2 years repair or replace, optional on-site warranties available, optional extended warranties available

Physical

Rated power in w	3500 W
Height	432 mm
Width	130 mm
Depth	660 mm
Net weight	54.55 kg
Mounting mode	not rack-mountable
Provided equipment	documentation CD Smart UPS signalling RS-232 cable user manual
Product certifications	C-Tick CE CSA GOST UL 1778 VDE
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0...40 °C
Ambient air temperature for storage	-15...45 °C
Relative humidity	0...95 %
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1512017EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	24
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Presentation	Proven Industrial UPS power protection for control applications and harsh environments.
Main input voltage	230 V
Input voltage	220 V 240 V
Input voltage limits	160...280 V
Network frequency	50/60 Hz +/- 5 Hz auto-sensing
Output voltage	220 V 240 V
Rated power in va	5000 VA
Bypass type	internal bypass (automatic and manual)
Crest factor	3 : 1
Harmonic distortion	less than 3 %
Efficiency	92 % (full load)
Additional information	Configurable for 220 : 230 or 240 nominal output voltage
Free slots	1
Alarm	alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Number of rack unit	3U
Mounting location	front
Usb compatible	No
Performance multiplier	0
Value multiplier	0
Graph display	1
Storage altitude	0...50000 ft
Storage relative humidity	0...95 %
Acoustic level	55 dBA
Heat dissipation	1057 Btu/h
Operating altitude	0...10000 ft
Battery type	lead-acid battery
Number of battery replacement quantity	1
Battery life	3...5 year(s)
Battery design life	2 year(s)
Ups design life	3 year(s)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	98.000 cm
Package 1 width	60.300 cm
Package 1 length	34.700 cm
Package 1 weight	63.640 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	12 578 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	500.8334823824003
Carbon footprint of the manufacturing phase [a1 to a3]	501 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	5.543316043641567
Carbon footprint of the distribution phase [a4]	6 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	12065.533893757825
Carbon footprint of the use phase [b2, b3, b4, b6]	12 066 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	4.883126453228402
Carbon footprint of the end-of-life phase [c1 to c4]	5 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	User replaceable
Total lifecycle carbon footprint	12577.74995528528
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Scip number	409c68a1-39a6-4e5f-b080-12befe783ad8
End of life manual availability	ENVEOLI1512017_EN
Removable battery	User replaceable
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	24
