Back-UPS APC Back-UPS 950VA, 230V, AVR, 4 Australian outlets

Item Number: BX950MI-AZ

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width120 mm

Height160 mm

Depth355 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	731304410751	-

Specifications

Design

Range of product	Back-UPS
Product or component type	uninterruptible power supply (UPS)
Warranty	2 years repair or replace

Physical

Rated power in w	520 W
Number of cables	1
Height	160 mm
Width	120 mm
Depth	355 mm
Net weight	6.1 kg
Mounting mode	not rack-mountable
Mounting mode	tower

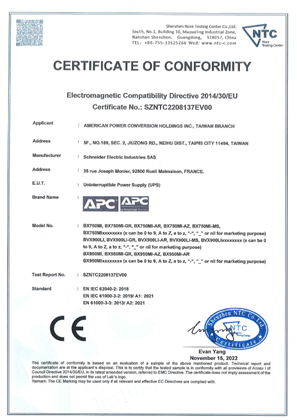

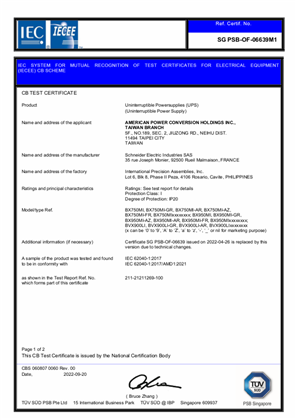

Product certifications	CE CB RCM
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0...40 °C
Ambient air temperature for storage	-15...40 °C
Ip degree of protection	IP20
Relative humidity	0...95 % non-condensing
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1712010_V4
Eu rohs directive	Compliant

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Package 1 bare product quantity	1
Legacy weee scope	In
Weee label	N/A
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	24
Main input voltage	230 V AC 1 phase
Cos phi	0.54
Input voltage limits	140...300 V
Network frequency	50/60 Hz +/- 5 Hz auto-sensing
Rated power in va	950 VA
Type of usb power supply	none
Battery type	lead-acid internal included
Control panel	LED Status display with on line : on battery
Ups connectivity	none
Cable length	4 ft
Usb compatible	Yes
Graph display	1
Storage altitude	0...3000 m
Storage relative humidity	0...95 % non-condensing
Acoustic level	40 dBA
Operating altitude	0...3000 m
Battery type	lead-acid battery
Battery voltage	12 V
Battery life	3...5 year(s)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	25 cm
Package 1 width	43 cm
Package 1 length	19.7 cm
Package 1 weight	6.6 kg
Scc14	10731304410758
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	440 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	48.1004325748
Carbon footprint of the manufacturing phase [a1 to a3]	48 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.5186723495
Carbon footprint of the distribution phase [a4]	0.5 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	391.1792934309
Carbon footprint of the use phase [b2, b3, b4, b6]	391 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.4570271272
Carbon footprint of the end-of-life phase [c1 to c4]	0.5 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Take-back	Yes
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	440.2554254824
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	e7333b0a-8d2c-4a40-a279-6eb5db3419eb
End of life manual availability	ENVEOLI1712010_EN
Take-back	Yes
Warranty (in months)	24
