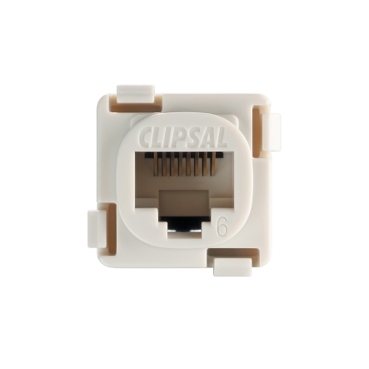

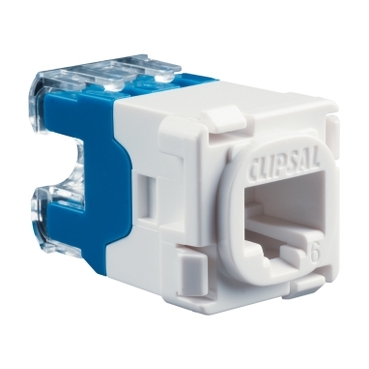

Clipsal Actassi Modular Socket Category 6, UTP, RJ45 | White Electric
Item Number: 30RJ45SMA6-WE
Specifications
Design
| Product brand | Clipsal |
|---|---|
| Range of product | Actassi |
| Product or component type | modular jack |
Physical
| Connector type | 110 RJ45 |
|---|---|
| Communication network category | 6 |
| Fixing mode | special tool |
| Awg gauge | AWG 24...AWG 22 |
| [in] rated current | 1.5 A |
| Depth | 35 mm |
| Width | 23 mm |
| Height | 23 mm |
| Environmental disclosure | ENVPEP111057EN |
| Eu rohs directive | Compliant |
Material
| Material | phosphor bronze |
|---|
Documents & downloads
-
All
-
Technical Data Catalogues
-
Specification Guide
-
Declaration of Conformity (Sustainability)
30RJ45SMA6-BU EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
30RJ45SMA6-BU EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
30RJ45SMA6-CM EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
30RJ45SMA6-CM EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
30RJ45SMA6-WE EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
30RJ45SMA6-WE EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
Frequently Asked Questions
What is the part number for Saturn ZEN series two gang plate with Cat6 data mechanisms?
Hide ShowSaturn ZEN series two gang plate with Cat6 data mechanisms can be built using the below part numbers:
Z4032VH - Grid and Plate Assembly 2 Gang Saturn ZEN
+
2 off 30RJ45SMA6 - 30 Series Cat6 UTP Connector Mechanisms, Modular socket, 568A, RJ45.
For further information, please visit the below links:
https://www.clipsal.com/Trade/Products/ProductDetail?catno=Z4032VH
https://www.clipsal.com/Trade/Products/ProductDetail?catno=30RJ45SMA6
