TeSys GV2 Mounting Bracket IEC Contactors

Item Number: LAD311

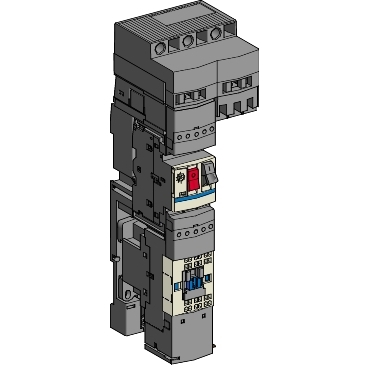

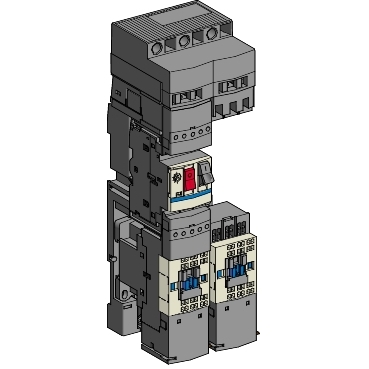

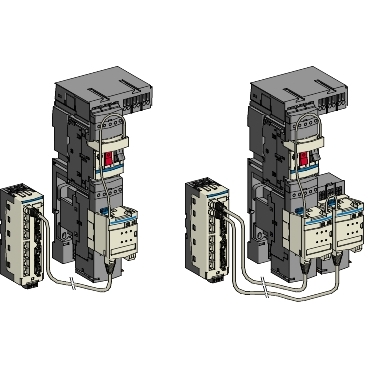

TeSys D mounting plate, for motor starter assembly made with a motor circuit breaker GV2 or fuse carrier LS1D32 and a contactor LC1D09-D38. It permits to have a compact motor starter assembly with front faces aligned devices. The plate is to be fixed on 2 x 35mm DIN-rails by clip-on. Other accessories (terminals blocks, busbars, combination blocks) for motor starter assembly are available (to be ordered separately).

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • TeSys fuse-disconnector
  • TeSys GV2
  • TeSys Deca

Range

TeSys

Product or component type

adaptor plate

Product compatibility

  • LS1D32
  • LC1D09...D38

Warranty

18 months

Physical

Net weight

0.04 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

acc

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Package 3 bare product quantity

90

Package 4 bare product quantity

360

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

LAD

Accessory / separate part category

mounting accessory

Compatibility code

LAD

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.000 cm

Package 1 width

25.500 cm

Package 1 length

13.000 cm

Package 1 weight

115.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

8.000 cm

Package 2 width

25.500 cm

Package 2 length

26.000 cm

Package 2 weight

1.264 kg

Unit type of package 3

S04

Number of units in package 3

90

Package 3 height

30.000 cm

Package 3 width

40.000 cm

Package 3 length

60.000 cm

Package 3 weight

12.198 kg

Sustainable packaging

Yes

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
