TeSys Mini-Vario Auxiliary contact block 1 NC early-break+1 NO late-make

Item Number: VZ7

1 PCE 0

Where To Buy

Datasheet

Download

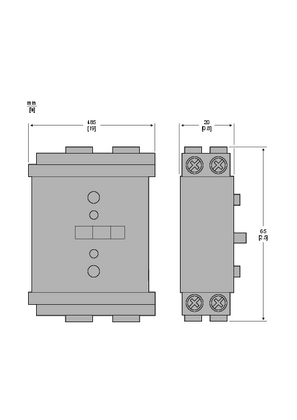

Product Dimensions

Width20 mm

Height65 mm

Depth48.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110551969	-

Specifications

Design

Range	TeSys
Product or component type	auxiliary contact block
Product compatibility	V2 V5 V02 V6 V1 V4 V01 V0 V3
Warranty	18 months

Physical

[ue] rated operational voltage	690 V AC 50/60 Hz
Mechanical durability	100000 cycles
Electrical durability	30000 cycles DC-11 100000 cycles AC-15
Connections - terminals	screw clamp terminals 2 cable(s) 0.75-1.5 mm² - flexible - with cable end screw clamp terminals 2 cable(s) 1-2.5 mm² - solid
Height	65 mm
Width	20 mm
Depth	48.5 mm
Net weight	0.05 kg

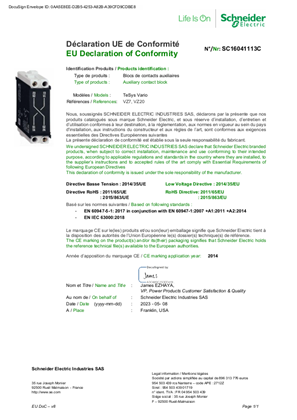

Standards	IEC 60947-5

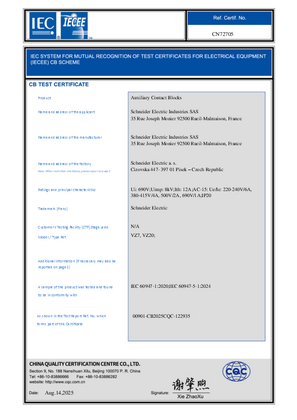

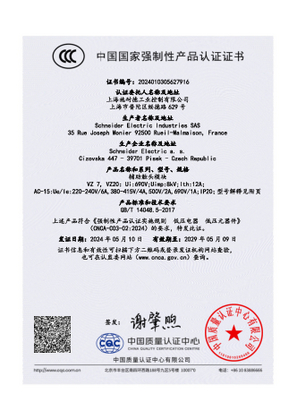

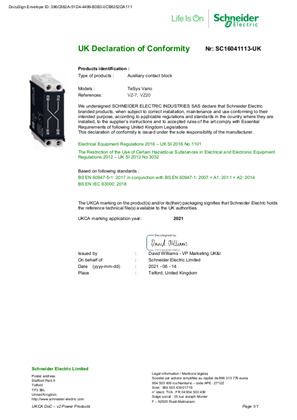

Product certifications	GL CSA UL UKCA
Ip degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-20...50 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2211001EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Package 1 bare product quantity	1
Package 2 bare product quantity	69
Legacy weee scope	In
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Average percentage of recycled plastic content	0 %
	At least in Europe
Device short name	VZ
Performance level	high performance
Contacts type and composition	1 NO + 1 NC
Contact operation	late-make 1 NO early-break 1 NC
Network type	AC DC
Network frequency	50/60 Hz
Mounting location	left right
[uimp] rated impulse withstand voltage	8 kV
[ith] conventional free air thermal current	12 A
[ithe] conventional enclosed thermal current	10 A
Tightening torque	0.7...0.7 N.m - on screw clamp terminals
Compatibility code	auxiliary contact
Protective treatment	TC
Fire resistance	960 °C conforming to IEC 60695-2-1
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.500 cm
Package 1 width	3.700 cm
Package 1 length	9.000 cm
Package 1 weight	52.000 g
Unit type of package 2	S02
Number of units in package 2	69
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	3.931 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.33685
Carbon footprint of the manufacturing phase [a1 to a3]	0.3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0077414
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.02626
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.49937
Carbon footprint of the use phase [b2, b3, b4, b6]	0.5 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.13304
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Halogen free product
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1.0032614
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	65661eb0-9ea7-4d52-b0a4-16b981f28f63
Halogen-free status	Halogen free product
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
