Trusted by Australians since 1920
Clipsal by Schneider Electric has been helping to make Australian homes safer for last 100 years. We were one of the pioneers of the Residual Current Device (or more commonly known as “Safety Switch”) into Australian market.
The Clipsal Resi MAX™ and MAX9™ ranges help to provide circuit protection solution depending on type of project.
MAX9 range helps to provide the ultimate solution that elevates efficiency, safety and professionalism of residential switchboard to the next level.
Resi MAX range helps to provide a simple, convenient and reliable solution for everyday circuit protection needs.
Clipsal MAX9
Next-Level Residential Switchboards
Deliver your best switchboard installation on every job, every time.
MAX9 includes MAXBAR, a busbar that installs up to 15 times faster than cables for feeding RCBOs.
Future-ready, MAX9 features type A RCDs and RCBOs, leading the way with Arc Fault Detection Device (AFDD) technology.
Delivering best-in-class performance, MAX9 boasts a 100A rated system, products built for tough Aussie conditions, and durable breakers.
MAXBAR - One bar delivers it all
MAX9 range brings in unparalleled installation speed with MAXBAR - the next generation of busbar. MAXBAR helps to achieve installation speed of up to 15 times faster than using cables for feeding the RCBOs. It also helps to provide you complete installation flexibility as a MAXBAR can connect the main switch directly to any type of Clipsal RCBO - SLIM, 2 module, 3 Phase and even AFDD.
Others see electricians as tradies only, we see them as a professional artists when it comes to switchboard installation. Therefore, we understand the importance of a professional finish inside a switchboard - it separates the experts from the cowboys. MAXBAR helps to achieve a perfectly clean installation inside a switchboard as no cables are needed for feeding RCBOs.
Clipsal - Residential Circuit Protection
hide show
Consumer Switchboards
A wide range of plastic enclosures, available in flush- and surface-mounted versions and different aesthetics to suit varying customer preferences.

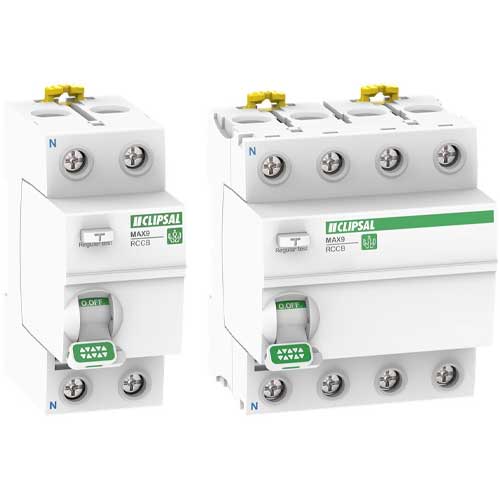

RCD (safety switch)
MAX9 RCDs are type A and future ready for upcoming regulation changes. Type A RCDs detect both a.c. and pulsating d.c. residual currents and help to provide additional safety.
MCB (Miniature Circuit Breaker)
Complete range with 1P, 2P and 3P MCBs ranging from 1A to 63A. All MCBs have short circuit breaking capacity of 6kA. Option of 63A MCB with red toggle for applications that need MCB as main incomer.
Contactors
1 & 2 pole devices, ideal for remote switching & control of circuits like hot water services, lighting, heating, aircon, pool pumps.
Linkbars
Panel mounted accessories provide complete solution from active,neutral & earth link bars to single connectors, blocks & strips in varying sizes.
DIN Mounted Socket Outlets
Perfect for temporary power supply on building sites & additional outlets in switchboards. Available in single or double gang, with & without switch
MAXBAR
Enjoy Complete solution with MAXBAR ranging from pole fillers to circuit labels, through to pin type busbars for single/multi-phase installs.
Clipsal ResiMAX
For everyday circuit protection needs
Enhanced Electrical Protection with SLIM RCBOs and MCBs
The Clipsal Resi MAX™ range offers a variety of consumer switchboards, meter boxes, SLIM RCBOs, miniature circuit breakers (MCB), Surge protection device (SPD), safety switches (RCD), comb busbars and accessories.
SLIM RCBOs and MCBs have short circuit breaking capacity rating of 4.5kA, it achieves a 6kA rating when combined with the HRC service fuse of up to 100A rating.

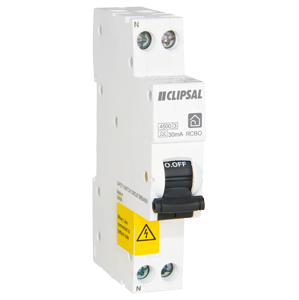

Slim RCBO
Combine MCB & RCD (safety switch) function in an 18 mm wide SLIM device. Save installation space in the board, improve installation time and easier fault finding.

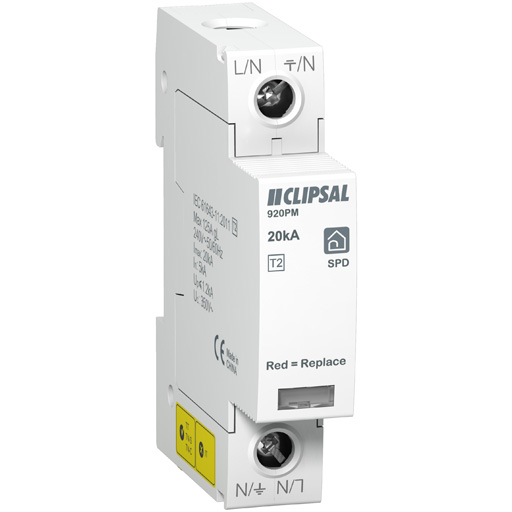

Surge Protection Devices (SPD)
Helps to protect your home appliances from external surges due to indirect lightning strike or defective switching operation in power supply.
Miniature Circuit Breakers
Helps to protect electrical cables from overloading & short circuits. Comes with 6 to 63A current rating.

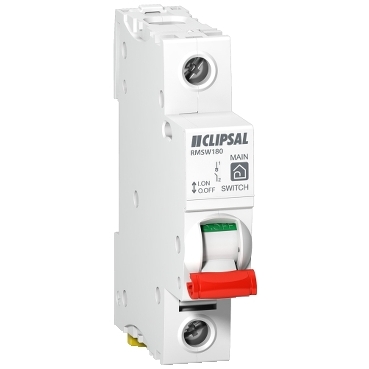

Isolator Switch
One single pole switch to cover your everyday residential needs for power isolation.
Consumer Switchboards
Attractive, economical consumer switchboards designed with the electrical contractor in mind. Available in flush- and surface-mounted versions.

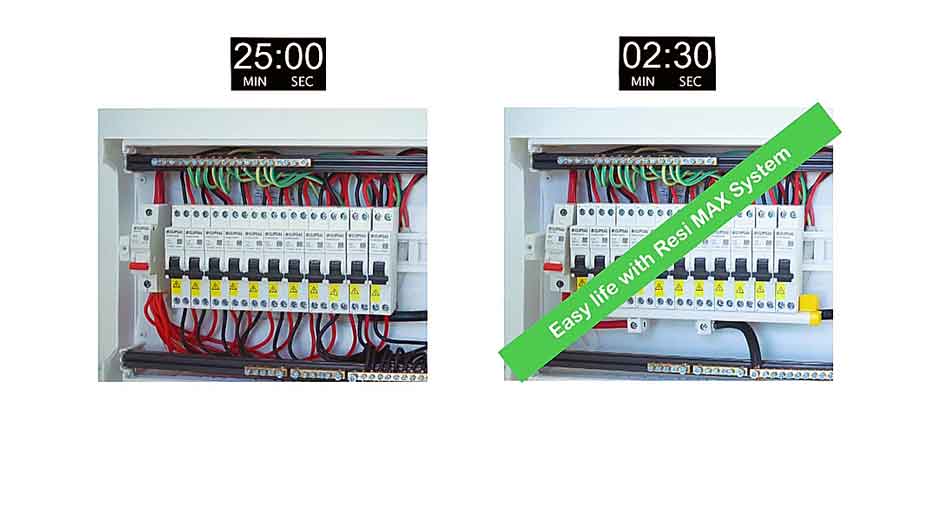

Busbars
Helps to increase installation speed by up to 10 times, reduce wiring effort and help to reduce chances of hotspots due to loose cable connections.
Meterboxes
Designed to meet Australian Standards with solutions tailored for all states. Generous wiring room & well-located knockouts allow for a quick fit-off.
