Harmony XB5R Wireless and batteryless transmitter mushroom head 40mm, plastic, black, 22mm, spring return

Item Number: ZB5RTC2

1 PCE 0

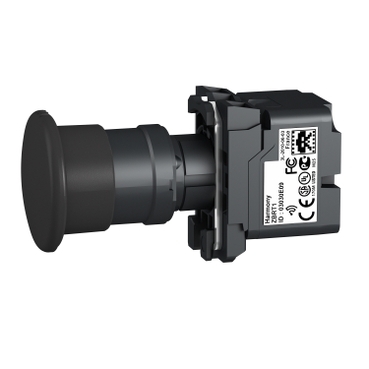

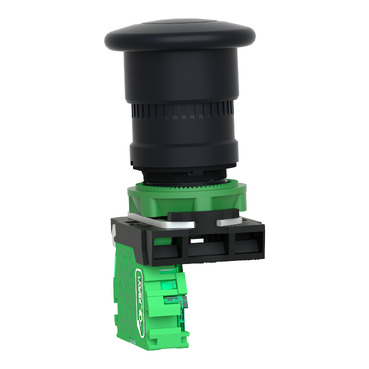

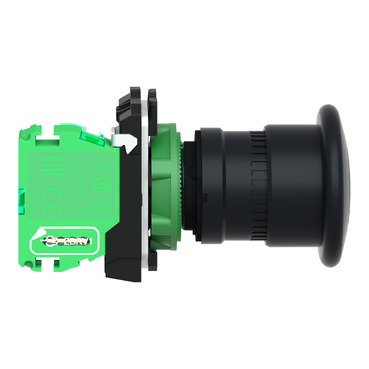

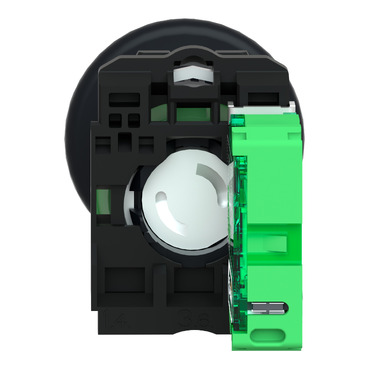

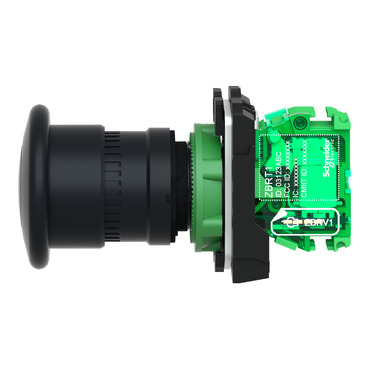

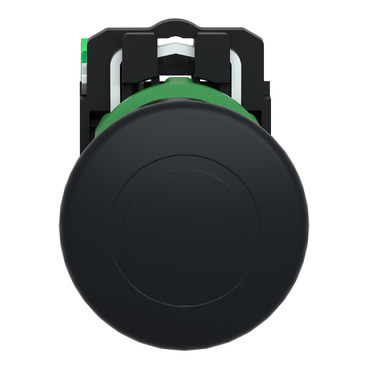

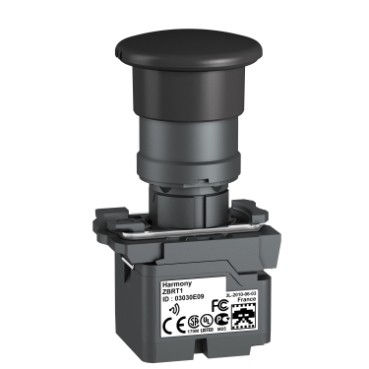

This wireless and batteryless push-button is part of the range Harmony XB5R plastic and XB4R metal. It features a transmitter fitted with a fixing collar and a spring return black mushroom head, diameter 40mm. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 55g.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480571763	-

Specifications

Design

Range of product	Harmony XB5
Product or component type	wireless and batteryless transmitter
Warranty	18 months

Physical

Transmission frequency	2405 MHz
Number of channels	16
Embedding depth	43 mm
Standards	CSA C22.2 No 14 IEC 60947-1 IEC 60947-5-1 UL 508
Communication port protocol	Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4
Fixing mode	fixing nut beneath head: 2-2.4 N.m
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Relative humidity	95 % at -40...70 °C without condensation
Ip degree of protection	IP66 (front face) conforming to IEC 60529 IP67 (front face) conforming to IEC 60529 IP69 (front face) conforming to IEC 60529 IP69K (front face) conforming to IEC 60529
Ik degree of protection	IK03 conforming to IEC 50102
Mechanical durability	1000000 cycles
Product certifications	BT 2006/95/EC CCC CSA GOST UL C-Tick
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2303008EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Device composition	ZB5RZC2 ZBRT1

Others

Package 1 bare product quantity	1
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	XB5R
Bezel material	dark grey plastic
Fixing collar material	plastic
Mounting diameter	40 mm
Level or class	5M00G7W
Antenna type	omnidirectional
Shape of signaling unit head	round
Type of operator	spring return push-button with transmitter
Operator profile	black mushroom Ø 40 mm, unmarked
Max power consumption in w	1 mW
Modulation technique	O-QPSK
Bandwidth	5 MHz
Antenna gain	0 dBi
Cad overall height	42.75 mm
Cad overall width	27.8 mm
Cad overall depth	28.8 mm
Operating travel	4.3 mm (total travel)
Operating force	10 N C/O changing electrical state
Mechanical robustness	free fall resistance 1000 mm conforming to IEC 60068-2-32
Radio agreement	ANATEL ARIB T66 FCC ICASA RSS
Maximum sensing distance	100 m in free field 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Acquisition time	2 ms
Response time	< 2 ms
Emission power	3 mW
Customizable	no
Customizable	0
Shock resistance	25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Vibration resistance	+/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
Electromagnetic compatibility	electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
Directives	2004/108/EC - electromagnetic compatibility 1999/5/EC - R&TTE directive
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4 cm
Package 1 width	5.2 cm
Package 1 length	12.4 cm
Package 1 weight	68 g
Unit type of package 2	S02
Number of units in package 2	42
Package 2 height	15 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	3.333 kg
Product repair index - dam document id	XB4BS8442-ENVREPAIR-A-EN
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.7472356688
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0237454777
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0201892994
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.1013859873
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Product repair index	A
Removable battery	N/A
Total lifecycle carbon footprint	1.8925564331
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	e1d47e89-a4e1-4f33-a0c0-2fe5c9179aa4
Product repair index	A
End of life manual availability	ENVEOLI2303008EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
