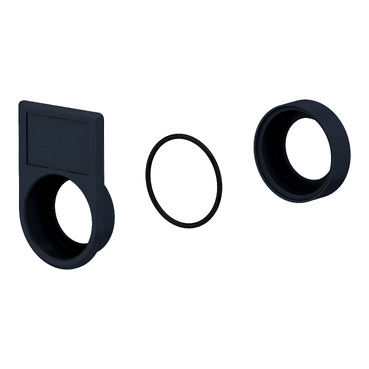

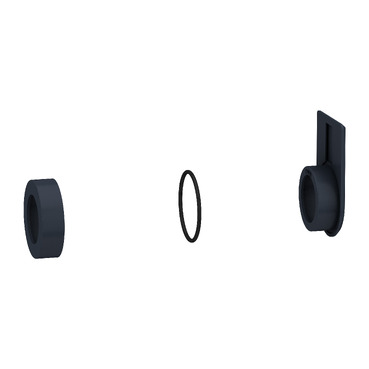

Harmony XB5 Flush mounting kit Ø30 for selector switches and illuminated push-buttons Ø22, plastic, 2-line legend

Home ProductsIndustrialHarmonyFlush mounting kit

Harmony XB5 Flush mounting kit Ø30 for selector switches and illuminated push-buttons Ø22, plastic, 2-line legend

Item Number: ZB5AZ026

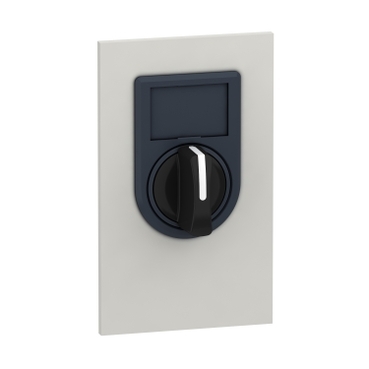

This Harmony XB5, flush mounting kit is compatible with Harmony XB5 illuminated push-buttons and selector switches and has a 2-line legend. It allows the installation of devices on control panels to be more resilient to side impacts due to passing objects, tools, opening doors. It allows new aesthetic style for your machines thanks to the flush design. It provides clear labelling area for simple indication of the button function.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB5

Product or component type

flush mounting kit

Product compatibility

  • ZB5RZA0
  • ZB5AK
  • ZB5AD.9
  • ZB5AA.6
  • ZB5AW
  • ZB5RTA
  • ZB5AJ
  • ZB5AH..3
  • ZB5AD
  • ZB5AD.8

Physical

Ip degree of protection

  • IP66 (front face) conforming to IEC 60529
  • IP69 (front face) conforming to IEC 60529
  • IP69K (front face) conforming to DIN 40050-9

Ik degree of protection

IK03 conforming to IEC 50102

Quantity per set

set of 1

Net weight

0.009 kg

Reach free of svhc

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

Others

Package 1 bare product quantity

1

Legacy weee scope

In

Package 2 bare product quantity

80

Average percentage of recycled plastic content

0 %

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Accessory / separate part category

mounting and fixing accessory

Accessory / separate part destination

  • selector switch with high bezel
  • illuminated push-button with high bezel

Main colour tint

black

Mounting diameter

30.5 mm

Customizable

0

Customizable

no

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.500 cm

Package 1 width

4.300 cm

Package 1 length

5.200 cm

Package 1 weight

17.000 g

Unit type of package 2

S02

Number of units in package 2

80

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

1.750 kg

Sustainable packaging

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
