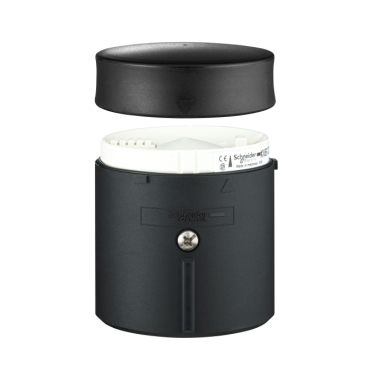

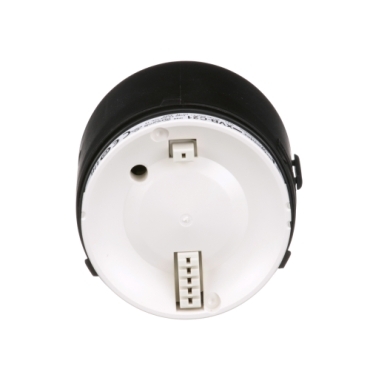

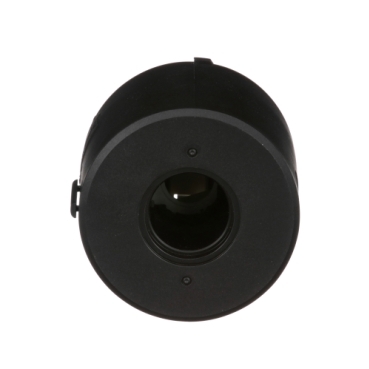

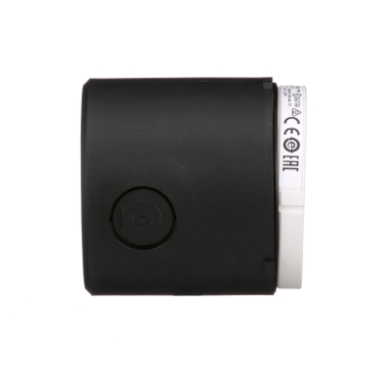

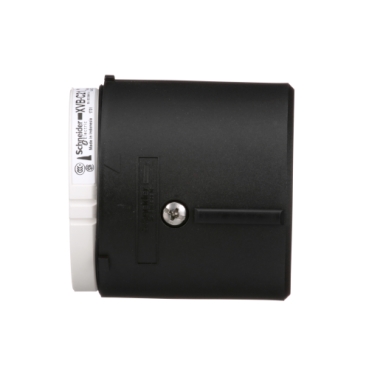

Harmony XVB Base unit and cover for modular tower lights plastic, black, 70mm, bottom entry, side cable entry

Home ProductsIndustrialHarmonyBase unit and cover for modular tower lights

Harmony XVB Base unit and cover for modular tower lights plastic, black, 70mm, bottom entry, side cable entry

Item Number: XVBC21

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVB Universal

Product or component type

base unit with cover

Product destination

banks without flash discharge tube unit

Warranty

18 months

Physical

Fixing mode

direct or tube fixing

Cable entry

bottom or side entry

Net weight

0.19 kg

Product certifications

  • CCC
  • EAC
  • CSA C22-2 No 14
  • UL 508

Standards

IEC 60947-5-1

Ambient air temperature for storage

-40...70 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP070907EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

  • glass reinforced polyamide: base unit
  • polycarbonate: cover unit

Others

Important message

XVB is being substituted by XVB7 as complete range; XVB and XVB7 modules are not interoperable with one another.

Package 2 bare product quantity

36

Package 3 bare product quantity

288

Package 1 bare product quantity

1

Legacy weee scope

Out

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Component name

XVBC

Mounting diameter

70 mm

Electrical connection

1 connector for standard input

Assembly style

customer assembly, up to 5 units

Terminals description iso n°1

  • (GND)GROUND
  • (COM-1)PW
  • (COM-4)PW
  • (COM-3)PW
  • (COM-5)PW
  • (COM-2)PW

Protective treatment

TC

Nema degree of protection

Type 4X conforming to UL (indoor)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.500 cm

Package 1 width

10.000 cm

Package 1 length

9.500 cm

Package 1 weight

206.000 g

Unit type of package 2

S03

Number of units in package 2

36

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

8.173 kg

Unit type of package 3

P06

Number of units in package 3

288

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

71.516 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

3 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.987018268824929

Carbon footprint of the manufacturing phase [a1 to a3]

2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.4595359210737433

Carbon footprint of the distribution phase [a4]

0.5 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0011791549036192868

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.4048577744182819

Carbon footprint of the end-of-life phase [c1 to c4]

0.4 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

2.8525911192205733

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

91020e1b-4a08-4f42-b464-aa95672e6762

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
