Clipsal Fire Tek Smoke Alarm Surface Mounting Base 220-240 V a.c. Mains Power, Remote Test/Hush Function

Back to Accessories Home Smoke Alarms Accessories

Clipsal Fire Tek Smoke Alarm Surface Mounting Base 220-240 V a.c. Mains Power, Remote Test/Hush Function

Clipsal Fire Tek Smoke Alarm Surface Mounting Base 220-240 V a.c. Mains Power, Remote Test/Hush Function

Item Number: 755RB

755RB helps to integrate Clipsal smoke alarms with devices like lights & sirens. This functionality is offered through a changeover, voltage free contact and remote test/hush through momentary pushbuttons. Relay can be configured to operate only when the local alarm is activated or when any connected alarm activates.

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all
Home owner checking their fire alarm

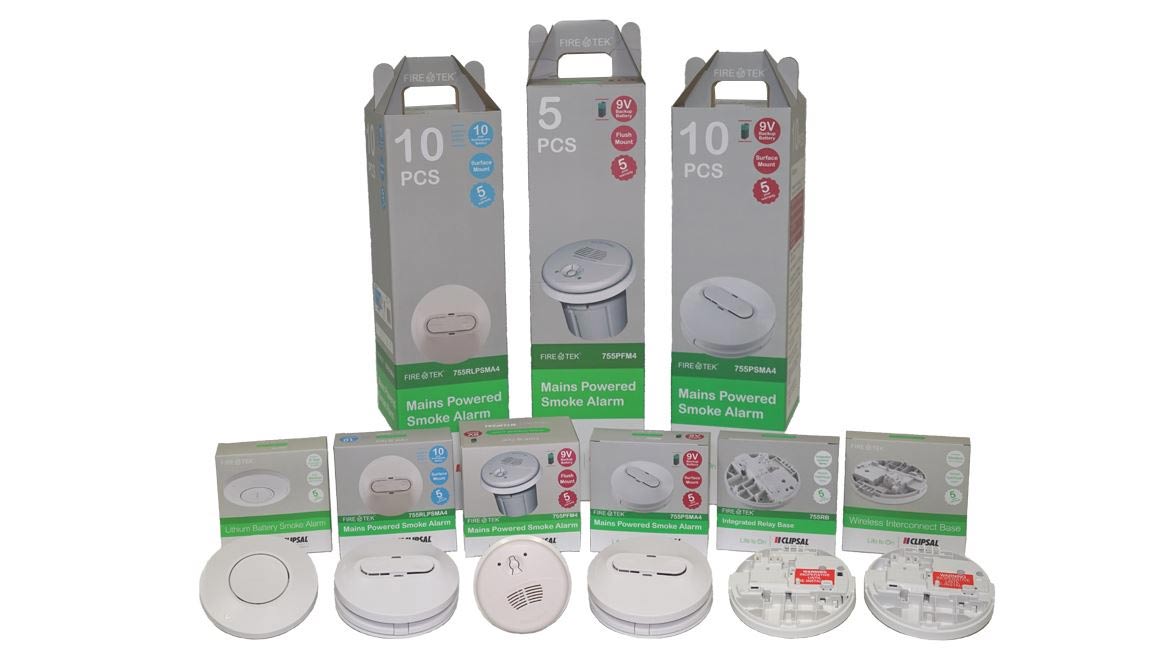

Clipsal Firetek group shot of products and packaging
dimensions
Home owner checking their fire alarm
Clipsal Firetek group shot of products and packaging
dimensions

Features

  • Photoelectric detection technology for early detection and warning from hazardous smoke and fire
  • Includes surface-mount, low-profile and flush-mounted options
  • Optional mounting bases for wireless interconnect or control of third party devices, with remote test/hush input option

Features

  • Combine quality with style, to complement any interior décor and provide superior protection
  • Mains-powered, 220-240V AC or lithium battery powered options
  • Rechargeable lithium battery backup option with surface-mount alarms

Features

  • Fast and easy installation and maintenance
  • Meet all relevant Australian Standards and are ActiveFire listed to comply with the Building Code of Australia

Specifications

Design

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

X

Environmental Disclosure

ENVPEP1907002EN

Circularity Profile

ENVEOLI1907002EN

Others

Package 1 Bare Product Quantity

1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.5 cm

Package 1 Width

15.0 cm

Package 1 Length

14.5 cm

Package 1 Weight

165.0 g
Show all specifications

Frequently Asked Questions

hide show

What size relay is in the 755RB?

The 755RB has a 2A relay.

Some of the key features are:
  • Integral 2A Isolated voltage free changeover relay
  • Control/activate third party devices (i.e. lighting, security, or home automation systems)
  • Dry contact input for remote test/hush functions from a momentary switch
  • Suitable for use with 755PSMA2 and 755RLPSMA2 smoke alarms

Please go to the following links below and check under the Documentation Tab for more information.

Australia - https://www.clipsal.com/products/detail?CatNo=755RB&itemno=755RB&backto=/search?q=755RB&tab-document-1=0
New Zealand - https://www.pdl.co.nz/products/detail?CatNo=755RB&itemno=755RB&backto=/search?q=755RB&tab-document-1=0

What is the warranty period for the 755 series smoke alarms?

The 755 series smoke alarms have a 5 year warranty period


What is the function of the local/global switch on 755PSMA2 and 755RLPSMA2?

GLOBAL / LOCAL RELAY SETTING
Both the 755PSMA2 and 755RLPSMA2 smoke alarms have a ‘Global / Local’ switch located on them (see the diagram below). This switch is only used for operation with the 755RB
relay mounting base.
• When the ‘Global / Local’ switch is set to ‘Local’, only activation of the physically connected alarm will cause the relay to operate.
• When the ‘Global / Local’ switch is set to ‘Global’, activation of any smoke alarm that is interconnected with the base causes the relay to operate.
• The default setting is ‘Global’.
For further information, please visit:
https://www.clipsal.com/Trade/Products/ProductDetail?catno=755PSMA2
https://www.clipsal.com/Trade/Products/ProductDetail?catno=755RLPSMA2
https://www.clipsal.com/Trade/Products/ProductDetail?catno=755RB



Is there a device that turns my lights on when my smoke alarm goes on?

Yes, if you have a 755PSMA4, you can use the 755RB Base which has a set of built in contacts or you can use a 756 Isolation unit which also carries out the same task.

755PSMA4

Please go to the website via the following links below and check under the Documentation Tab for more information.

Australia - https://www.clipsal.com/products/detail?CatNo=755PSMA4&itemno=755PSMA4&backto=/search?q=psma4&tab-document-1=0
New Zealand - https://www.pdl.co.nz/products/detail?CatNo=755PSMA4&itemno=755PSMA4&backto=/search?q=755PSMA4&tab-document-1=0#

755RB


Please go to the website via the following links below and check under the Documentation Tab for more information.

Australia - https://www.clipsal.com/products/detail?CatNo=755RB&itemno=755RB&backto=/search?q=755RB&tab-document-1=0
New Zealand - https://www.pdl.co.nz/products/detail?CatNo=755RB&itemno=755RB&backto=/search?q=755RB&tab-document-1=0

What is the replacement for 755RLPSMA2, smoke alarm with rechargeable lithium battery?

The replacement is a 755RLPSMA4. It is a Photoelectric, Surface Mount smoke alarm,  240V, with rechargeable lithium battery backup, Gen 4 – AS3786:2014 compliant.

Key Features

  • Modern design with easy to use test/hush button
  • Certified and ActivFire listed to AS3786:2014
  • Sealed-in rechargeable lithium backup battery
  • Easy installation and maintenance
  • Quality optical chamber with stainless steel insect screen
  • Wired interconnect feature (up to 40 alarms), compatible with all 755 Series FireTek smoke alarms
  • Optional integral isolated relay (755RB) or wireless interconnect (755RFB) mounting bases
  • Backward compatible with 755PSMA/2, 755RLPSMA2 and 755SMA smoke alarm surface mounting bases
  • Robust digital design
For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?CatNo=755RLPSMA4
755RLPSMA4
Firetek group shot

Range

Clipsal's Fire Tek range helps protect the most valuable assets; family, friends and the home.

They are backed by the SAI Global 5 ticks certification of quality, offering robust designs for reliability, ensuring early detection and warning from hazardous smoke and fire.

The Australian Building Code mandates all new homes must have AS3786:2014 compliant smoke alarms installed, interconnected and hard wired to mains power.

By having Fire Tek's smoke alarms installed, you will have the best chance of escaping the devastating effects of a house fire
