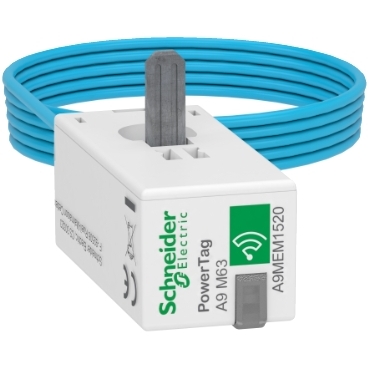

PowerTag Energy sensor PowerTag Monoconnect 63A 1P+Wire top and bottom position

Item Number: A9MEM1520

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width18 mm

Height16.5 mm

Depth43 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480909122	-

Specifications

Design

Range	PowerLogic
Product or component type	energy sensor
Market segment	buildings: breaker voltage monitoring buildings: cost allocation buildings: overload alarm
Product destination	switchboard

Physical

Range compatibility	Acti9 Acti9 iKQE RCBO Multi9 Multi9 C60 Multi9 Multi9 ID Multi9 Multi9 C32N Multi9 Multi9 C65 Acti9 Acti9 iID Acti9 Acti9 iID K Acti9 Acti9 iK60 Acti9 Acti9 iKQ Acti9 Acti9 K60 Acti9 Acti9 Reflex iC60 Acti9 Acti9 iC65 Acti9 Acti9 DT60 Acti9 Acti9 iC60 single terminal
Mounting support	on circuit breaker
Mounting mode	by screws (terminals)
[ue] rated operational voltage	200...240 V AC, +/- 20 %
Standards	IEC 61557-12 IEC 61010-1 IEC 61010-2-030 IEC 61326-1 ETSI EN 300 328 ETSI EN 301 489-1
Product certifications	IEC DNV Marine
Height	16.5 mm
Width	18 mm
Depth	43 mm
Net weight	16.4 g
Ambient air temperature for operation	-25...60 °C
Ambient air temperature for storage	-40...85 °C
Ip degree of protection	IP20 conforming to IEC 60529
Ik degree of protection	IK05
Relative humidity	0...95 % at 45 °C conforming to IEC 60721...3-3
Environmental characteristic	dustproof class 3S3 conforming to IEC 60721-3-3 salt mist class 3C2 conforming to IEC 60721-3-3 indoor use
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2201022EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Certification number	DC-E-S26-061.6 - IRAM
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	48
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	PowerTag A9 M63
Poles description	1P
Max current	63 A
[ib] basic current	10 A
Starting current	40 mA
Saturation current	130 A
Product specific application	load monitoring overload alarm cost allocation circuit monitoring energy management
Concentrator compatibility	EcoStruxure Panel Server Entry EcoStruxure Panel Server Universal EcoStruxure Panel Server Advanced Wiser hub generation 2 Acti9 Smartlink SI B Acti9 Smartlink SI D Acti9 PowerTag Link Acti9 PowerTag Link HD
Type of measurement	voltage power factor active energy current active power
Accuracy class	class 1 current conforming to IEC 61557-12 class 0.5 voltage conforming to IEC 61557-12 class 1 active power conforming to IEC 61557-12 class 1 active energy conforming to IEC 61557-12 class 1 power factor conforming to IEC 61557-12
Mounting location	top or bottom
Event management	voltage loss with measured current at voltage loss
Transmission support medium	radio frequency 2.4-2.4835 GHz conforming to IEEE 802.15.4
Emission power	10 mW
Form factor	monoconnect
Electrical connection	connector tooth and wire
Cable cross section	1 rigid cable 1.5...16 mm² 2 stranded cable 1.5...2.5 mm² 2 rigid cable 1.5...2.5 mm² 1 stranded cable 1.5...16 mm²
Cable length	1 m
Cable composition	1 x 0.33 mm²
Network frequency	50 Hz 60 Hz
Power consumption in va	1 VA
Compatibility code	PowerTag A9 M63
Quality labels	CE
Directives	2014/53/EU - radio equipment directive
Operating altitude	0...2000 m
Overvoltage category	III conforming to IEC 61010-1
Measurement category	category III conforming to IEC 61010-2-030
Pollution degree	3
Vibration resistance	3M4 conforming to IEC 60721-3-3
Electromagnetic compatibility	industrial electromagnetic environment conforming to IEC 61326-1 radiated EMC conforming to ETSI EN 301 489-17 electromagnetic emission conforming to IEC 62311
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.000 cm
Package 1 width	6.000 cm
Package 1 length	8.500 cm
Package 1 weight	43.000 g
Unit type of package 2	S02
Number of units in package 2	48
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	2.426 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	14 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.8312142857
Carbon footprint of the manufacturing phase [a1 to a3]	0.8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0058060286
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0008872714
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	13.4472
Carbon footprint of the use phase [b2, b3, b4, b6]	13 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.0194072143
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Energy efficiency optimized	False
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	14.3045148
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	49e3d962-6d38-466e-8617-c31cb897e71c
End of life manual availability	ENVEOLI2201022
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
