MAX9 Switchboard Metal Back Plate Type 2, 1 Row

Item Number: E2115FBP

1 PCE 0

Product Selector ➚

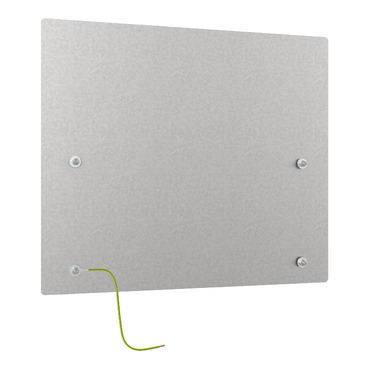

MAX9 Switchboard metal back plate is a type 2, 1 row. back plate material is CRCA with GI coating and metallic color

Where To Buy

Datasheet

Download

Product Dimensions

Width280 mm

Height263 mm

Depth1.6 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554815851	-

Specifications

Design

Range	MAX9
Product or component type	back plate
Warranty	7-year

Physical

Height	263 mm
Width	280 mm
Provided equipment	(1 ) plate (4 ) screws earthing wire
Depth	1.6 mm
Standards	AS/NZS 3000
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2110001EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	84
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Number of horizontal rows	1
Enclosure material	galvanized steel
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.3 cm
Package 1 width	28.0 cm
Package 1 length	26.3 cm
Package 1 weight	1.06 kg
Total lifecycle carbon footprint	7 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	5.052899309168193
Carbon footprint of the manufacturing phase [a1 to a3]	5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.1382674023562287
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	1.9930899148199228
Carbon footprint of the end-of-life phase [c1 to c4]	2 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	7.184256626344345
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	84
