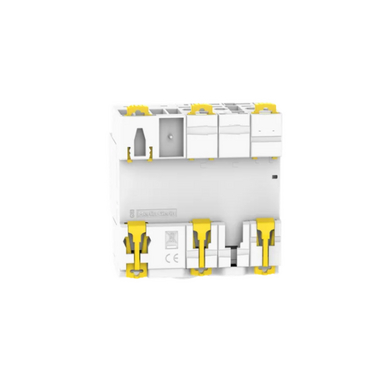

MAX9 Residual Current Breaker with Overcurrent Protection (RCBO) 3PN, 25A, 30mA, C Curve, 6000A, A Type, 5 MOD

Home ProductsCircuit ProtectionMax9Residual Current Breaker with Overcurrent Protection (RCBO)

MAX9 Residual Current Breaker with Overcurrent Protection (RCBO) 3PN, 25A, 30mA, C Curve, 6000A, A Type, 5 MOD

Item Number: MX9R3525

Product Selector ➚

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width90 mm

Height icon

Height95 mm

Depth icon

Depth75 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
max9 busbar
max9 AFDD
max9 distribution board
max9 icons
max9 busbar
max9 AFDD
max9 distribution board
max9 icons

Ultimate Efficiency and Professional Finish

  • MAX9 takes the definition of  a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
  • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from main switch and distributes both active & neutral across all type of Clipsal  RCBOs and AFDDs

MAX Innovation & Performance

  • Innovation is at the core of everything at Clipsal. MAX9 is no exception to that. MAX9 brings in Arc Fault Detection Device (AFDD) to help take the safety of Australian homes to next level
  • Enjoy best-in-class performance with 100A rated system. MAX9 products are designed for tough Aussie conditions with operating temperature ranging from -25 Deg C to +70 Deg C with derating
  • When it comes to circuit protection, it all comes down to what's on the inside. MAX9 breakers are solidly built and designed to endure 20K mechanical cycles and 10K electrical cycles*

Peace of Mind

  • Amendment 2 of "Wiring rules" mandate type A RCDs from 2023. All RCBOs and RCDs in MAX9 range are already type A so that you can be future ready
  • MAX9 system comes type tested as per the requirements of AS/NZS 61439-3 to provide you additional peace of mind
  • Clipsal MAX9 range comes with 7 year warranty for the ultimate peace of mind

Simplify Safety & Digital Experience

  • Sometimes it could be hard to explain circuit protection category to home owners. MAX9 helps to simplify safety by explaining types of circuit protection to home owners with simple pictograms
  • MAX9 range takes the digital experience to next level with QR codes on each product to easily access all technical information like specifications, brochures, installation instructions, FAQs and videos

Specifications

Design

Range

MAX9

Product or component type

residual current breaker with overcurrent protection (RCBO)

Warranty

7-year

Physical

[in] rated current

25 A at 30 °C conforming to AS/NZS 61009.1

[ue] rated operational voltage

415 V AC 50 Hz

Height

95 mm

Width

90 mm

Depth

75 mm

Net weight

500 g

Connections - terminals

  • tunnel type terminal - 1...16 mm² - rigid
  • tunnel type terminal - 1...10 mm² - flexible

Standards

  • IEC 61009-2-1
  • EN/IEC 61009-1
  • AS/NZS 61009.1

Ip degree of protection

IP20

Ambient air temperature for operation

-25...70 °C

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2003017_V1-EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Package 1 bare product quantity

1

Outside of Europe

Legacy weee scope

In

Average percentage of recycled plastic content

0 %

Weee label

N/A

Weee applicability

Finished product

Poles description

3P + N

Number of protected poles

3

Network type

AC

Network frequency

50 Hz

Curve code

C

Earth-leakage sensitivity

30 mA

Earth-leakage protection class

type A

Earth-leakage protection time delay

instantaneous

Breaking capacity

6000 A Icn at 415 V AC 50 Hz

Limitation class

3

[ui] rated insulation voltage

440 V AC 50 Hz

[uimp] rated impulse withstand voltage

4 kV

9 mm pitches

10

Comb busbar and distribution block compatibility

YES

Temperature derating table

  • -25 °C ( 29.2 A )
  • -20 °C ( 28.8 A )
  • -15 °C ( 28.4 A )
  • -10 °C ( 28.1 A )
  • -5 °C ( 27.7 A )
  • 0 °C ( 27.3 A )
  • 5 °C ( 27 A )
  • 10 °C ( 26.6 A )
  • 15 °C ( 26.2 A )
  • 20 °C ( 25.8 A )
  • 25 °C ( 25.4 A )
  • 30 °C ( 25 A )
  • 35 °C ( 24.6 A )
  • 40 °C ( 24.2 A )
  • 45 °C ( 23.7 A )
  • 50 °C ( 23.3 A )
  • 55 °C ( 22.9 A )
  • 60 °C ( 22.4 A )
  • 65 °C ( 22 A )
  • 70 °C ( 21.5 A )

Grid distance

45 mm

Quality labels

RCM

Pollution degree

2

Overvoltage category

III

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.8 cm

Package 1 width

9.1 cm

Package 1 length

9.0 cm

Package 1 weight

498.0 g

Unit type of package 2

S03

Number of units in package 2

16

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

8.409 kg

Total lifecycle carbon footprint

19 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

2.9359746678204237

Carbon footprint of the manufacturing phase [a1 to a3]

3 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.021653196972767887

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

14.915709029965917

Carbon footprint of the use phase [b2, b3, b4, b6]

15 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

1.14769626306015

Carbon footprint of the end-of-life phase [c1 to c4]

1 kg CO2 eq.

Pvc free

No

Halogen-free status

Product contains halogen above thresholds

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

19.02103315781926

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

68d36cfc-4a9f-4fb1-86e1-1d28b1c3c5d6

China rohs label

1

Halogen-free status

Product contains halogen above thresholds

Pvc free

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

84
Show all specifications
max9 3P+N RCBO
max9 3P+N RCBO
max9 3P+N RCBO
max9 3P+N RCBO
max9 3P+N RCBO
max9 3P+N RCBO

Fast installation speed with unmatched flexibility

  • Up to 15 times faster installation with MAXBAR
  • Separate indicator windows for MCB trip or RCD trip for easy diagnosis in case of tripping of device.
  • Compatible with multiple types of screw-drivers with combination head screws
  • Double locking clip for ease of installation or removal from MAXBAR

Helps to provide additional safety

  • Type A RCD to sense a.c. as well as pulsating d.c.
  • Positive contact Indicator on toggle that indicates opening of all poles

Peace of mind with complete solution

  • Short circuit breaking capacity of 6kA
  • Caters for current ratings from 10A to 40A
  • Designed for touch Aussie conditions with operating temperature range of -25 Deg C to +70 Deg C (derating applies)
  • Designed to last with endurance performance of 10K electrical cycles and 20K mechanical cycles
  • Compatible with A9A26970 padlocking device
