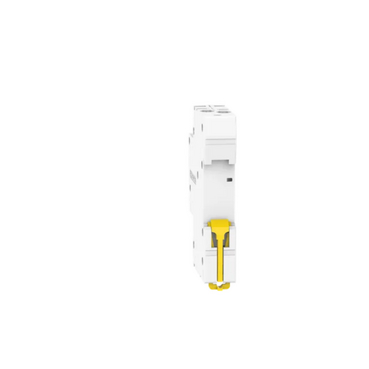

MAX9 Residual Current Breaker with Overcurrent Protection (RCBO) 1PN, 20A, 30mA, C Curve, 6000A, A Type, SLIM

Item Number: MX9R3120

Datasheet

Product Dimensions

Width icon

Width18 mm

Height icon

Height93 mm

Depth icon

Depth73 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

MAX9

Product or component type

residual current breaker with overcurrent protection (RCBO)

Sustainable offer status

Green Premium product

Warranty

7-year

Physical

[in] rated current

20 A at 30 °C conforming to AS/NZS 61009.1

[ue] rated operational voltage

240 V AC 50/60 Hz

Height

93 mm

Width

18 mm

Depth

73 mm

Net weight

136 g

Connections - terminals

tunnel type terminal (top) - 1...16 mm² - rigid|tunnel type terminal (top) - 1...10 mm² - flexible|tunnel type terminal (bottom) - 1...10 mm² - rigid|tunnel type terminal (bottom) - 1...6 mm² - flexible

Standards

IEC 61009-2-2|EN/IEC 61009-1|AS/NZS 61009.1

Ip degree of protection

IP20

Ambient air temperature for operation

-25...70 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2210010EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

12

Poles description

1P + N

Number of protected poles

1

Network type

AC

Network frequency

50/60 Hz

Curve code

C

Earth-leakage sensitivity

30 mA

Earth-leakage protection class

type A

Earth-leakage protection time delay

instantaneous

Breaking capacity

6000 A Icn at 240 V AC 50/60 Hz

Limitation class

3

[ui] rated insulation voltage

440 V AC 50/60 Hz

[uimp] rated impulse withstand voltage

4 kV

9 mm pitches

2

Comb busbar and distribution block compatibility

YES

Temperature derating table

-25 °C ( 23.8 A ) |-20 °C ( 23.5 A ) |-15 °C ( 23.1 A ) |-10 °C ( 22.8 A ) |-5 °C ( 22.5 A ) |0 °C ( 22.1 A ) |5 °C ( 21.8 A ) |10 °C ( 21.5 A ) |15 °C ( 21.1 A ) |20 °C ( 20.7 A ) |25 °C ( 20.4 A ) |30 °C ( 20 A ) |35 °C ( 19.6 A ) |40 °C ( 19.2 A ) |45 °C ( 18.8 A ) |50 °C ( 18.4 A ) |55 °C ( 18 A ) |60 °C ( 17.6 A ) |65 °C ( 17.2 A ) |70 °C ( 16.7 A )

Grid distance

45 mm

Quality labels

RCM

Pollution degree

2

Overvoltage category

III

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.8 cm

Package 1 width

9.8 cm

Package 1 length

2.2 cm

Package 1 weight

142 g

Unit type of package 2

BB1

Number of units in package 2

12

Package 2 height

8.6 cm

Package 2 width

24.4 cm

Package 2 length

10.3 cm

Package 2 weight

1.704 kg

Sustainable packaging

Yes
