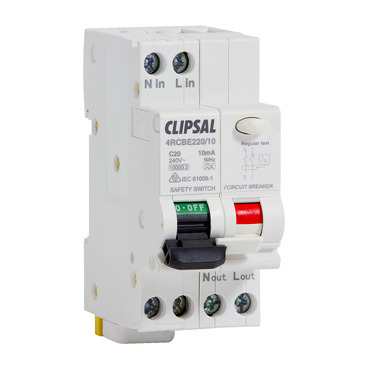

Clipsal - Max 4 RCBO 2 module 2P 20A C curve 10 mAType A 10000A

Clipsal - Max 4 RCBO 2 module 2P 20A C curve 10 mAType A 10000A

Item Number: 4RCBE220/10

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

MAX4

Product or component type

residual current breaker with overcurrent protection (RCBO)

Product brand

Clipsal

Physical

[in] rated current

20 A

[ue] rated operational voltage

240 V AC

Standards

AS/NZS 61009

Ip degree of protection

<ul><li>IP20</li><li>IP40</li></ul>

Ambient air temperature for operation

-5...40 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

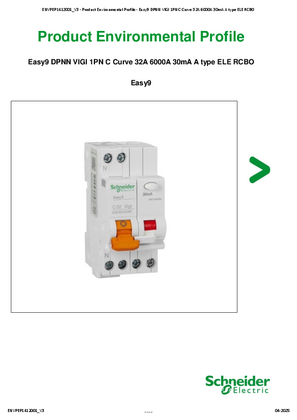

Environmental disclosure

ENVPEP1412001EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Poles description

2P

Number of modules

2

Curve code

C

Earth-leakage sensitivity

10 mA

Earth-leakage protection class

type A

Breaking capacity

10000 A

[uimp] rated impulse withstand voltage

4 kV

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.2 cm

Package 1 width

8.5 cm

Package 1 length

10.0 cm

Package 1 weight

208.0 g

Sustainable packaging

Yes
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • CAD Files and Packs

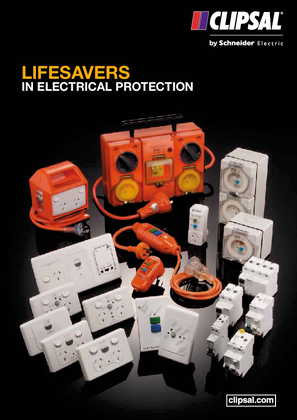

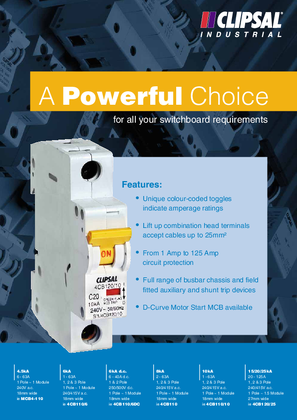

  • Product Brochures

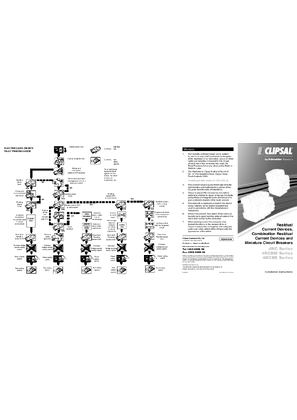

  • Installation Instruction

  • Environmental Disclosure

  • Operating Manuals

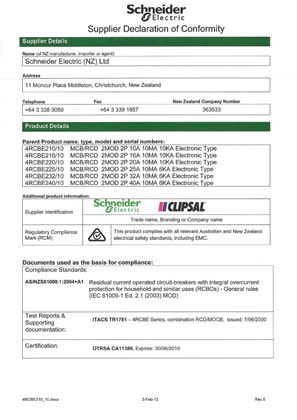

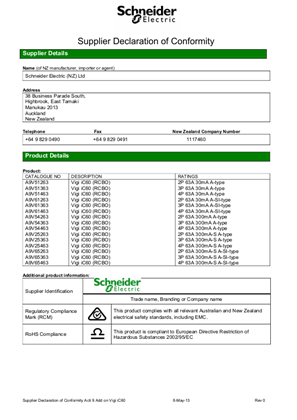

  • Declaration of Conformity

Frequently Asked Questions

hide show

What is the part number for a 20A 10mA RCBO?

The part number for a 20A 10mA RCBO is A9D10820 or  4RCBE220/10S
A9D10820 will fit
 Schneider chassis but cannot not be used for hospitals or body protected areas as it does not switch neutral.
The Clipsal 4RCBE220/10S is suitable for hospitals but will not fit to Schneider chassis.

A9D10820 Product picture
A9D10820    iC60H - earth leakage circuit breaker
1P + N - C curve - 20 A - 10 mA - 240 V
4RCBE220/10S        SLIM CLIPSAL
20A 10mA A-TYPE 6KA

For more information see :
http://eshop.schneider-electric.com/product.aspx?org=21&lang=1&dist=276&prod_id=A9D10820
http://www.clipsal.com/Trade/Products/ProductDetail?catno=4RCBE220/10S

Do Clipsal have a 20a single module RCBE @ 10ma suited for hospital use ?





Yes we do , In this case it would be the 4RCBE220/10S.
To be approved for use in hospitals the RCBO must be approved as "Type 1" (ie: 10mA sensitivity, switch both Neutral and Active, and trip in <40ms)
The below range of Slimline RCBO's are rated as Type 1 and therefore compatible
