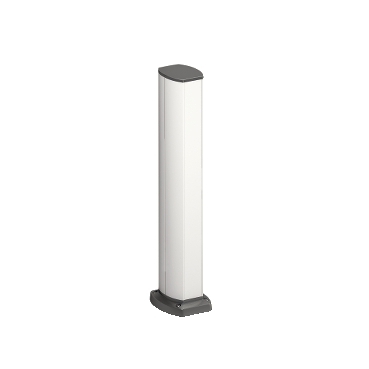

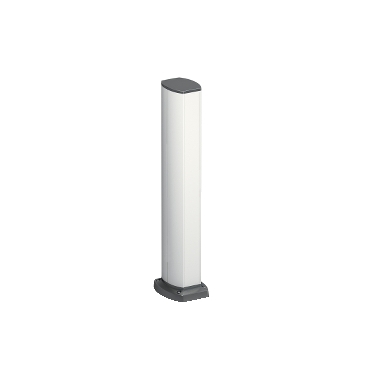

OptiLine 50, Post, 2-sided, empty, white, Australian

OptiLine 50, Post, 2-sided, empty, white, Australian

Item Number: INS43513

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

OptiLine

Range of product

OptiLine 50

Product or component type

post

Colour tint

white (RAL 9010)

Physical

Device presentation

empty

Quantity per set

set of 1

Fixing mode

by screws

Marking

CE

Height

602 mm

Width

156 mm

Standards

EN 50085-1:2005|73/23/EEC|93/68/EEC

Ambient air temperature for operation

-15...60 °C

Ip degree of protection

IP30

Eu rohs directive

Not applicable, out of EU RoHS legal scope

Material

Device composition

front cover|stop end|earth clamp|mounting instruction|floor fixing|gasket ring|strain relief|earth cable

Material

aluminium grey RAL 9007 conforming to EN-AW-6063|PC/ABS white RAL 9010 conforming to UL 94 HB

Others

Package 1 bare product quantity

1

Product name

OptiLine 50

Type of post

two-sided

Cover type

2 closed cover cover 50 mm in plastic coated

Pole/post surface finish

powder coated

Adjustment

fixed:

Cable cross section

7904 mm²

Compartment partitioning

2 compartments

Directives

2014/35/EU - low voltage directive

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

15.6 cm

Package 1 width

12.5 cm

Package 1 length

60.2 cm

Package 1 weight

1.95 kg
