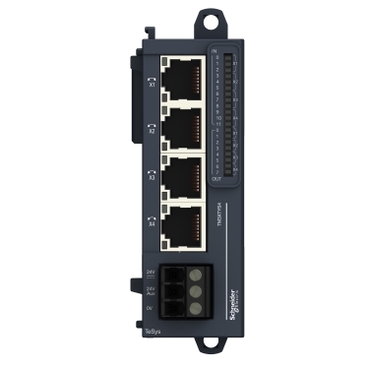

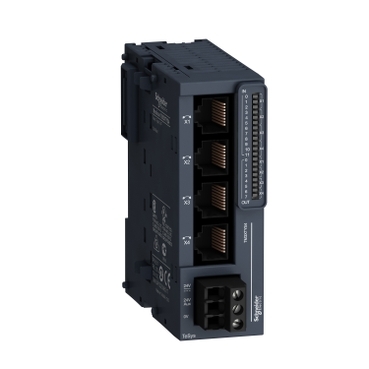

Modicon TM3 Parallel interface module 4 Tesys motors

Item Number: TM3XTYS4

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width30 mm

Height90 mm

Depth85 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480611636	-

Specifications

Design

Range of product	Modicon TM3
Product or component type	parallel interface module

Physical

Range compatibility	Modicon M221 Modicon M251 Modicon M241 Modicon M262
Maximum load current	800 mA per channel in starting mode during 100 ms 300 mA per channel in normal mode
Local signalling	3 LEDs green for input status per channel 2 LEDs green for output status per channel
Mounting support	top hat type TH35-15 rail conforming to IEC 60715 top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
Height	90 mm
Depth	85 mm
Width	30 mm
Net weight	0.115 kg
Product certifications	CE cULus UKCA RCM EAC
Marking	CE
Ambient air temperature for operation	-10...35 °C vertical installation -10...55 °C horizontal installation
Ambient air temperature for storage	-25...70 °C
Relative humidity	10...95 %, without condensation (in operation) 10...95 %, without condensation (in storage)
Ip degree of protection	IP20 with protective cover in place
Ip degree of protection	IP20
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1402009EN
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	42
Legacy weee scope	In
	At least in Europe
Package 3 bare product quantity	504
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product specific application	TeSys U
[us] rated supply voltage	24 V DC by external supply (- 15...20 %)
Number of input channels	12
Number of output channels	8
Current consumption	5 mA at 5 V DC via bus connector at state on 35 mA at 5 V DC via bus connector at state off 0 mA at 24 V DC via bus connector at state on 10 mA at 24 V DC via bus connector at state off 1200 mA at 24 V DC external power supply at state on
Input voltage limits	19.2...28.8 V per input
Input current limits	5 mA per input
Response time	< 10 ms turn-on for input < 10 ms turn-off for input
Output voltage	24 V DC for transistor output
Insulation	between the RJ45 connectors and internal logic at 500 V AC non-insulated between RJ45 connectors
Output protection type	against overload, protection technology: current limiter
Reset	automatic reset
Electrical connection	3 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for connecting the 24 V DC power supply 4 RJ45 connectors for connecting the motor starters
Suitable for welding control	false
Suitable for pressure control	false
Suitable for nc	false
Suitable for electronic positioning	false
Suitable for cnc	false
Suitable for ssi	false
Suitable for incremental data detection	false
Suitable for detection absolute value	false
Suitable for flux controller	false
Suitable for flux measurement	false
Suitable for path controller	false
Suitable for cam controller	false
Suitable for flying saw	false
Suitable for multi-axis control	false
Suitable for single-axis controller	false
Suitable for multi-axis positioning	false
Suitable for single-axis positioning	false
Function block restart blockage	false
Function block automatic reset	false
Contactor control function block	false
Function block emergency stop	false
Function block contactless working protection installation	false
Function block affirm pushbutton	false
Function block 2-hand switching	false
Function block operating mode selection	false
Function block access control	false
Suitable for safety functions	false
Dc supply voltage	24 V
Network type	DC
Number of hw interfaces industrial ethernet	0
Number of hw interfaces profinet	0
Number of hw interfaces serial rs232	0
Number of hw interfaces serial rs422	0
Number of hw interfaces serial rs485	0
Number of hw interfaces serial tty	0
Number of hw interfaces parallel	0
Number of hw interfaces wireless	0
Number of hw interfaces usb	0
Number of hw interfaces other	0
Optical interface present	false
Supporting protocol for ethercat	false
Supporting protocol for tcp/ip	false
Supporting protocol for profibus	false
Supporting protocol for can	false
Supporting protocol for interbus	false
Supporting protocol for asi	false
Supporting protocol for knx	false
Supporting protocol for modbus	false
Supporting protocol for data-highway	false
Supporting protocol for devicenet	false
Supporting protocol for suconet	false
Supporting protocol for lon	false
Supporting protocol for profinet io	false
Supporting protocol for profinet cba	false
Supporting protocol for sercos	false
Supporting protocol for foundation fieldbus	false
Supporting protocol for ethernet/ip	false
Supporting protocol for as-interface safety at work	false
Supporting protocol for devicenet safety	false
Supporting protocol for interbus-safety	false
Supporting protocol for profisafe	false
Supporting protocol for safetybus p	false
Supporting protocol for other bus systems	false
Radio standard bluetooth	false
Radio standard wi-fi 802.11	false
Radio standard gprs	false
Radio standard gsm	false
Radio standard umts	false
Io-link master present	false
System accessory	false
Fieldbus connection over separate bus coupler possible	false
Frequency measurement	false
Bearing track assembly possible	true
Wall mounting/direct mounting possible	false
Front installation possible	false
Rack-assembly possible	false
Resistance to electrostatic discharge	8 kV in air conforming to EN/IEC 61000-4-2 4 kV on contact conforming to EN/IEC 61000-4-2
Resistance to electromagnetic fields	10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3
Resistance to magnetic fields	30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
Resistance to fast transients	1 kV for input conforming to EN/IEC 61000-4-4 1 kV for output conforming to EN/IEC 61000-4-4
Surge withstand	1 kV input common mode conforming to EN/IEC 61000-4-5 1 kV output common mode conforming to EN/IEC 61000-4-5
Resistance to conducted disturbances	10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
Electromagnetic emission	radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011 radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011
Pollution degree	2
Operating altitude	0...2000 m
Storage altitude	0...3000 m
Vibration resistance	3.5 mm at 5-8.4 Hz on DIN rail 3 gn at 8.4-150 Hz on DIN rail 3.5 mm at 5-8.4 Hz on panel 3 gn at 8.4-150 Hz on panel
Shock resistance	15 gn for 11 ms
Performance level according to en iso 13849-1	none
Appendant operation agent (ex ia)	false
Appendant operation agent (ex ib)	false
Certified for ul hazardous location class i	false
Certified for ul hazardous location class ii	false
Certified for ul hazardous location class iii	false
Certified for ul hazardous location division 1	false
Certified for ul hazardous location division 2	false
Certified for ul hazardous location group a (acetylene)	false
Certified for ul hazardous location group b (hydrogen)	false
Certified for ul hazardous location group c (ethylene))	false
Certified for ul hazardous location group d (propane))	false
Certified for ul hazardous location group e (metal dusts)	false
Certified for ul hazardous location group f (carbonaceous dust)	false
Certified for ul hazardous location group g (non conductive dust)	false
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.500 cm
Package 1 width	12.500 cm
Package 1 length	10.500 cm
Package 1 weight	215.000 g
Unit type of package 2	S04
Number of units in package 2	42
Package 2 height	30.000 cm
Package 2 width	40.000 cm
Package 2 length	60.000 cm
Package 2 weight	10.000 kg
Unit type of package 3	P12
Number of units in package 3	504
Package 3 height	80.000 cm
Package 3 width	105.000 cm
Package 3 length	125.000 cm
Package 3 weight	62.296 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	134 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	14.434905846397077
Carbon footprint of the manufacturing phase [a1 to a3]	14 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.04988872964154122
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0058833718780732834
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	118.77106644283556
Carbon footprint of the use phase [b2, b3, b4, b6]	119 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.5341846124131088
Carbon footprint of the end-of-life phase [c1 to c4]	0.5 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	133.79592900316536
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	91cf81c4-f22d-428b-a036-2e24fcc66509
Pvc free	Yes
End of life manual availability	ENVEOLI1402009EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
