Modicon M241, Module Network TM4 4 Ethernet Switch

Home ProductsIndustrialModiconModule Network TM4 4 Ethernet Switch

Modicon M241, Module Network TM4 4 Ethernet Switch

Item Number: TM4ES4

This communication module is proposed as an option Modicon M241/251 controllers. This module provides an Ethernet connection with 4 ports on controllers without embedded Ethernet. It also provides a second Ethernet connection with 4 ports on controllers with embedded Ethernet (except on TM241CEC24x). It is equipped with 4 x RJ45 connectors (10/100 Mbps, MDI/MDIX).

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width25 mm

Height icon

Height90 mm

Depth icon

Depth90 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

Ethernet unmanaged switch

Product compatibility

  • Modicon M241 logic controller
  • Modicon M251 logic controller

Physical

Range compatibility

  • Modicon M251
  • Modicon M241

Integrated connection type

Ethernet: 4 RJ45 connector

Communication port protocol

  • Ethernet IP/Modbus TCP
  • TCP (Transmission Control Protocol)
  • UDP (User Datagram Protocol)
  • SNMP

Local signalling

  • 1 LED (green) for PWR
  • 1 LED per channel (green/yellow) for Ethernet link
  • 1 LED per channel (green) for Ethernet port activity

Marking

CE

Mounting support

  • top hat type TH35-15 rail conforming to IEC 60715
  • top hat type TH35-7.5 rail conforming to IEC 60715
  • plate or panel with fixing kit

Width

25 mm

Height

90 mm

Depth

90 mm

Net weight

0.125 kg

Standards

  • UL 508
  • IEC 61131-2

Product certifications

  • cULus
  • C-Tick

Ambient air temperature for operation

  • -10...55 °C horizontal installation
  • -10...50 °C vertical installation

Ambient air temperature for storage

-25...70 °C

Relative humidity

  • 10...95 %, without condensation (in operation)
  • 10...95 %, without condensation (in storage)

Ip degree of protection

IP20 with protective cover in place

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1403009EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

1

Legacy weee scope

In

At least in Europe

Package 2 bare product quantity

20

Package 3 bare product quantity

160

Average percentage of recycled plastic content

0 %

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Current consumption

360 mA at 5 V DC for communication bus

Transmission rate

10/100 Mbit/s

Port ethernet

10BASE-T/100BASE-TX - 4 port(s) copper cable

Web services

web server

Communication service

  • Modbus TCP server
  • Modbus TCP slave device
  • FTP
  • NGVL
  • monitoring
  • IEC VAR ACCESS
  • programming
  • SNMP
  • Modbus TCP client
  • downloading
  • updating firmware
  • Ethernet/IP slave device
  • DHCP client

Maximum number of connections

  • 8 Modbus server
  • 16 Ethernet/IP device

Redundancy

no

Electrical connection

  • RJ45 4 connectors for connecting Ethernet network
  • screw connector terminal for connecting the functional ground

Surge withstand

  • 1 kV power lines (DC) common mode conforming to IEC 61000-4-5
  • 2 kV power lines (AC) common mode conforming to IEC 61000-4-5
  • 2 kV relay output common mode conforming to IEC 61000-4-5
  • 1 kV I/O common mode conforming to IEC 61000-4-5
  • 1 kV shielded cable common mode conforming to IEC 61000-4-5
  • 0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5
  • 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5
  • 1 kV relay output differential mode conforming to IEC 61000-4-5
  • 0.5 kV I/O differential mode conforming to IEC 61000-4-5

Resistance to electrostatic discharge

  • 8 kV in air conforming to IEC 61000-4-2
  • 4 kV on contact conforming to IEC 61000-4-2
  • 8 kV in air conforming to Marine specification (LR, ABS, DNV, GL)
  • 6 kV on contact conforming to Marine specification (LR, ABS, DNV, GL)

Resistance to electromagnetic fields

  • 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
  • 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3
  • 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3

Resistance to fast transients

  • 2 kV (power lines) conforming to IEC 61000-4-4
  • 2 kV (relay output) conforming to IEC 61000-4-4
  • 1.5 kV (I/O) conforming to IEC 61000-4-4
  • 1 kV (Ethernet line) conforming to IEC 61000-4-4
  • 1 kV (serial link) conforming to IEC 61000-4-4

Resistance to conducted disturbances

  • 10 V 0.15...80 MHz conforming to IEC 61000-4-6
  • 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL)
  • 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Electromagnetic emission

  • conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15-0.5 MHz conforming to IEC 55011
  • conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5-300 MHz conforming to IEC 55011
  • conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to IEC 55011
  • conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to IEC 55011
  • radiated emissions - test level: 40 dBμV/m QP class A at 30-230 MHz conforming to IEC 55011
  • radiated emissions - test level: 60...54 dBμV/m QP at 30-100 MHz conforming to Marine specification (LR, ABS, DNV, GL)
  • radiated emissions - test level: 24 dBμV/m QP at 156-165 MHz conforming to Marine specification (LR, ABS, DNV, GL)
  • conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to IEC 55011
  • radiated emissions - test level: 47 dBμV/m QP class A at 230-1000 MHz conforming to IEC 55011
  • radiated emissions - test level: 80...50 dμV/m QP at 150-30000 kHz conforming to Marine specification (LR, ABS, DNV, GL)
  • radiated emissions - test level: 54 dBμV/m QP at 100-2000 MHz conforming to Marine specification (LR, ABS, DNV, GL)

Pollution degree

2

Operating altitude

0...2000 m

Storage altitude

0...3000 m

Vibration resistance

  • 1 mm at 5-13.2 Hz on symmetrical rail
  • 3 gn at 8.7-150 Hz on symmetrical rail
  • 1 mm at 5-13.2 Hz on panel mounting
  • 0.7 gn at 13.2-100 Hz on panel mounting

Shock resistance

15 gn for 11 ms

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.635 cm

Package 1 width

11.532 cm

Package 1 length

17.033 cm

Package 1 weight

210.0 g

Unit type of package 2

S03

Number of units in package 2

20

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

5.04 kg

Unit type of package 3

P06

Number of units in package 3

160

Package 3 height

75 cm

Package 3 width

60 cm

Package 3 length

80 cm

Package 3 weight

48 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

96 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

24.52987101482221

Carbon footprint of the manufacturing phase [a1 to a3]

25 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.008057151095235932

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.003287669447066496

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

71.09680428130878

Carbon footprint of the use phase [b2, b3, b4, b6]

71 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.3329293442925289

Carbon footprint of the end-of-life phase [c1 to c4]

0.3 kg CO2 eq.

Pvc free

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

95.97094946096581

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

5f9bf620-80e3-4249-adf7-f86659e9a73e

Pvc free

Yes

End of life manual availability

ENVEOLI1403009EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Operating Manuals

  • Technical Drawing

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Compact Hardwired Logic Controller M241 - Wiring Diagram
ZIP

Compact Hardwired Logic Controller M241 - Wiring Diagram

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 15.2 MB
MODULE NETWORK TM4-4 Ethernet switchs - 3D CAD
ZIP

MODULE NETWORK TM4-4 Ethernet switchs - 3D CAD

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB
Discover catalog for EcoStruxure Automation Expert
ZIP

Discover catalog for EcoStruxure Automation Expert

VERSION

9.0

DATE

10 May 2025

REVISION

9.0

DOWNLOAD (ZIP) 5.8 MB
Catalog Modicon M251 Programmable Logic Controller for modular and distributed architectures
ZIP

Catalog Modicon M251 Programmable Logic Controller for modular and distributed architectures

VERSION

8.0

DATE

29 Jul 2024

REVISION

8.0

DOWNLOAD (ZIP) 4.4 MB
Catalog Modicon M241 Programmable Logic Controller for performance demanding applications_October 2023
ZIP

Catalog Modicon M241 Programmable Logic Controller for performance demanding applications_October 2023

VERSION

7.0

DATE

16 Oct 2023

REVISION

7.0

DOWNLOAD (ZIP) 8.3 MB

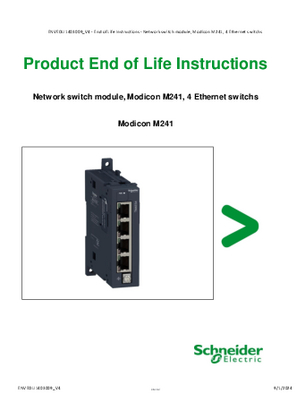

TM4ES4 Network Module - 4 Ethernet switchs, Product End-of-Life Instructions
ZIP

TM4ES4 Network Module - 4 Ethernet switchs, Product End-of-Life Instructions

VERSION

3.1

DATE

10 Oct 2024

REVISION

3.1

DOWNLOAD (ZIP) 407.2 KB

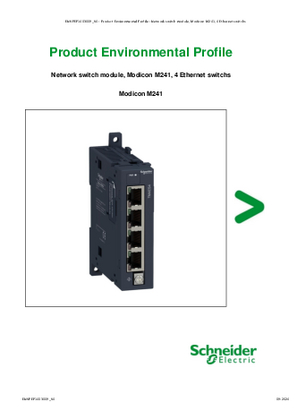

TM4ES4 Network Module - 4 Ethernet switchs - Product Environmental Profile
ZIP

TM4ES4 Network Module - 4 Ethernet switchs - Product Environmental Profile

VERSION

3.1

DATE

10 Oct 2024

REVISION

3.1

DOWNLOAD (ZIP) 308 KB

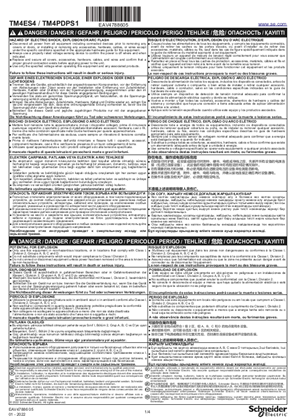

TM4ES4 / TM4PDPS1 Expansion Modules - Instruction sheet (EN)
ZIP

TM4ES4 / TM4PDPS1 Expansion Modules - Instruction sheet (EN)

VERSION

3.0

DATE

20 May 2024

REVISION

3.0

DOWNLOAD (ZIP) 2 MB

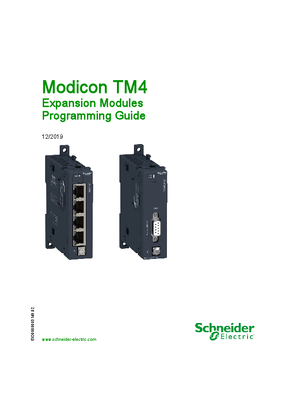

Modicon TM4 - Expansion Modules - Programming Guide
ZIP

Modicon TM4 - Expansion Modules - Programming Guide

VERSION

3.0

DATE

30 Apr 2025

REVISION

3.0

DOWNLOAD (ZIP) 2.3 MB

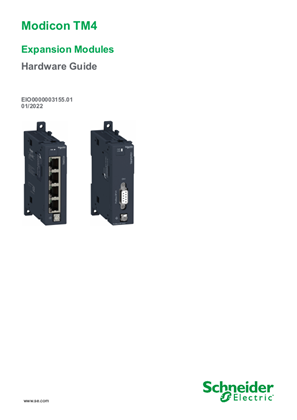

Modicon TM4 - Expansion Modules, Hardware Guide
ZIP

Modicon TM4 - Expansion Modules, Hardware Guide

VERSION

2.0

DATE

17 May 2024

REVISION

2.0

DOWNLOAD (ZIP) 1.4 MB

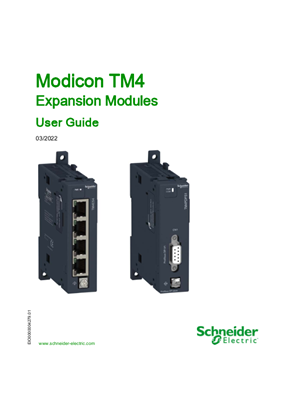

Modicon TM4 - Expansion Modules, User Guide
ZIP

Modicon TM4 - Expansion Modules, User Guide

VERSION

2.0

DATE

13 May 2022

REVISION

2.0

DOWNLOAD (ZIP) 3.8 MB
Distributed Modbus TCP Logic Controller M251 - Wiring Diagram
ZIP

Distributed Modbus TCP Logic Controller M251 - Wiring Diagram

VERSION

2.0

DATE

09 Aug 2024

REVISION

2.0

DOWNLOAD (ZIP) 2.7 MB

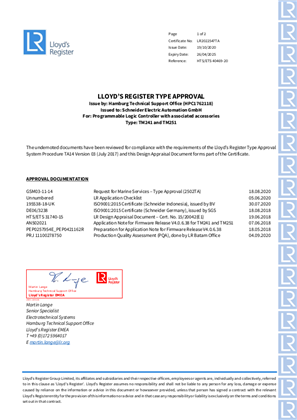

Modicon, TM241, TM251, IACS, LR, Marine
ZIP

Modicon, TM241, TM251, IACS, LR, Marine

VERSION

4.0

DATE

29 Aug 2025

REVISION

4.0

DOWNLOAD (ZIP) 914 KB
Modicon, TM241, TM251, IACS, DNV, Marine
ZIP

Modicon, TM241, TM251, IACS, DNV, Marine

VERSION

2.0

DATE

11 Apr 2025

REVISION

2.0

DOWNLOAD (ZIP) 175.8 KB
Modicon, TM241, TM251, IACS, ABS, Marine
ZIP

Modicon, TM241, TM251, IACS, ABS, Marine

VERSION

1.1

DATE

04 Mar 2024

REVISION

1.1

DOWNLOAD (ZIP) 4 MB
Modicon, TM241, TM251, TMC4, TM3X, Certificate, cULus, Ordinary Location
ZIP

Modicon, TM241, TM251, TMC4, TM3X, Certificate, cULus, Ordinary Location

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 400.8 KB

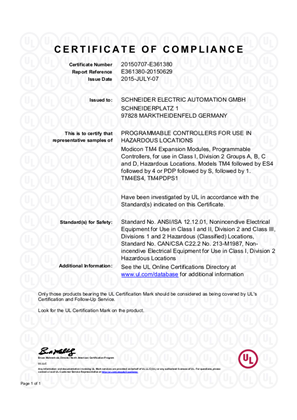

Modicon,TM4ES4, TM4PDPS1, Certificate, cULus, Hazardous Location
ZIP

Modicon,TM4ES4, TM4PDPS1, Certificate, cULus, Hazardous Location

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 373.1 KB
Modicon DoC TM4_TMC_TM3-Expert
ZIP

Modicon DoC TM4_TMC_TM3-Expert

VERSION

1.1

DATE

06 Oct 2022

REVISION

1.1

DOWNLOAD (ZIP) 352.9 KB
TM4ES4 China RoHS Declaration
ZIP

TM4ES4 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 China RoHS Declaration
ZIP

TM4ES4 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 China RoHS Declaration
ZIP

TM4ES4 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 China RoHS Declaration
ZIP

TM4ES4 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 China RoHS Declaration
ZIP

TM4ES4 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 China RoHS Declaration
ZIP

TM4ES4 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 China RoHS Declaration
ZIP

TM4ES4 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 China RoHS Declaration
ZIP

TM4ES4 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 EU RoHS Declaration
ZIP

TM4ES4 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 EU RoHS Declaration
ZIP

TM4ES4 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 EU RoHS Declaration
ZIP

TM4ES4 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 EU RoHS Declaration
ZIP

TM4ES4 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 EU RoHS Declaration
ZIP

TM4ES4 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 EU RoHS Declaration
ZIP

TM4ES4 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 EU RoHS Declaration
ZIP

TM4ES4 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 EU RoHS Declaration
ZIP

TM4ES4 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 REACh Declaration
ZIP

TM4ES4 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 REACh Declaration
ZIP

TM4ES4 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 REACh Declaration
ZIP

TM4ES4 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 REACh Declaration
ZIP

TM4ES4 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 REACh Declaration
ZIP

TM4ES4 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 REACh Declaration
ZIP

TM4ES4 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 REACh Declaration
ZIP

TM4ES4 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
TM4ES4 REACh Declaration
ZIP

TM4ES4 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

Related products

Recently viewed
