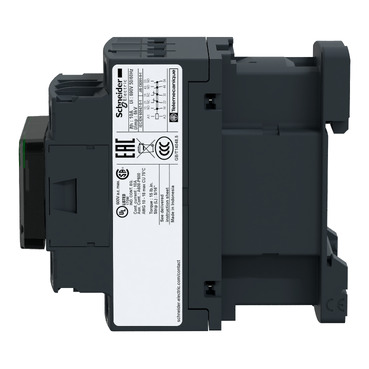

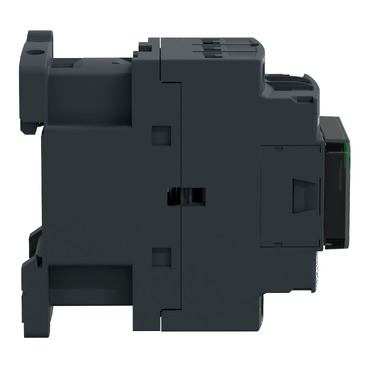

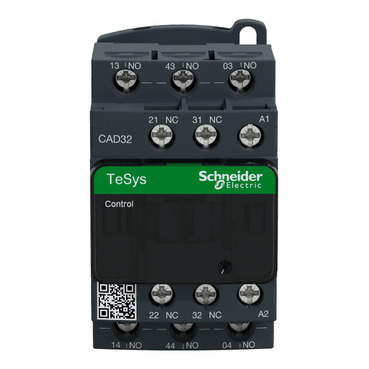

TeSys K, Control Relay, 3NO+2NC, 0 to 690V, 42VAC 50/60Hz standard coil, screw clamp
Item Number: CAD32D7
Specifications
Design
Range
- TeSys
- TeSys Deca
Range of product
Product or component type
Warranty
Physical
[ue] rated operational voltage

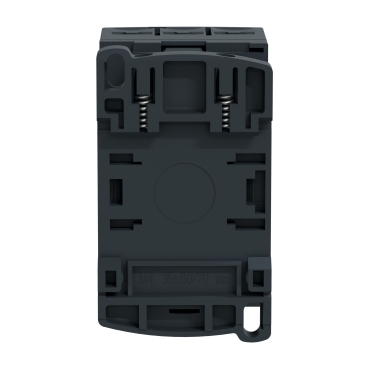

Mounting support
- rail
- plate
Connections - terminals
- screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
- screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end
- screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end
- screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end
- screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end
- screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end
Mechanical durability
Insulation resistance
Height
Width
Depth
Net weight
Standards
- EN/IEC 60947-5-1
- GB/T 14048.5
- UL 60947-5-1
- CSA C22.2 No 60947-5-1
- JIS C8201-5-1

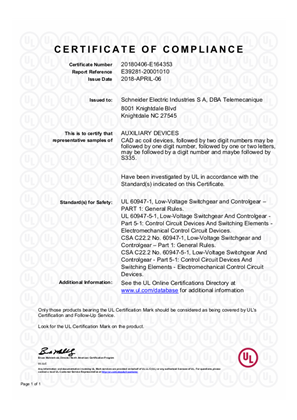

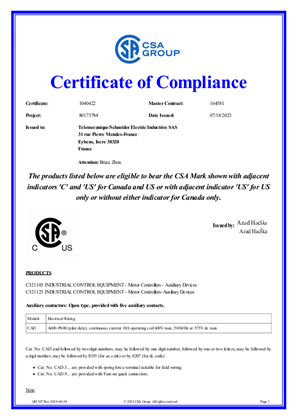

Product certifications
- CB
- CCC
- UL
- CSA
- EAC
- CE
- UKCA
Ip degree of protection
Ambient air temperature for operation
- -40...60 °C
- 60...70 °C with derating
Ambient air temperature for storage
Reach regulation
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Others
Life cycle assessment data
Substance regulation data deliverable
Package 1 bare product quantity
Package 2 bare product quantity
Packaging made with recycled cardboard
Packaging without single use plastic
Product name
Device short name
Contactor application
Utilisation category
- AC-15
- AC-14
- DC-13
Pole contact composition
Control circuit type
[uc] control circuit voltage
[uimp] rated impulse withstand voltage
[ith] conventional free air thermal current
Irms rated making capacity
- 140 A AC conforming to IEC 60947-5-1
- 250 A DC conforming to IEC 60947-5-1
[icw] rated short-time withstand current
- 100 A - 1 s
- 120 A - 500 ms
- 140 A - 100 ms
Associated fuse rating
[ui] rated insulation voltage
- 600 V UL certified
- 600 V CSA certified
- 690 V conforming to IEC 60947-5-1
Tightening torque
- 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2
- 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Control circuit voltage limits
- 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz
- 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz
- 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz
- 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
Operating time
- 12...22 ms coil energisation and NO closing
- 4...12 ms coil de-energisation and NO opening
- 4...19 ms coil energisation and NC opening
- 6...17 ms coil de-energisation and NC closing
Maximum operating rate
Inrush power in va
Hold-in power consumption in va
Minimum switching voltage
Minimum switching current
Non-overlap time
- 1.5 ms on energisation between NC and NO contact
- 1.5 ms on de-energisation between NC and NO contact
Mechanical robustness
- shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27
- shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27
- vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
- vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6
Compatibility code
Protective treatment
Operating altitude
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Green premium status for reporting
Sustainable packaging
Weee
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
