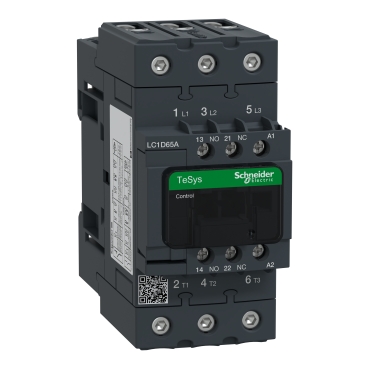

TeSys D Contactor TeSys Deca, 3P(3 NO), AC-3, 0 to 440V, 65A, 12VAC 50 Hz coil

TeSys D Contactor TeSys Deca, 3P(3 NO), AC-3, 0 to 440V, 65A, 12VAC 50 Hz coil

Item Number: LC1D65AJ5

Datasheet

Product Dimensions

Width icon

Width55 mm

Height icon

Height122 mm

Depth icon

Depth120 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

  • TeSys
  • TeSys Deca

Range of product

TeSys Deca

Product or component type

contactor

Warranty

18 months

Physical

[ue] rated operational voltage

  • power circuit: <= 690 V AC 25...400 Hz
  • power circuit: <= 300 V DC

[ie] rated operational current

  • 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
  • 65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit

Mechanical durability

6 Mcycles

Electrical durability

  • 1.4 Mcycles 80 A AC-1 at Ue <= 440 V
  • 1.45 Mcycles 65 A AC-3 at Ue <= 440 V

Connections - terminals

  • control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
  • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
  • control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
  • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end
  • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end
  • control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end
  • power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end
  • power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible without cable end
  • power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with cable end
  • power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with cable end
  • power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid without cable end
  • power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid without cable end

Insulation resistance

> 10 MOhm for signalling circuit

Mounting support

  • rail
  • plate

Standards

  • EN 60947-4-1
  • EN 60947-5-1
  • IEC 60947-4-1
  • IEC 60947-5-1
  • CSA C22.2 No 14
  • UL 60947-4-1
  • IEC 60335-2-40:Annex JJ
  • UL 60335-2-40:Annex JJ
  • IEC 60335-1:Clause 30.2

Product certifications

  • CCC
  • UL
  • CB Scheme
  • CSA
  • CE
  • UKCA
  • Marine
  • EAC

Ip degree of protection

IP20 front face conforming to IEC 60529

Climatic withstand

  • conforming to IACS E10 exposure to damp heat
  • conforming to IEC 60947-1 Annex Q category D exposure to damp heat

Height

122 mm

Width

55 mm

Depth

120 mm

Net weight

0.86 kg

Others

Package 1 bare product quantity

1

Device short name

LC1D

Contactor application

  • motor control
  • resistive load

Utilisation category

  • AC-3
  • AC-4
  • AC-1

Poles description

3P

[uc] control circuit voltage

12 V AC 50 Hz

Motor power kw

  • 11 kW at 400 V AC 50/60 Hz (AC-4)
  • 18.5 kW at 220...230 V AC 50/60 Hz (AC-3)
  • 30 kW at 380...400 V AC 50/60 Hz (AC-3)
  • 37 kW at 500 V AC 50/60 Hz (AC-3)
  • 37 kW at 660...690 V AC 50/60 Hz (AC-3)
  • 18.5 kW at 220...230 V AC 50/60 Hz (AC-3e)
  • 30 kW at 380...400 V AC 50/60 Hz (AC-3e)
  • 37 kW at 500 V AC 50/60 Hz (AC-3e)
  • 37 kW at 660...690 V AC 50/60 Hz (AC-3e)

Motor power hp

  • 40 hp at 460/480 V AC 50/60 Hz for 3 phases motors
  • 5 hp at 115 V AC 50/60 Hz for 1 phase motors
  • 10 hp at 230/240 V AC 50/60 Hz for 1 phase motors
  • 20 hp at 200/208 V AC 50/60 Hz for 3 phases motors
  • 20 hp at 230/240 V AC 50/60 Hz for 3 phases motors
  • 50 hp at 575/600 V AC 50/60 Hz for 3 phases motors

Compatibility code

LC1D

Pole contact composition

3 NO

Protective cover

with

[ith] conventional free air thermal current

  • 10 A (at 60 °C) for signalling circuit
  • 80 A (at 60 °C) for power circuit

Irms rated making capacity

  • 140 A AC for signalling circuit conforming to IEC 60947-5-1
  • 250 A DC for signalling circuit conforming to IEC 60947-5-1
  • 1000 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

1000 A at 440 V for power circuit conforming to IEC 60947

[icw] rated short-time withstand current

  • 640 A 40 °C - 10 s for power circuit
  • 900 A 40 °C - 1 s for power circuit
  • 110 A 40 °C - 10 min for power circuit
  • 260 A 40 °C - 1 min for power circuit
  • 100 A - 1 s for signalling circuit
  • 120 A - 500 ms for signalling circuit
  • 140 A - 100 ms for signalling circuit

Associated fuse rating

  • 10 A gG for signalling circuit conforming to IEC 60947-5-1
  • 125 A gG at <= 690 V coordination type 1 for power circuit
  • 125 A gG at <= 690 V coordination type 2 for power circuit

Average impedance

1.5 mOhm - Ith 80 A 50 Hz for power circuit

Power dissipation per pole

  • 9.6 W AC-1
  • 6.3 W AC-3

[ui] rated insulation voltage

  • power circuit: 600 V CSA certified
  • power circuit: 600 V UL certified
  • signalling circuit: 690 V conforming to IEC 60947-1
  • signalling circuit: 600 V CSA certified
  • signalling circuit: 600 V UL certified
  • power circuit: 690 V conforming to IEC 60947-4-1

Overvoltage category

III

Pollution degree

3

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947

Safety reliability level

  • B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
  • B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Control circuit type

AC at 50 Hz

Coil technology

without built-in suppressor module

Control circuit voltage limits

  • 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz
  • 0.3...0.6 Uc (-40-70 °C):drop-out AC 50 Hz
  • 1...1.1 Uc (60-70 °C):operational AC 50 Hz

Inrush power in va

160 VA 50 Hz cos phi 0.75 (at 20 °C)

Hold-in power consumption in va

15 VA 50 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

4...5 W at 50 Hz

Operating time

  • 4...19 ms opening
  • 12...26 ms closing

Maximum operating rate

3600 cyc/h at 60 °C

Tightening torque

  • control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver flat Ø 6 mm
  • control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver Philips No 2
  • power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm
  • power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm
  • control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2
  • power circuit: 2.5 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2

Auxiliary contact composition

1 NO + 1 NC

Auxiliary contacts type

  • type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
  • type mirror contact 1 NC conforming to IEC 60947-4-1

Signalling circuit frequency

25...400 Hz

Minimum switching voltage

17 V for signalling circuit

Minimum switching current

5 mA for signalling circuit

Non-overlap time

  • 1.5 ms on de-energisation between NC and NO contact
  • 1.5 ms on energisation between NC and NO contact

Contact compatibility

M2

Protective treatment

TH conforming to IEC 60068-2-30

Permissible ambient air temperature around the device

  • -40...60 °C
  • 60...70 °C with derating

Operating altitude

0...3000 m

Fire resistance

850 °C conforming to IEC 60695-2-1

Flame retardance

V1 conforming to UL 94

Mechanical robustness

  • vibrations contactor open (2 Gn, 5...300 Hz)
  • vibrations contactor closed (4 Gn, 5...300 Hz)
  • shocks contactor closed (15 Gn for 11 ms)
  • shocks contactor open (10 Gn for 11 ms)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6 cm

Package 1 width

14 cm

Package 1 length

15 cm

Package 1 weight

0.85 kg
