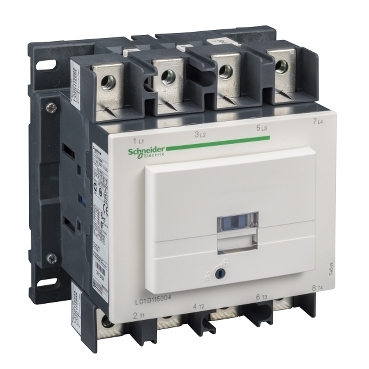

TeSys D Contactor 4P (4NO), AC-1 <=440V 200 A, 220 V DC standard coil, lugs/bars terminals

Item Number: LC1D1150046MD

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width155 mm

Height158 mm

Depth115 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389110158595	-

Specifications

Design

Range

TeSys

Range of product

TeSys Deca

Product or component type

contactor

Warranty

18 months

Physical

[ue] rated operational voltage

power circuit: <= 1000 V AC 25...400 Hz
power circuit: <= 460 V DC

[ie] rated operational current

200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

Mechanical durability

8 Mcycles

Electrical durability

0.8 Mcycles 200 A AC-1 at Ue <= 440 V

Connections - terminals

control circuit: lugs-ring terminals - external diameter: 8 mm
power circuit: lugs-ring terminals - external diameter: 25 mm
power circuit: bars 1 - busbar cross section: 5 x 25 mm

Mounting support

rail
plate

Standards

CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508

Product certifications

CCC
CSA
UL
GL
DNV
LROS (Lloyds register of shipping)
GOST
BV
RINA

Ip degree of protection

IP20 front face conforming to IEC 60529

Climatic withstand

conforming to IACS E10 exposure to damp heat
conforming to IEC 60947-1 Annex Q category D exposure to damp heat

Height

158 mm

Width

155 mm

Depth

115 mm

Net weight

2.86 kg

Eu rohs directive

Compliant

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP060301EN

Circularity profile

ENVEOLI100405EN

Others

Package 1 bare product quantity

Device short name

LC1D

Contactor application

resistive load

Utilisation category

AC-1
AC-3
AC-3e
AC-4

Poles description

[uc] control circuit voltage

220 V DC

Compatibility code

LC1D

Pole contact composition

4 NO

Protective cover

with

[ith] conventional free air thermal current

200 A (at 60 °C) for power circuit

Irms rated making capacity

1260 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

1100 A at 440 V for power circuit conforming to IEC 60947

[icw] rated short-time withstand current

250 A 40 °C - 10 min for power circuit
550 A 40 °C - 1 min for power circuit
950 A 40 °C - 10 s for power circuit
1100 A 40 °C - 1 s for power circuit

Associated fuse rating

250 A gG at <= 690 V coordination type 1 for power circuit
200 A gG at <= 690 V coordination type 2 for power circuit

Average impedance

0.6 mOhm - Ith 200 A 50 Hz for power circuit

Power dissipation per pole

24 W AC-1

[ui] rated insulation voltage

power circuit: 600 V CSA certified
power circuit: 600 V UL certified
power circuit: 1000 V conforming to IEC 60947-4-1

Overvoltage category

III

Pollution degree

[uimp] rated impulse withstand voltage

8 kV conforming to IEC 60947

Safety reliability level

B10d = 684932 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 10000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Control circuit type

DC standard

Coil technology

with integral suppression device

Control circuit voltage limits

0.75...1.2 Uc (-40-55 °C):operational DC
0.15...0.4 Uc (-40-70 °C):drop-out DC
1...1.2 Uc (55-70 °C):operational DC

Inrush power in w

270...365 W (at 20 °C)

Hold-in power consumption in w

2.4...5.1 W at 20 °C

Operating time

20...35 ms closing
40...75 ms opening

Time constant

25 ms

Tightening torque

control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5
control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5
power circuit: 12 N.m - on lugs-ring terminals hexagonal screw head 13 mm M8
power circuit: 12 N.m - on bars hexagonal screw head 13 mm M8
control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver pozidriv No 2 M3.5

Contact compatibility

Protective treatment

TH conforming to IEC 60068-2-30

Permissible ambient air temperature around the device

-40...60 °C
60...70 °C with derating

Operating altitude

0...3000 m

Fire resistance

850 °C conforming to IEC 60695-2-1

Flame retardance

V1 conforming to UL 94

Mechanical robustness

vibrations contactor open (2 Gn, 5...300 Hz)
vibrations contactor closed (4 Gn, 5...300 Hz)
shocks contactor closed (15 Gn for 11 ms)
shocks contactor open (6 Gn for 11 ms)

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

16.8 cm

Package 1 width

21.2 cm

Package 1 length

18.5 cm

Package 1 weight

2.37 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
