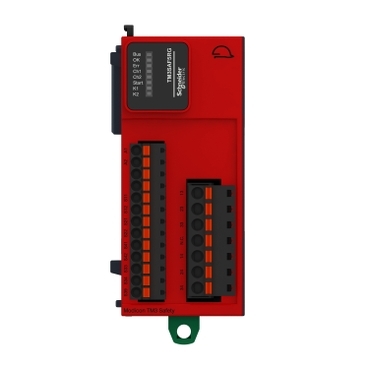

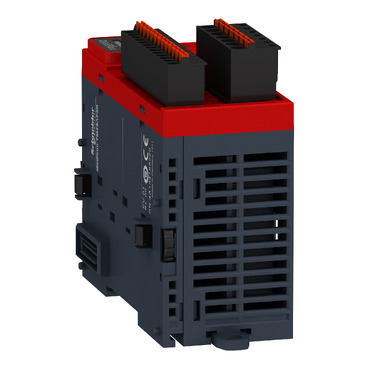

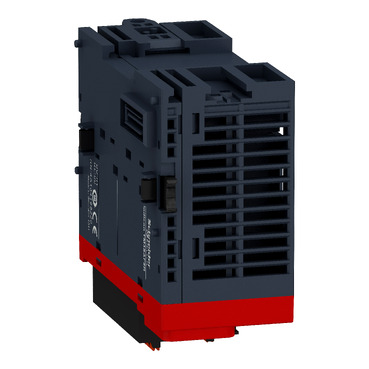

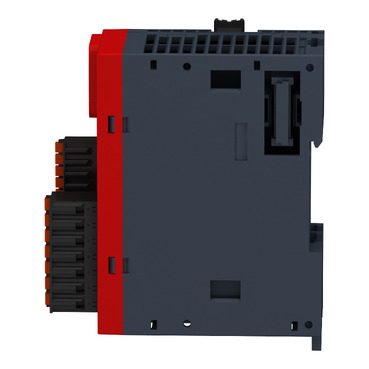

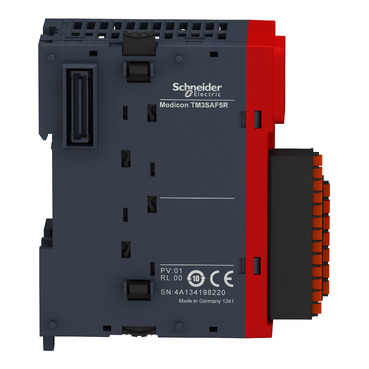

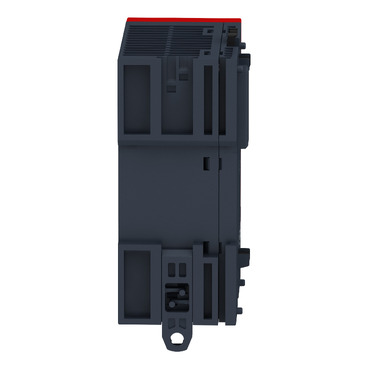

Modicon TM3 Safety module 1 Function, Cat 4 PL e/SIL CL3 (spring) 24VDC

Item Number: TM3SAF5RG

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width43.7 mm

Height94 mm

Depth73 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606485393001	-

Specifications

Design

Range of product

Modicon TM3 Safety

Product or component type

safety module

Physical

Function of module

emergency stop monitoring 1-channel wiring
emergency stop monitoring 2-channel wiring
monitoring of a movable guard with 2 switches and automatic start

Connections - terminals

captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34
captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34
captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34
captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34
captive spring terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34
captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals
captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminals
captive spring terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals
captive spring terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals

Power consumption in w

0.2 W at 5 V DC
3.6 W at 24 V DC

Local signalling

8 LEDs (green/red) for user

Standards

ISO 13849-1:2008
ISO 13849-2:2012
IEC 62061:2005
IEC 61508:2010
IEC 60947-5-1:2010
IEC 61131-2:2007
IEC 60204-1:2005
IEC 60204-1:2009/A1
IEC 61010-1:2010
EN 50581:2012

Product certifications

ANSI Haz Loc Class 1 Division 2 (pending)
UL 61010-2-201
EAC
TÜV
RCM
CSA Haz Loc Class 1 Division 2 (pending)
CSA 61010-2-201 (pending)

Marking

EFUP 10
CE
UL
EAC
RCM
CSA
TÜV

Mounting support

top hat type TH35-7.5 rail conforming to IEC 60715
top hat type TH35-15 rail conforming to IEC 60715
wall mount using attached fasteners

Height

94 mm

Depth

73 mm

Width

43.7 mm

Net weight

0.19 kg

Standards

ISO 13850
IEC 60947-5-1
EN 1088/ISO 14119
IEC 60204-1
IEC 60947-1

Ambient air temperature for operation

-10...55 °C horizontal installation

Ambient air temperature for storage

-25...70 °C

Relative humidity

10...95 %, without condensation (in operation)
10...95 %, without condensation (in storage)

Ip degree of protection

IP20 (terminals) conforming to IEC 60529

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1403010EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

Package 1 bare product quantity

Package 2 bare product quantity

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

TM3SAF

Safety module application

for emergency stop and switch monitoring

Safety level

can reach PL e/category 4 conforming to ISO 13849-1: 2008
can reach PL e/category 4 conforming to ISO 13849-2: 2012
can reach SILCL 3 conforming to IEC 62061: 2005
can reach SIL 3 conforming to IEC 61508: 2010

Safety reliability data

DC = 95 % conforming to ISO 13849-1
PFHd = 5E-9 1/h conforming to IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A
PFHd = 30E-9 1/h conforming to IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A
MTTFd = 500 years conforming to ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A
MTTFd = 85 years conforming to ISO 13849-1 60 operations/hour DC-13 24 V DC, <1 A
SFF = 95 % conforming to IEC 61508-1
HFT = 1 conforming to IEC 61508-1
type = A conforming to IEC 61508-1

Synchronisation time between inputs

unlimited

Output type

relay instantaneous opening, 3 NO circuit(s), potential free

Number of safety circuits

3 NO for relay instantaneous opening

Maximum switching voltage

230 V utilisation category AC-15 at 50 Hz (relay instantaneous opening)
24 V utilisation category DC-13 (relay instantaneous opening)

[us] rated supply voltage

24 V - 15...20 % DC

Input protection type

internal, electronic

[uc] control circuit voltage

24 V DC

Maximum cable distance between devices

30 m

Breaking capacity

360 VA holding AC-15 B300 relay output
3600 VA inrush AC-15 B300 relay output

Breaking capacity

4 A 24 V 50 ms DC-13 relay output

Output thermal current

6 A per relay for relay output

[ith] conventional free air thermal current

18 A

Associated fuse rating

4 A gG or gL for relay output conforming to IEC 60947-5-1
6 A fast blow for relay output conforming to IEC 60947-5-1

Minimum output current

10 mA for relay output

Output voltage

10 V relay output

Maximum response time on input open

40 ms

[ui] rated insulation voltage

300 V (pollution degree 2) conforming to IEC 60647-5-1

[uimp] rated impulse withstand voltage

4 kV overvoltage category III conforming to IEC 60647-5-1

Current consumption

100 mA at 24 V DC external supply

Electrical connection

spring terminal

Electromagnetic compatibility

electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2
electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2
susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to IEC 61000-4-3
susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to IEC 61000-4-3
magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8
electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to IEC 61000-4-4
electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to IEC 61000-4-4
1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5
conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6
radiated emission - test level: 40 dBµV/m class A (24 V) conforming to IEC 55011
radiated emission - test level: 47 dBµV/m class A (24 V) conforming to IEC 55011

Resistance to electrostatic discharge

8 kV in air conforming to IEC 61000-4-2
6 kV on contact conforming to IEC 61000-4-2

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3
1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3

Resistance to magnetic fields

30 A/m 50/60 Hz conforming to IEC 61000-4-8

Resistance to fast transients

3 kV for power lines (DC) (DC) conforming to IEC 61000-4-4
2 kV for I/O lines conforming to IEC 61000-4-4

Surge withstand

1 kV power lines (DC) differential mode conforming to IEC 61000-4-5 DC
1 kV power lines (DC) common mode conforming to IEC 61000-4-5 DC

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to IEC 61000-4-6

Electromagnetic emission

radiated emissions - test level: 50 dBµV/m class A ( 24 V DC) at 30-230 Hz conforming to IEC 61131-3
radiated emissions - test level: 57 dBµV/m class A ( 24 V DC) at 230-1000 Hz conforming to IEC 61131-3

Pollution degree

Operating altitude

0...2000 m

Storage altitude

0...3000 m

Vibration resistance

+/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Mechanical robustness

bumps 6 ms 300 shocks (25 gn) conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

7.500 cm

Package 1 width

10.600 cm

Package 1 length

12.500 cm

Package 1 weight

279.000 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

5.266 kg

Total lifecycle carbon footprint

158 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

3.4466392294

Carbon footprint of the manufacturing phase [a1 to a3]

3 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0303203503

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0004034839

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

154.51

Carbon footprint of the use phase [b2, b3, b4, b6]

155 kg CO2 eq.

Sustainable packaging

Carbon footprint of the end-of-life phase [c1 to c4]

0.1396418564

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Pvc free

Yes

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Total lifecycle carbon footprint

158.12700492

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Scip number

99cae485-192a-4a91-bc99-8cce8f6405e4

Pvc free

Yes

End of life manual availability

ENVEOLI1403010EN

Take-back

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

Show all specifications

Documents & downloads

hide show

All
CAD Files and Packs
Technical Data Catalogues
End of Life Manual
Environmental Disclosure
Installation Instruction
Operating Manuals
Application Notes
eTechPub
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Modicon TM3 Safety module 1 Function, Cat 4 PL e/SIL CL3 (spring) 24VDC

Item Number: TM3SAF5RG

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

End of Life Manual

Environmental Disclosure

Installation Instruction

Operating Manuals

Application Notes

eTechPub

Certificates (MSDS)

Declaration of Conformity

Declaration of Conformity (Sustainability)

MODULE TM3 SAFETY ESTOP, CAT. 4, SPRING - 3D CAD

Discover catalog for EcoStruxure Automation Expert

Catalog Modicon TM3 Expansion IO modules for Modicon M221, M241, M251 and M262 plc_February 2023

Catalog Safety chain solutions & Safety functions English 07/2020

Modicon TM3 Safety Module Product End of Life Instruction

Modicon TM3 Safety Module Product Environmental Profile

TM3SAF5R, TM3SAF5RG Safety Module for monitoring EMERGENCY STOP circuits according to ISO 13849, IEC 62061, IEC 61058, Instruction Sheet

TM3SAF5R, TM3SAF5RG Safety Module for monitoring EMERGENCY STOP circuits according to ISO 13849, IEC 62061, IEC 61058, Instruction Sheet

Modicon TM3 - Safety Modules, Hardware Guide - SoMachine

Modicon TM3 (EcoStruxure Machine Expert - Basic) - Expansion Modules Configuration, Programming Guide

Modicon TM3 - Safety Modules, Hardware Guide

Schneider Electric VDMA66413 reliability values Libraries

Schneider Electric SISTEMA Library

English

TUEV Certificate TM3S AF / AK

Modicon, TM3X, Certificate, CSA, Ordinary Location

Modicon, TM3 Safety, Certificate, cULus, Ordinary Location

Modicon, TM3, Certificate, cULus, Ordinary Location

Modicon DoC TM3 Accessory

TM3SAF5RG China RoHS Declaration

TM3SAF5RG China RoHS Declaration

TM3SAF5RG China RoHS Declaration

TM3SAF5RG China RoHS Declaration

TM3SAF5RG China RoHS Declaration

TM3SAF5RG China RoHS Declaration

TM3SAF5RG China RoHS Declaration

TM3SAF5RG China RoHS Declaration

TM3SAF5RG EU RoHS Declaration

TM3SAF5RG EU RoHS Declaration

TM3SAF5RG EU RoHS Declaration

TM3SAF5RG EU RoHS Declaration

TM3SAF5RG EU RoHS Declaration

TM3SAF5RG EU RoHS Declaration

TM3SAF5RG EU RoHS Declaration

TM3SAF5RG EU RoHS Declaration

TM3SAF5RG REACh Declaration

TM3SAF5RG REACh Declaration

TM3SAF5RG REACh Declaration

TM3SAF5RG REACh Declaration

TM3SAF5RG REACh Declaration

TM3SAF5RG REACh Declaration

TM3SAF5RG REACh Declaration

TM3SAF5RG REACh Declaration

Related products

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller

Modicon M221 Logic controller
