Modicon TM3 Safety module 1 Function, Cat 3 PL d/SIL CL2 (screw) 24VDC
Item Number: TM3SAC5R
Specifications
Design
Range of product
Product or component type
Physical
Function of module
- emergency stop monitoring 1-channel wiring
- emergency stop monitoring 2-channel wiring
- monitoring of a movable guard with 2 switches and automatic start
Connections - terminals
- captive screw clamp terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34
- captive screw clamp terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34
- captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34
- captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34
- captive screw clamp terminals, removable terminal block 2 x 0.2...2 x 1.5 mm² flexible without cable end 13-14, 23-24, 33-34
- captive screw clamp terminals, removable terminal block 2 x 0.2...2 x 1.5 mm² solid without cable end 13-14, 23-24, 33-34
- captive screw clamp terminals, removable terminal block 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34
- captive screw clamp terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34
- captive screw clamp terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals
- captive screw clamp terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminals
- captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals
- captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals
- captive screw clamp terminals, removable terminal block 2 x 0.14...2 x 0.5 mm² flexible without cable end other terminals
- captive screw clamp terminals, removable terminal block 2 x 0.14...2 x 0.75 mm² solid without cable end other terminals
- captive screw clamp terminals, removable terminal block 2 x 0.25...2 x 0.34 mm² flexible with cable end, without bezel other terminals
- captive screw clamp terminals, removable terminal block 2 x 0.5 mm² flexible with cable end, with double bezel other terminals
Power consumption in w
- 0.2 W at 5 V DC
- 3.6 W at 24 V DC
Local signalling
Standards
- ISO 13849-1:2008
- ISO 13849-2:2012
- IEC 62061:2005
- IEC 61508:2010
- IEC 60947-5-1:2010
- IEC 61131-2:2007
- IEC 60204-1:2005
- IEC 60204-1:2009/A1
- IEC 61010-1:2010
- EN 50581:2012
Product certifications
- TÜV
- CSA 61010-2-201 (pending)
- CSA Haz Loc Class 1 Division 2 (pending)
- RCM
- ANSI Haz Loc Class 1 Division 2 (pending)
- EAC
- UL 61010-2-201
Marking
- EFUP 10
- RCM
- CSA
- UL
- TÜV
- CE
- EAC
Mounting support
- top hat type TH35-7.5 rail conforming to IEC 60715
- top hat type TH35-15 rail conforming to IEC 60715
- wall mount using attached fasteners
Height
Depth
Width
Net weight
Standards
- EN 1088/ISO 14119
- ISO 13850
- IEC 60947-1
- IEC 60204-1
- IEC 60947-5-1
Ambient air temperature for operation
Ambient air temperature for storage
Relative humidity
- 10...95 %, without condensation (in operation)
- 10...95 %, without condensation (in storage)
Ip degree of protection
Reach regulation
Eu rohs directive
Mercury free
China rohs regulation
Rohs exemption information
Environmental disclosure
Circularity profile
California proposition 65
Others
Package 1 bare product quantity
Package 2 bare product quantity
Device short name
Safety module application
Safety level
- can reach PL d/category 3 conforming to ISO 13849-1: 2008
- can reach PL d/category 3 conforming to ISO 13849-2: 2012
- can reach SILCL 2 conforming to IEC 62061: 2005
- can reach SIL 2 conforming to IEC 61508: 2010
Safety reliability data
- DC = 95 % conforming to ISO 13849-1
- PFHd = 5E-9 1/h conforming to IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A
- PFHd = 30E-9 1/h conforming to IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A
- MTTFd = 500 years conforming to ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A
- MTTFd = 85 years conforming to ISO 13849-1 60 operations/hour DC-13 24 V DC, <1 A
- SFF = 95 % conforming to IEC 61508-1
- HFT = 1 conforming to IEC 61508-1
- type = A conforming to IEC 61508-1
Synchronisation time between inputs
Output type
Number of safety circuits
Maximum switching voltage
- 230 V utilisation category AC-15 at 50 Hz (relay instantaneous opening)
- 24 V utilisation category DC-13 (relay instantaneous opening)
[us] rated supply voltage
Input protection type
[uc] control circuit voltage
Maximum cable distance between devices
Breaking capacity
- 360 VA holding AC-15 B300 relay output
- 3600 VA inrush AC-15 B300 relay output
Breaking capacity
Output thermal current
[ith] conventional free air thermal current
Associated fuse rating
- 4 A gG or gL for relay output conforming to IEC 60947-5-1
- 6 A fast blow for relay output conforming to IEC 60947-5-1
Minimum output current
Output voltage
Maximum response time on input open
[ui] rated insulation voltage
[uimp] rated impulse withstand voltage
Current consumption
Electrical connection
Electromagnetic compatibility
- electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2
- electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2
- susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to IEC 61000-4-3
- susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
- susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to IEC 61000-4-3
- magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8
- electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to IEC 61000-4-4
- electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to IEC 61000-4-4
- 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5
- conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6
- radiated emission - test level: 40 dBµV/m class A (24 V) conforming to IEC 55011
- radiated emission - test level: 47 dBµV/m class A (24 V) conforming to IEC 55011
Resistance to electrostatic discharge
- 8 kV in air conforming to IEC 61000-4-2
- 6 kV on contact conforming to IEC 61000-4-2
Resistance to electromagnetic fields
- 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
- 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3
- 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3
Resistance to magnetic fields
Resistance to fast transients
- 3 kV for power lines (DC) (DC) conforming to IEC 61000-4-4
- 2 kV for I/O lines conforming to IEC 61000-4-4
Surge withstand
- 1 kV power lines (DC) differential mode conforming to IEC 61000-4-5 DC
- 1 kV power lines (DC) common mode conforming to IEC 61000-4-5 DC
Resistance to conducted disturbances
Electromagnetic emission
- radiated emissions - test level: 50 dBµV/m class A ( 24 V DC) at 30-230 Hz conforming to IEC 61131-3
- radiated emissions - test level: 57 dBµV/m class A ( 24 V DC) at 230-1000 Hz conforming to IEC 61131-3
Pollution degree
Operating altitude
Storage altitude
Vibration resistance
Shock resistance
Mechanical robustness
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
Weee
Pvc free
Pvc free
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-

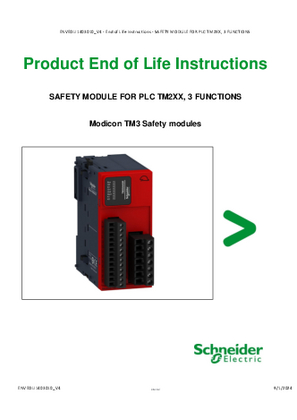

End of Life Manual
-

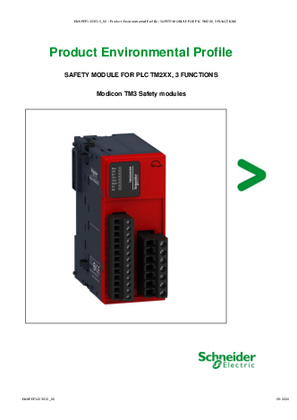

Environmental Disclosure
-
Installation Instruction
-
Operating Manuals
-
Application Notes
-
eTechPub
-
Certificates (MSDS)
-
Declaration of Conformity
Discover catalog for EcoStruxure Automation Expert
VERSION
9.0
DATE
10 May 2025
REVISION
9.0
Catalog Modicon TM3 Expansion IO modules for Modicon M221, M241, M251 and M262 plc_February 2023
VERSION
8.0
DATE
29 Jul 2024
REVISION
8.0
Catalog Safety chain solutions & Safety functions English 07/2020
VERSION
2.1
DATE
08 May 2024
REVISION
2.1

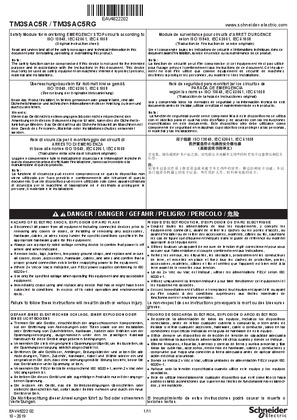

TM3SAC5R, TM3SAC5RG Safety Module for monitoring EMERGENCY STOP circuits according to ISO 13849, IEC 62061, IEC 61058, Instruction Sheet
VERSION
2.0
DATE
29 Sep 2023
REVISION
2.0

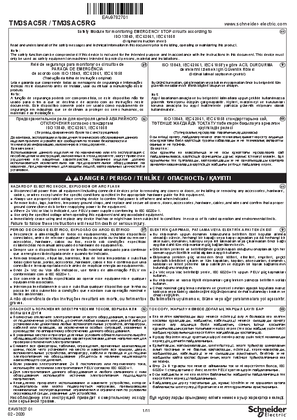

TM3SAC5R, TM3SAC5RG Safety Module for monitoring EMERGENCY STOP circuits according to ISO 13849, IEC 62061, IEC 61058, Instruction Sheet
VERSION
2.0
DATE
29 Sep 2023
REVISION
2.0
Modicon TM3 - Safety Modules, Hardware Guide - SoMachine
VERSION
4.0
DATE
20 May 2024
REVISION
4.0
Modicon TM3 (EcoStruxure Machine Expert - Basic) - Expansion Modules Configuration, Programming Guide
VERSION
5.0
DATE
09 May 2024
REVISION
5.0

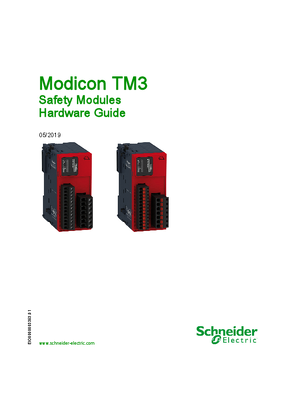

Modicon TM3 - Safety Modules, Hardware Guide
VERSION
2.0
DATE
29 Sep 2023
REVISION
2.0

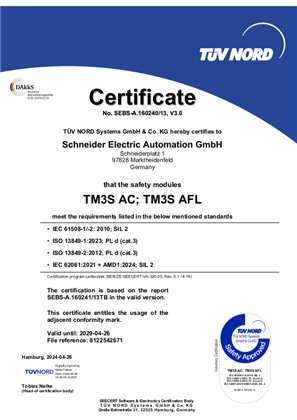

TUEV Nord Certificate TM3S AC / AFL
VERSION
1.1
DATE
30 Apr 2024
REVISION
1.1

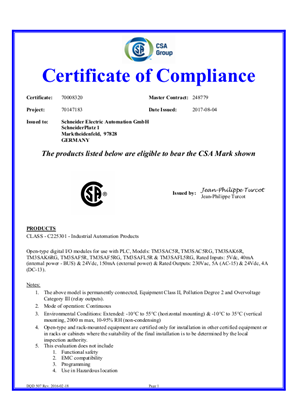

Modicon, TM3X, Certificate, CSA, Ordinary Location
VERSION
1.1
DATE
06 Oct 2022
REVISION
1.1

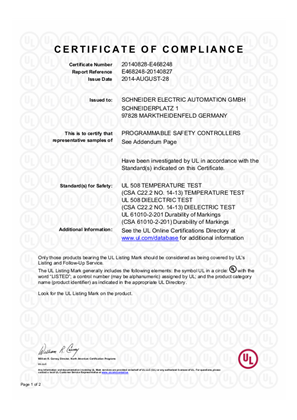

Modicon, TM3 Safety, Certificate, cULus, Ordinary Location
VERSION
1.0
DATE
06 Oct 2022
REVISION
1.0

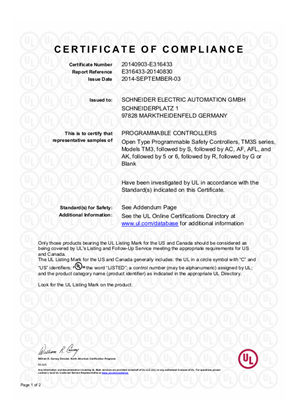

Modicon, TM3, Certificate, cULus, Ordinary Location
