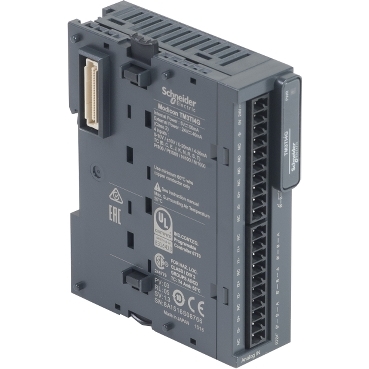

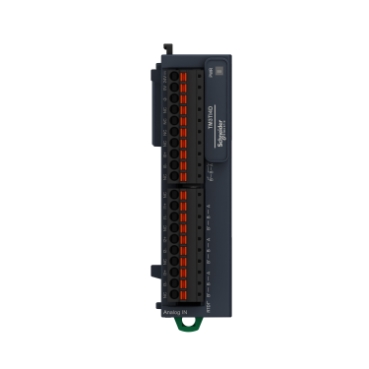

Modicon TM3 Analog input module 4 / temperature inputs (spring) 24VDC
Item Number: TM3TI4G
Specifications
Design
Range of product
Product or component type
Physical
Range compatibility
- Modicon M221
- Modicon M241
- Modicon M251
- Modicon M262
Type of cable
Local signalling
Mounting support
- top hat type TH35-15 rail conforming to IEC 60715
- top hat type TH35-7.5 rail conforming to IEC 60715
- plate or panel with fixing kit
Height
Width
Depth
Net weight
Ip degree of protection
Marking
Product certifications
- CE
- UKCA
- RCM
- EAC
- cULus
- cULus HazLoc
Standards
Ambient air temperature for operation
- -10...55 °C (horizontal installation)
- -10...35 °C (vertical installation)
Ambient air temperature for storage
Relative humidity
Standards
Product certifications
- CE
- UKCA
- RCM
- EAC
- cULus
- cULus HazLoc
Toxic heavy metal free
Mercury free
Rohs exemption information
Environmental disclosure
Eu rohs directive
Reach regulation
Reach regulation
China rohs regulation
Eu rohs directive
China rohs regulation
California proposition 65
Others
Legacy weee scope
Average percentage of recycled plastic content
Package 3 bare product quantity
Package 2 bare product quantity
Package 1 bare product quantity
Warranty duration(in months) bmecat
Weee label
Analogue input number
Analogue input type
- current 4...20 mA
- current 0...20 mA
- voltage 0...10 V
- voltage - 10...10 V
- thermocouple - 200...1000 °C thermocouple J
- thermocouple - 200...1300 °C thermocouple K
- thermocouple 0...1760 °C thermocouple R
- thermocouple 0...1760 °C thermocouple S
- thermocouple 0...1820 °C thermocouple B
- thermocouple - 200...400 °C thermocouple T
- thermocouple - 200...1300 °C thermocouple N
- thermocouple - 200...800 °C thermocouple E
- thermocouple 0...2315 °C thermocouple C
- temperature probe - 200...850 °C Pt 100
- temperature probe - 200...600 °C Pt 1000
Analogue input resolution
- 16 bits
- 15 bits + sign
Permissible continuous overload
- 13 V, analogue input type: voltage
- 40 mA, analogue input type: current
Input impedance
- <= 50 Ohm
- >= 1 MOhm
Sampling duration
Conversion time
Absolute accuracy error
- +/- 0.2 % of full scale at 25 °C for analogue input voltage/current
- +/- 0.2 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe
- +/- 0.2 % of full scale at 25 °C for thermocouple C 0...2315 °C
- +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C
- +/- 0.2 % of full scale at 25 °C for thermocouple R, S 200...1760 °C
- +/- 0.2 % of full scale at 25 °C for thermocouple B 300...1820 °C
- +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C
- +/- 0.2 % of full scale at 25 °C for thermocouple K 0...1300 °C
- +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C
- +/- 0.2 % of full scale at 25 °C for thermocouple J 0...1000 °C
- +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C
- +/- 0.2 % of full scale at 25 °C for thermocouple E 0...800 °C
- +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C
- +/- 0.2 % of full scale at 25 °C for thermocouple T 0...400 °C
- +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C
- +/- 0.2 % of full scale at 25 °C for thermocouple N 0...1300 °C
Repeat accuracy
Cross talk
Electrical connection
- 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply
- 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs
Lsb value
- 2.44 mV, 0...10 V
- 4.88 mV, - 10...10 V
- 4.88 µA, 0...20 mA
- 3.91 µA, 4...20 mA
- 0.1 °C
Insulation
- between output and supply at 1500 V AC
- between output and internal logic at 500 V AC
Immunity to microbreaks
Number of hw interfaces industrial ethernet
Number of hw interfaces profinet
Number of hw interfaces serial rs232
Number of hw interfaces serial rs422
Number of hw interfaces serial rs485
Number of hw interfaces serial tty
Number of hw interfaces parallel
Number of hw interfaces wireless
Number of hw interfaces usb
Number of hw interfaces other
Supporting protocol for ethercat
Supporting protocol for tcp/ip
Supporting protocol for profibus
Supporting protocol for can
Supporting protocol for interbus
Supporting protocol for asi
Supporting protocol for knx
Supporting protocol for modbus
Supporting protocol for data-highway
Supporting protocol for devicenet
Supporting protocol for suconet
Supporting protocol for lon
Supporting protocol for profinet io
Supporting protocol for profinet cba
Supporting protocol for sercos
Supporting protocol for foundation fieldbus
Supporting protocol for ethernet/ip
Supporting protocol for as-interface safety at work
Supporting protocol for devicenet safety
Supporting protocol for interbus-safety
Supporting protocol for profisafe
Supporting protocol for safetybus p
Supporting protocol for other bus systems
Radio standard bluetooth
Radio standard wi-fi 802.11
Radio standard gprs
Radio standard gsm
Radio standard umts
Io-link master present
System accessory
Temperature drift
Non-linearity
Dc supply voltage
Network type
Typical current consumption
- 45 mA at 5 V DC
- 50 mA at 5 V DC
- 35 mA at 24 V DC
- 40 mA at 24 V DC
Fieldbus connection over separate bus coupler possible
Bearing track assembly possible
Wall mounting/direct mounting possible
Front installation possible
Rack-assembly possible
Suitable for safety functions
Electromagnetic emission
- radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011
- radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011
Operating altitude
Pollution degree
Vibration resistance
- 3.5 mm (f = 5-8.4 Hz) on DIN rail
- 3 gn (f = 8.4-150 Hz) on DIN rail
Shock resistance
Performance level according to en iso 13849-1
Appendant operation agent (ex ia)
Appendant operation agent (ex ib)
Certified for ul hazardous location class i
Certified for ul hazardous location class ii
Certified for ul hazardous location class iii
Certified for ul hazardous location division 1
Certified for ul hazardous location division 2
Certified for ul hazardous location group a (acetylene)
Certified for ul hazardous location group b (hydrogen)
Certified for ul hazardous location group c (ethylene))
Certified for ul hazardous location group d (propane))
Certified for ul hazardous location group e (metal dusts)
Certified for ul hazardous location group f (carbonaceous dust)
Certified for ul hazardous location group g (non conductive dust)
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Green premium status for reporting
Total lifecycle carbon footprint
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the installation phase [a5]
Carbon footprint of the installation phase [a5]
Carbon footprint of the use phase [b2, b3, b4, b6]
Carbon footprint of the use phase [b2, b3, b4, b6]
Sustainable packaging
Carbon footprint of the end-of-life phase [c1 to c4]
Carbon footprint of the end-of-life phase [c1 to c4]
Pvc free
Take-back
Product contributes to saved and avoided emissions
Removable battery
Total lifecycle carbon footprint
Average percentage of recycled metal content
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
China rohs label
Pvc free
End of life manual availability
Take-back
Weee label
Warranty (in months)
