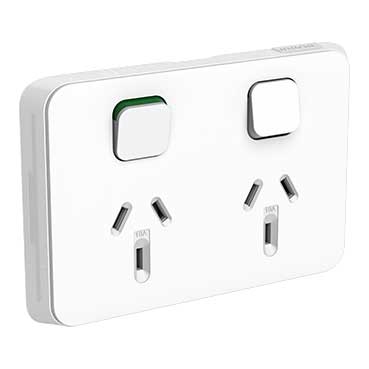

Clipsal Iconic Double Switch Power Point Horizontal Mount, 250V, 10A

Vivid White | Clipsal Iconic Double Switch Power Point Horizontal Mount, 250V, 10A

Clipsal Iconic Double Switch Power Point Horizontal Mount, 250V, 10A

Item Number: 3025-VW
Retail
$20
RRP (Inc. GST)

The Iconic Double Power Point has a Grid Plate with innovative protective flaps, which help prevent screw access after installation (by a qualified electrician); which means skins can be changed safely at any time.

Product Dimensions

Width icon

Width120 mm

Height icon

Height78 mm

Embedding depth icon

Embedding depth18 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
Clipsal Iconic gridplate 3025-15G Front view
Clipsal Iconic 3025 grid rear view
Iconic Switched Socket Exploded View on Wall

Specifications

Design

Range

Clipsal Iconic

Product or component type

switched socket

Colour tint

vivid white (VW)

Sustainable offer status

Green Premium product

Physical

Device presentation

complete product

Outlet poles configuration

2P + E with shutter

Outlet standard

Australian

Device mounting

flush

Number of power socket outlets

2

Number of rocker

2

Range compatibility

Outlet standard description

with earthing contact

Outlet standard

Australian/New Zealand

Ground lug position

straight 180° position

Fixing mode

by screw

Installation direction

horizontal

Type of packing

polybag

Quantity per set

set of 10

Sale per indivisible quantity

1

Rated current

10 A at 250 V AC 50 Hz

Electrical durability

12000 cycles

Connections - terminals

3 screw terminals

Screwdriver shape

  • Philips No 2
  • square drive no 1 (SQ1)
    • Clamping connection capacity

    • 1 x 2.5...4 x 2.5 mm² for rigid cable(s)
    • 1 x 2.5...4 x 2.5 mm² for stranded cable(s)
    • 1 x 2.5...4 x 2.5 mm² for flexible cable(s)
      • Wire stripping length

        16 mm

        Height

        78 mm

        Width

        120 mm

        Depth

        27 mm

        Embedding depth

        18 mm

        Net weight

        0.116 kg

        Ambient air temperature for operation

        0-45 °C

        Relative humidity

        10-95 %

        Standards

        AS/NZS 3112

        Product certifications

        RCM

        REACh Regulation

        Free of Substances of Very High Concern above the threshold

        REACh free of SVHC

        Yes

        EU RoHS Directive

        Compliant

        Toxic heavy metal free

        Yes

        Mercury free

        Yes

        RoHS exemption information

        Yes

        China RoHS Regulation

         Pro-active China RoHS declaration (out of China RoHS legal scope)

        Environmental Disclosure

        ENVPEP120506EN

        Material

        Material

      • PC (polycarbonate): fixing frame
      • PP (polypropylene): rocker
      • POM (polyoxymethylene): shutter
      • PC (polycarbonate): cover frame
      • ABS (acrylonitrile butadiene-styrene): cover frame
        • Others

          Package 1 Weight

          121 g

          Package 1 Height

          40 mm

          Package 1 width

          80 mm

          Package 1 Length

          120 mm
          Show all specifications

          Frequently Asked Questions

          hide show

          I have made name changes to my Wiser devices in Wiser by SE how can I get these changes to work with Google voice control?

          When setting up Google home and voice control make sure that any changes that are made to devices in Wiser by SE in the naming of mechs or adding/removing items are done on the device that the speaker is linked within google home. Making sure to refresh the Google Home App after the changes are made in Wiser by SE.

          The changes will not be recognized If they are done on a device that is not the creator of the Home within the Google Home App that is linked with the voice control speaker. This can be solved by having the creator refresh his Google Home.
          Note: Only one Wiser by SE account should be linked with Google home per household. This person should then create the home within Google Home and add members to this home. If more than one Wiser by SE account in the same home is linked to Google Home this can create ‘doubles’ of the Wiser devices within the Google Home App.


          How do I swap my Wiser connected socket outlet from BLE to Zigbee?

          If the Socket is currently paired with Wiser by SE, remove/delete the socket from the App. Go to the Bluetooth settings on your phone/device and forget the socket that you just removed from the App.

          Download the Wiser Room App, if you don’t have it on your smart device, and open it. Within Wiser Room tap Edit at the top right and select ‘Add New Device’. Follow the instructions and pair your socket with Wiser Room. Once paired in Wiser Room, tap on the socket and then tap on the cog to enter the settings of the device. Tap on Advanced Settings, tap on Device Information and then proceed to update the Firmware of the socket.

          Once the firmware update is completed and you can re-connect to the device once again check to make sure there are no more firmware updates. Once confirmed remove the socket from Wiser Room App by tapping Edit in the top right and then delete the device. Open the Bluetooth settings on your phone and once again remove the socket from here.

          To then swap the socket from Bluetooth to Zigbee tap the touch switch LED panel 12 times. When the swap is completed you will see both the left and right LED on the panel blinking together indicating you are in Zigbee mode. Tap the touch switch panel to stop the blinking.

          In Wiser by SE, go to the home you wish to add the socket to and tap the plus symbol in the top right corner. Go to the Add with Hub option and select the Iconic Socket and follow the instructions, tap the LED panel 3 times as per the animation and confirm that both LED’s on the panel are flashing.


          Wiser Product Warranty

          The Hub, IR converter and all Sensors have a warranty of 12 months.
          The 2AX (41E2PBSWM), 10AX (41E10PBSWM), Dimmer (41EPBDWCLM), Micro module dimmer (CLP5010WDZ), Micro module switch (CLP5011WSZ), Micro module blinds (CLP5015WBZ) and the Connected Socket Outlet (3025CSG) all have a 2-year warranty.
          This information can be found on the product installation instructions.


          What is the difference between the product code I have ordered and the same product with a ‘Z’ added to the end?

          The products are the same but are either in Bluetooth mode or Zigbee out of the box. For example, the 3025CSG connected socket outlet is in Bluetooth and the 3025CSGZ connected socket will be in Zigbee mode.
          This is designed to save time on install and commissioning of a Wiser system where the Hub is used. Using a default Zigbee product, means there is no need to go through the process of changing modes from BLE to Zigbee to connect to the Wiser Hub.


          Will an Iconic Pro series cover plate fit on an Iconic standard series grid plate?

          It will not fit.
          Iconic Pro series covers/skins will only fit pro series grid plates for all switches & power points.
          This also mean that standard Iconic series covers/skins will not fit pro series grid plates.


          . P3025C-BK


          Is there a plug in Night Light available in the Clipsal range?

          Yes, there is a nightwalk light skin in the Iconic range.
          The part refference is 3025NW for Clipsal and PDL306 for PDL.

          Please see the below links for further information.
          3025NW - Clipsal - https://www.clipsal.com/Trade/Products/ProductDetail?catno=3025NW
          PDL306 - PDL - https://www.pdl.co.nz/products/detail?CatNo=PDL306&backto=%2Fsearch%3Fq%3DPDL306&tab-document-1=0

          *Note this product needs to be fitted to the Iconic double horizontal socket grid.
          Show More
          Exploded view of the Clipsal Iconic skins range; Styl, essence and Standard.

          Range

          Clever. Customisable. Future-ready

          Iconic is a modern electrical accessories range based on a slim, sleek, clean design that is easy to customise with innovative modular mechanisms and grids with changeable skins and rockers.

          Iconic’s interchangeable standard, Styl and Essence skins offer great customisation to complement a specific decor or lifestyle.
