Clipsal Iconic Connected AC Fan Controller BLE

Back to Wiser Iconic Connected Switches, Dimmers and Fan Controllers Home Wiser Wiser Iconic Connected Switches, Dimmers and Fan Controllers

Vivid White | Clipsal Iconic Connected AC Fan Controller BLE

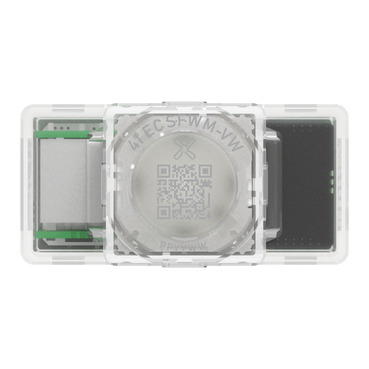

Clipsal Iconic Connected AC Fan Controller BLE

Item Number: 41ECSFWM-VW

The Iconic Connected AC ceiling fan controller provides added comfort and convenience by making any 3 speed 240V ceiling fan part of a Wiser smart home. With BLE default mode, control from the Wiser by SE app or wall switch, with a time delay option. The modular mechanism design provides installation flexibility and simple upgrade options for Iconic wall plates. Convert from BLE to Zigbee mode to upgrade to a full Wiser smart home.

Where To Buy

Datasheet

Download

Product Dimensions

Width icon

Width48 mm

Height icon

Height22 mm

Embedding depth icon

Embedding depth70 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Wiser Technical Catalogue

Download Catalogue (PDF 8.2MB)
wiser iconic fan controller
iconic wiser fan push buttons
wiser iconic fan controller
iconic wiser fan push buttons

Features

  • Smart control of 240V 3 speed ceiling fans
  • Modular 40 mech design providing flexibility
  • Simply wire the mech to the 3-speed capacitor provided with any 240VAC ceiling fan
  • BLE and Zigbee default mode options offer scalability
  • BLE – Point to point app control - on/off, speed, and timer (1s-24hr)

Features

  • Zigbee – Integrate with the Wiser Hub for home automation functions (e.g., Automatic fan speed control based on room temperature, Moments (scenes) to turn all fans on/off or change speeds from one button press, schedules, timers, multiway and voice control)
  • Simple push button control (On, low, med, high, off)
  • Control up to 2 fans from one device
  • LED indicators for speeds and switch location at night

Specifications

Design

Product brand

Clipsal

Range of product

Iconic

Range

Iconic

Aesthetic name

  • Iconic
  • Iconic Essence
  • Iconic Styl

Product or component type

connected switch

Colour tint

vivid white (VW)

Sustainable offer status

Green Premium product

Physical

Device presentation

mechanism

Number of rocker

1

Actuator

push-button

Load type

230 V AC fan: 150 W

[Ue] rated operational voltage

220...240 V AC 50 Hz

Protection type

  • over temperature protection
  • thermal protection

Local signalling

fan speed: 1 LED (amber/green/red)

Control type

  • OFF-LOW-MEDIUM-HIGH fan speed controller fan speed control
  • by mobile application

Communication network type

wireless (2.4-2.4 GHz), 2.5 mW at < 50="">

Mounting support

grid

Device mounting

flush

Fixing mode

clip-in

Fixing center

84 mm

Type of installation

indoor installation

Embedding depth

70 mm

Depth

58 mm

Width

48 mm

Height

22 mm

Ambient air temperature for operation

-10...50 °C

IP degree of protection

IP20

Relative humidity

5...90 % non-condensing

Standards

  • AS/NZS 60669.2.1 safety
  • AS/NZS 60669.2.1 EMC
  • AS/NZS 4268 radio

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

ENVPEP2001003EN

Circularity Profile

ENVEOLI2001003EN

Material

Material

plastic

Others

Package 1 Bare Product Quantity

1

Concentrator compatibility

Wiser hub generation 1

Mobile App name

Wiser by SE

Technology type

electronic

Fuse type

220...240 V 50 Hz

Number of modules

1 module

Signalling function

fan speed

Software name

Wiser by SE App: fan control

Maximum number of connected devices

3 (switch)

Technology type

  • bluetooth low energy default
  • Zigbee

Memory description

  • backup memory - date and time for 6 h
  • backup memory - program for indefinite period

Main colour tint

vivid white

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.2 cm

Package 1 Width

8 cm

Package 1 Length

9.6 cm

Package 1 Weight

72 g

Unit Type of Package 2

PAL

Number of Units in Package 2

2304

Package 2 Height

95 cm

Package 2 Width

114 cm

Package 2 Length

114 cm

Package 2 Weight

289.136 kg

Unit Type of Package 3

CAR

Number of Units in Package 3

48

Package 3 Height

23 cm

Package 3 Width

26.7 cm

Package 3 Length

34.1 cm

Package 3 Weight

4.32 kg
Show all specifications
wiser smart home

Range

A Clipsal Wiser Smart Home enables you to personalise your home to fit your needs and manage it with one simple app. It’s a simple solution that can be easily integrated into any home, old or new.

All Wiser Smart Home products are also compatible with most of Clipsal’s existing wiring devices, including the Iconic switch range, making design and function upgrades simple and seamless.

With Google Home or Amazon Echo, you can also control your Clipsal Wiser Smart Home with voice commands.

With a Clipsal Wiser Smart Home, you can take control of your home the way that it suits you.
