Clipsal Iconic Wiser Connected Smart Switch, Zigbee Default Mode, ControlLink 10 X, 240V

Vivid White | Clipsal Iconic Wiser Connected Smart Switch, Zigbee Default Mode, ControlLink 10 X, 240V

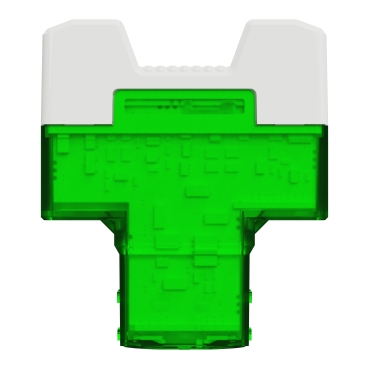

Clipsal Iconic Wiser Connected Smart Switch, Zigbee Default Mode, ControlLink 10 X, 240V

Item Number: 41E10PBSWMZ-VW

The Iconic Push Button Connected Smart Switch 10 AX is suitable for hard-wired multiway switching. It can be controlled through ControlLink, the push button on the wall, remotely using the Wiser by SE app or voice command. With default Zigbee mode it can connect to the Wiser Hub for full smart home automation control and functions.

Datasheet

Product Dimensions

Width icon

Width48 mm

Height icon

Height22 mm

Embedding depth icon

Embedding depth70 mm

Wiser Technical Catalogue

Download (PDF 7.4MB)

Specifications

Design

Product brand

Clipsal

Range

Iconic

Product or component type

connected switch

Colour tint

vivid white (VW)

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Device presentation

mechanism

Number of rocker

1

Actuator

push-button

Load type

  • dimmable LED lighting driver: 10 A
  • LED lighting driver (non-dimmable): 10 A
  • electronic transformer: 10 A
  • medium voltage halogen lamp: 10 A
  • linear fluorescent ballast: 10 A
  • inductive: 6 A (cos phi =0.6 )
  • resistive: 15 A
  • motor: 10 A

[Ue] rated operational voltage

220...240 V AC 50 Hz

Protection type

  • over temperature protection
  • thermal protection

Local signalling

LED

Control type

  • push-button
  • by mobile application
  • multi-way control via ControlLink

Communication network type

wireless (2.4-2.4 GHz), 2.5 mW at < 50="">

Wiring configuration

3-wire

Mounting support

grid

Device mounting

flush

Fixing mode

clip-in

Fixing center

84 mm

Type of installation

indoor installation

Embedding depth

70 mm

Depth

56 mm

Width

48 mm

Height

22 mm

IP degree of protection

IP20

Relative humidity

5...90 % non-condensing

Standards

  • AS/NZS 60669.2.1 safety
  • AS/NZS 60669.2.1 EMC
  • AS/NZS 4268 radio

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

ENVPEP2001003EN

Circularity Profile

ENVEOLI2001003EN

Material

Material

plastic

Others

Package 1 Bare Product Quantity

1

Concentrator compatibility

Wiser hub generation 1

Mobile App name

Wiser by SE

Technology type

electronic

Software name

Wiser App

Maximum number of connected devices

  • 3 (switch)
  • 2 (ControlLink module)

Cable length

50 m for ControlLink module

Technology type

  • Zigbee default
  • bluetooth low energy

Memory description

  • backup memory - date and time for 6 h
  • backup memory - program for indefinite period

Main colour tint

vivid white

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4 cm

Package 1 Width

7.8 cm

Package 1 Length

9.5 cm

Package 1 Weight

91 g
Show all specifications

Frequently Asked Questions

hide show

Where can I find the files and how to update the firmware on my Zigbee Wiser devices when I don’t have the Wiser Hub?

Firmware for the Wiser devices is updated via the Wiser by SE app and is done via the mode of connection. If your device is connected in Bluetooth in Wiser by SE, you will have access to Bluetooth firmware updates and if your Wiser device is connected in Zigbee via the Wiser Hub to Wiser by SE, you will have access to Zigbee firmware updates.
Without the Wiser Hub you will be unable to connect Wiser devices via Zigbee in Wiser by SE and therefore will be unable to update your devices.
We do not offer any other methods for updating firmware on the devices.


I want to put in two-way switching but can’t run the cables between the mechanisms. Can I achieve wireless two-way switching with Wiser Zigbee?

This can be done with our 2AX, 10AX or Micro Module Switch along with the Hub. At one end you will need an Active, Neutral and Load wiring. At the other end you will need Active and Neutral only. You can then create Automations to achieve the 2-way.
You need to create two automations for a 2-way:

  1. when switch A and switch B are ON, turn switch A and switch B ON
  2. when switch A and switch B are OFF, turn switch A and switch B OFF


This can be expanded to 3-way, 4-way etc by simply adding the other switches into the respective ON and OFF automations.


2 way ON Automation2 way OFF Automation

What is the Standby Power of my Wiser devices?

Wiser Micro Module Switch - CLP5011WSZ/PDL5011WSZ - 0.4 W
Wiser Micro Module Dimmer - CLP5010WDZ/PDL5010WDZ - 0.4 W
Wiser Micro Module Blind - CLP5015WBZ/PDL5015WBZ - 0.4 W
Wiser Hub - CLP501902/PDL501902 - 0.2 W
Bluetooth 2AX - 41E2PBSWM-VW/PDL356PB2MBTW-VW - 0.25 W
Bluetooth 10AX - 41E10PBSWM-VW/PDL356PB10MBTW-VW - 0.20 W
Bluetooth Dimmer - 41EPBDWCLM-VW/PDL354PBDMBTW-VW - 0.50 W
Bluetooth Socket - 3025CSG/PDL395CSG - 0.30 W
ZigBee 2AX - 41E2PBSWMZ-VW/PDL356PB2MBTZ-VW - 0.25 W
ZigBee 10AX - 41E10PBSWMZ-VW/PDL356PB10MBTZ-VW - 0.20 W
ZigBee Dimmer - 41EPBDWCLMZ-VW/PDL354PBDMBTZ-VW - 0.50 W
ZigBee Socket - 3025CSGZ/PDL395CSGZ - 0.30 W

How Can I Change a Wiser Mechanism from Zigbee to Bluetooth

To swap a Zigbee enabled switch to Bluetooth, press the switch 4 times and hold on the 4th press for 20+ seconds.
When holding the button in at the 10 second mark a slow flashing red led should be visible, releasing at this point would be a factory reset. Continue to hold until the red led starts flashing rapidly at the 20 second mark and then release.
This method of changing the mode of the mechanism will work Zigbee to Bluetooth and also Bluetooth to Zigbee.


My Wiser switches are not responding to being pressed or control via Wiser by SE, what can I do to troubleshoot the issue?

Begin by taking note of the product/s that are not responding and are they doing anything else different from normal operation? For example, is the backlight flashing in a sequence, does the product respond to three presses and shows the pairing led colouring and what colours are seen. If what is suggested below does not resolve the switches not responding these details can assist the Tech Support team in diagnosing what is occurring.

Once this has been taken note of begin by power cycling your Wiser Hub. This can be done by removing the micro-USB where it connects to the Hub or by turning off the power outlet that supplies power to the Hub. Leave it off for 10 – 15 seconds and then reconnect the Wiser Hub and wait until it completes its reboot procedure at the end of which only 2 LED indicators should be visible on the Wiser Hub. With LEDs at top of Hub - if connected with Ethernet cable (Right and Left Led will turn ON). If connect via WiFi (Middle and Right Led will turn ON)

If this fails to resolve the issue the product failing to respond may need to be power cycled itself. If confidant and able, access the switchboard that has the RCBO’s or Circuit breakers that supply power to the products. Turn the applicable supply off for 10 – 15 seconds and then turn this supply back on.

Note: If uncertain contact your installing electrician for the Wiser system who may advise what is supplying power to the Wiser products. If fuses are installed in your switchboard it is recommended to have your electrician remove the fuse and then re-fit after 10 – 15 seconds. Fuses can be extremely dangerous if not correctly handled by a qualified electrician.

If the switches are still unresponsive contact Tech Support via phone – Australia: 13 73 28 (13 SEAU) New Zealand 0800 652 999, email - techsupport.pz@se.com or via online chat through a link on our support page https://www.clipsal.com/clipsal-support/contact-us or https://www.pdl.co.nz/support


I am getting a message in Wiser by SE ‘Network Unavailable. Please check your phones network settings’ what does this mean for my control of the products?

This message occurs when there is no mobile data connection or a WiFi connection to your device. When this occurs, you will still be able to connect to your Bluetooth switches/dimmers as these just require Bluetooth to be enabled on your device. It will prevent access/control of Zigbee devices and IP Cameras as this requires access to the cloud/internet. Via WiFi, without internet, you may still get control of the Zigbee switches/dimmers but not the IP Cameras.

Show More
Connected Switches
Connected Switches exploded view

Range

A Clipsal Wiser Smart Home enables you to personalise your home to fit your needs and manage it with one simple app. It’s a simple solution that can be easily integrated into any home, old or new.

All Wiser Smart Home products are also compatible with most of Clipsal’s existing wiring devices, including the Iconic switch range, making design and function upgrades simple and seamless.

With Google Home or Amazon Echo, you can also control your Clipsal Wiser Smart Home with voice commands.

With a Clipsal Wiser Smart Home, you can take control of your home the way that it suits you.
