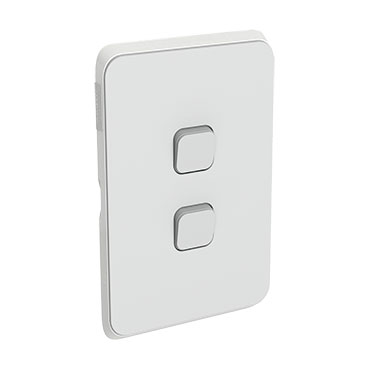

Clipsal Iconic Switch Plate Skin 2 Gang, Horizontal/Vertical Mount, Clip-On

Vivid White | Clipsal Iconic Switch Plate Skin 2 Gang, Horizontal/Vertical Mount, Clip-On

Clipsal Iconic Switch Plate Skin 2 Gang, Horizontal/Vertical Mount, Clip-On

Item Number: 3042C-VW

Build this product i

Retail
$6.16
RRP (Inc. GST)

A clean design ensures the Clipsal Iconic Switch Plate Skin is adaptable for residential environments. This switch skin can be mounted in either orientation using convenient clip-on fixing so you can upgrade your space in no time.

Colour Vivid White (VW)
  • Vivid White 1 PCE
  • Anthracite 1 PCE
  • Cool Grey 1 PCE
  • Warm Grey 1 PCE
  • Extra Vivid White 1 PCE

Product Dimensions

Width icon

Width78 mm

Height icon

Height120 mm

Depth icon

Depth9 mm

See full specifications

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
Clipsal Iconic 3025 exploded view
3043G Rear Perspective

Specifications

Design

Range

Clipsal Iconic

Aesthetic name

Iconic

Product or component type

cover frame

Colour tint

vivid white (VW)

Product destination

switch

Surface treatment

untreated

Physical

Type of packing

polybag

Quantity per set

set of 20

Range compatibility

switch

Device mounting

flush

Number of rocker

2

Installation direction

horizontal/vertical

Fixing mode

clip-on

Height

120 mm

Width

78 mm

Depth

9 mm

Net weight

0.02 kg

Ambient air temperature for operation

0-45 °C

Relative humidity

10-95 %

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Not compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

ENVPEP120506EN

Material

Material

  • PC (polycarbonate): skin
  • ABS (acrylonitrile butadiene-styrene): skin
    • Others

      Package 1 Weight

      20.98 g

      Package 1 Height

      9.46 mm

      Package 1 width

      83.3 mm

      Package 1 Length

      124.79 mm
      Show all specifications

      Frequently Asked Questions

      hide show

      Is Iconic intermediate mechanism available assembled on a switch plate?

      Unfortunately, the Iconic intermediate mechanism is not available assembled on a plate. It can put together using below part numbers;
      40MIL  - Clipsal Iconic Intermediate Switch Mechanism, 250V, 10A, LED.
      +
      3041G - Clipsal Iconic - Switch-Grid, Vertical/Horizontal Mount, 1 Gang
      +
      3041C - Clipsal Iconic - Skin Switch Plate Cover, Vertical/Horizontal Mount, 1 Gang
      For further information, please visit the below links:
      https://www.clipsal.com/Trade/Products/ProductDetail?catno=40MIL
      https://www.clipsal.com/Trade/Products/ProductDetail?catno=3041G
      https://www.clipsal.com/Trade/search-results?q=3041C


      Is 30N24 ,AC or DC rated??

      They do both AC and DC.

      The Clipsal 30M20 is discontinued, What is the alternative part?

      The alternative part for the Clipsal 30M20 is the 30USM: Universal Rocker Switch, 1-Way/2-Way, 250VAC, 20A.


      Is the Clipsal 30N 24v DC

      Yes the 30N24 is suitable for AC and DC loads

      What will make up a double pole/double throw switch with a 24V Neon indicator in a plate

       Part codes you need  30MD2 + 30N24 + C2032VH

      Is the Indicator neon mechanism 30N24 DC compatible ?

      Yes, the 30N series can be used on either AC or DC voltages.
      Show More

      Range

      The Clipsal Iconic range is founded on a specialised electrically safe grid plate.
      Once installed by an electrician, it’s safe for anyone to change the skins at any time by simply clipping off the standard skins and snapping on a new design.

      Iconic’s interchangeable standard, Styl and Essence skins provide clever options tailored to suit a homes’ decor or family’s lifestyle.
