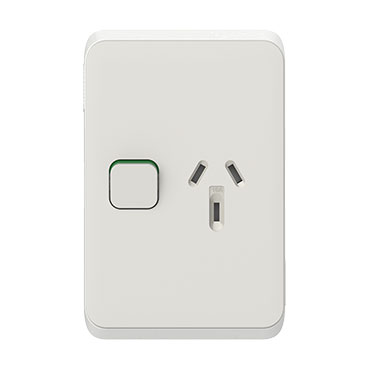

Clipsal Iconic Single Power Point Skin Vertical Mount, 250V, 10A, Clip-On

Vivid White | Clipsal Iconic Single Power Point Skin Vertical Mount, 250V, 10A, Clip-On

Clipsal Iconic Single Power Point Skin Vertical Mount, 250V, 10A, Clip-On

Item Number: 3015VC-VW

Build this product i

Retail
$12.46
RRP (Inc. GST)

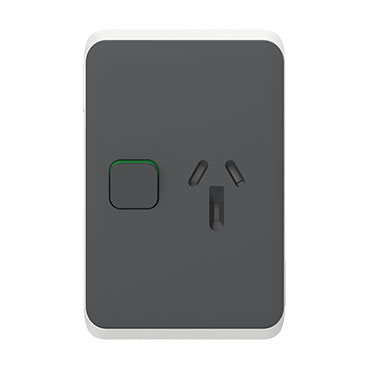

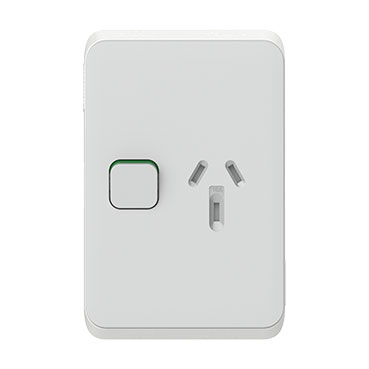

This Clipsal Iconic Single Power Point Skin is vertically mounted and available in a standard white or subtle colour variants. It offers a choice of edges; solid vivid white or translucent edges that meld with its surroundings.

Product Dimensions

Width icon

Width78 mm

Height icon

Height120 mm

Depth icon

Depth12 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
Clipsal Iconic 3025 exploded view
3043G Rear Perspective

Specifications

Design

Range

Clipsal Iconic

Aesthetic name

Iconic

Product or component type

cover frame

Colour tint

vivid white (VW)

Product destination

switched socket

Surface treatment

untreated

Sustainable offer status

Green Premium product

Physical

Type of packing

polybag

Quantity per set

set of 20

Range compatibility

switched socket

Device mounting

flush

Number of rocker

1

Number of power socket outlets

1

[In] rated current

10 A

Installation direction

vertical

Fixing mode

clip-on

Height

120 mm

Width

78 mm

Depth

12 mm

Net weight

0.02 kg

Ambient air temperature for operation

0-45 °C

Relative humidity

10-95 %

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP120506EN

Material

Material

  • PC (polycarbonate): skin
  • ABS (acrylonitrile butadiene-styrene): skin
    • Others

      Package 1 Height

      14 mm

      Package 1 Length

      80 mm

      Package 1 width

      121 mm

      Package 1 Weight

      23 g
      Show all specifications

      Frequently Asked Questions

      hide show

      What are the mounting centers for the 3015/4 quad outlet?

      ​The mounting centers for the 3015/4 quad outlet is 179.8mm.

      Do you have a single vertical outlet that is double pole?

      Yes,we do have  a single vertical outlets that are double pole. The part numbers are 2015VD-WE and C2015VD-WE.

      What is the mounting bracket to suit part number 3015/4?

      The part number is 3155H4 at this stage anticipated release is December 2016.

      What is part number for Iconic cover to suit 3015/4?

      The part number for Iconic cover to suit is 3015/4C.

      Does the Anthracite Skin for the 3015/4 come with Anthracite Dollies?

      Yes, the dollies are included and the same colour as the skin.

      For more information, please refer to the link:
      https://www.clipsal.com/Trade/Products/ProductDetail?catno=3015/4C-WY





      Is there a wall box to suit the Clipsal 3015/4 or PDL395H4 ICONIC quad outlet?

      The 3157/4PRM is a 54mm deep plastic wall box to suit ICONIC quad outlets.

      Clipsal Iconic - Moulded Plastic Wall Box to Suit Iconic Quad Socket with Sliding Recessed Nuts - Deep Type (54mm Depth)
      See link :https://www.clipsal.com/products/detail?CatNo=3157/4PRM&backto=/search?q=3157/4PRM&tab-document-1=0&itemno=3157/4PRM
      3157/4PRM

      The other flush mounting accessory option is a Clipsal 3155H4 or PDL155H4 which is a metal stud mount bracket.
      See link for more details:https://www.clipsal.com/products/detail?CatNo=3155H4&backto=/search?q=3155H4&tab-document-1=0&itemno=3155H4

      3155H4

      Show More

      Range

      The Clipsal Iconic range is founded on a specialised electrically safe grid plate.
      Once installed by an electrician, it’s safe for anyone to change the skins at any time by simply clipping off the standard skins and snapping on a new design.

      Iconic’s interchangeable standard, Styl and Essence skins provide clever options tailored to suit a homes’ decor or family’s lifestyle.
