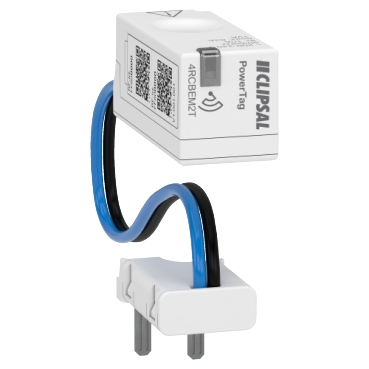

PowerTag, Energy sensor Wiser Energy Phase Neutral 63A 1P+N top position, 63A 1P+N top position

Home ProductsCircuit ProtectionPowerTagEnergy sensor Wiser Energy Phase Neutral 63A 1P+N top position

PowerTag, Energy sensor Wiser Energy Phase Neutral 63A 1P+N top position, 63A 1P+N top position

Item Number: 4RCBEM2T

Datasheet

Product Dimensions

Width icon

Widthsensor element: 18 mm|base unit: 18 mm

Height icon

Heightsensor element: 20 mm|base unit: 8 mm

Depth icon

Depthsensor element: 44.5 mm|base unit: 28 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PowerLogic

Product or component type

energy sensor

Product brand

Clipsal

Market segment

residential: breaker voltage monitoring|residential: overload alarm

Product destination

switchboard

Physical

Range compatibility

Resi MAX & MAX4

Mounting support

on circuit breaker

Mounting mode

by screws (terminals)

[ue] rated operational voltage

200...240 V AC, +/- 20 %

Standards

IEC 61557-12|IEC 61010-1|IEC 61010-2-030|IEC 61326-1|ETSI EN 300 328|ETSI EN 301 487-1

Height

sensor element: 20 mm|base unit: 8 mm

Width

sensor element: 18 mm|base unit: 18 mm

Depth

sensor element: 44.5 mm|base unit: 28 mm

Net weight

18 g

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...85 °C

Ip degree of protection

IP20 conforming to IEC 60529

Ik degree of protection

IK05

Relative humidity

0...95 % at 45 °C conforming to IEC 60721...3-3

Environmental characteristic

dustproof class 3S3 conforming to IEC 60721-3-3|salt mist class 3C2 conforming to IEC 60721-3-3|indoor use

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2201022

Circularity profile

ENVEOLI2201022

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Product name

PowerTag Wiser P63

Poles description

1P + N

Max current

63 A

Product specific application

load monitoring|circuit monitoring|overload alarm|energy production monitoring (photovoltaic)|energy management

Concentrator compatibility

Wiser IP module

Type of measurement

current|voltage|active energy

Accuracy class

class 1 current conforming to IEC 61557-12|class 0.5 voltage conforming to IEC 61557-12|class 1 active energy conforming to IEC 61557-12

Mounting location

top

Connection pitch

9 mm Ph/N

Event management

voltage loss with measured current at voltage loss

Transmission support medium

radio frequency 2.4-2.4835 GHz conforming to IEEE 802.15.4

Emission power

10 mW

Form factor

phaseNeutral

Electrical connection

connector tooth

Cable cross section

1 rigid cable 1.5...16 mm²|2 stranded cable 1.5...2.5 mm²|2 rigid cable 1.5...2.5 mm²|1 stranded cable 1.5...16 mm²

Network frequency

50 Hz|60 Hz

Power consumption in va

1 VA

Quality labels

CE

Directives

2014/53/EU - radio equipment directive

Operating altitude

0...2000 m

Overvoltage category

III conforming to IEC 61010-1

Measurement category

category III conforming to IEC 61010-2-030

Pollution degree

3

Vibration resistance

3M4 conforming to IEC 60721-3-3

Electromagnetic compatibility

residential electromagnetic environment conforming to IEC 61326-1|radiated EMC conforming to ETSI EN 301 489-17|electromagnetic emission conforming to IEC 62311

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.500 cm

Package 1 width

7.500 cm

Package 1 length

8.000 cm

Package 1 weight

48.000 g

Unit type of package 2

S02

Number of units in package 2

30

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

1.773 kg

Scip number

a0d16b3b-9242-483b-bccf-ee538f315f7b

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
