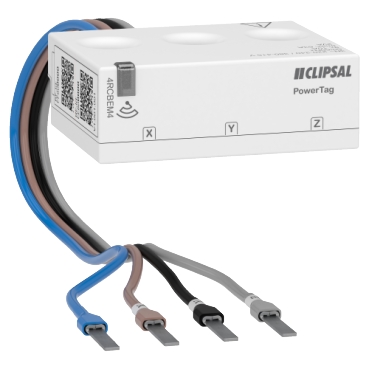

PowerTag Energy sensor Wiser Energy Flex 63A 3P+N top and bottom position 63A 3P+N top and bottom position

Home ProductsCircuit ProtectionPowerTagEnergy sensor Wiser Energy Flex 63A 3P+N top and bottom position

PowerTag Energy sensor Wiser Energy Flex 63A 3P+N top and bottom position 63A 3P+N top and bottom position

Item Number: 4RCBEM4

Where To Buy

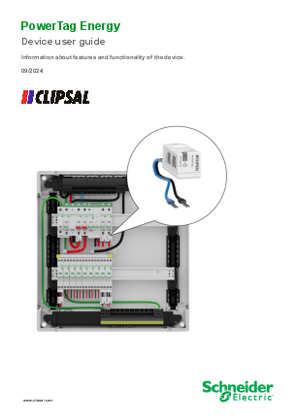

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Widthsensor element: 54 mm

Height icon

Heightsensor element: 19.5 mm

Depth icon

Depthsensor element: 43 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PowerLogic

Product or component type

energy sensor

Product brand

Clipsal

Market segment

  • residential: breaker voltage monitoring
  • residential: overload alarm

Product destination

switchboard

Physical

Range compatibility

Resi MAX & MAX4

Mounting support

on circuit breaker

Mounting mode

by screws (terminals)

[ue] rated operational voltage

  • 220...240 V AC, +/- 20 %, between phase and neutral
  • 380...415 V AC, +/- 20 %, between phases

Standards

  • IEC 61557-12
  • IEC 61010-1
  • IEC 61010-2-030
  • IEC 61326-1
  • ETSI EN 300 328
  • ETSI EN 301 489-1

Height

sensor element: 19.5 mm

Width

sensor element: 54 mm

Depth

sensor element: 43 mm

Net weight

40 g

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...85 °C

Ip degree of protection

IP20 conforming to IEC 60529

Ik degree of protection

IK05

Relative humidity

0...95 % at 45 °C conforming to IEC 60721...3-3

Environmental characteristic

  • dustproof class 3S3 conforming to IEC 60721-3-3
  • salt mist class 3C2 conforming to IEC 60721-3-3
  • indoor use

Mercury free

Yes

Rohs exemption information

Yes

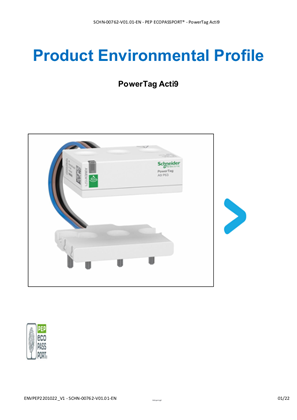

Environmental disclosure

ENVPEP2201022

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Average percentage of recycled plastic content

0 %

Legacy weee scope

In

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Weee applicability

Finished product

Product name

PowerTag Wiser F63

Poles description

3P + N

Max current

63 A

[ib] basic current

10 A

Starting current

40 mA

Saturation current

130 A

Product specific application

  • load monitoring
  • circuit monitoring
  • overload alarm
  • energy production monitoring (photovoltaic)

Concentrator compatibility

Wiser hub generation 2

Type of measurement

  • current
  • voltage
  • active energy

Accuracy class

  • class 1 current conforming to IEC 61557-12
  • class 0.5 voltage conforming to IEC 61557-12
  • class 1 active energy conforming to IEC 61557-12

Mounting location

top or bottom

Event management

voltage loss with measured current at voltage loss

Transmission support medium

radio frequency 2.4-2.4835 GHz conforming to IEEE 802.15.4

Emission power

10 mW

Form factor

flex

Electrical connection

wires with cable end

Cable cross section

  • 1 rigid cable 1.5...16 mm²
  • 2 stranded cable 1.5...2.5 mm²
  • 2 rigid cable 1.5...2.5 mm²
  • 1 stranded cable 1.5...16 mm²

Cable length

0.25 m

Network frequency

  • 50 Hz
  • 60 Hz

Power consumption in va

2 VA

Quality labels

CE

Directives

2014/53/EU - radio equipment directive

Operating altitude

0...2000 m

Overvoltage category

III conforming to IEC 61010-1

Measurement category

category III conforming to IEC 61010-2-030

Pollution degree

3

Vibration resistance

3M4 conforming to IEC 60721-3-3

Electromagnetic compatibility

  • residential electromagnetic environment conforming to IEC 61326-1
  • radiated EMC conforming to ETSI EN 301 489-17
  • electromagnetic emission conforming to IEC 62311

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.500 cm

Package 1 width

7.500 cm

Package 1 length

8.000 cm

Package 1 weight

70.000 g

Unit type of package 2

S02

Number of units in package 2

30

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

2.236 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

37 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.697251617115319

Carbon footprint of the manufacturing phase [a1 to a3]

2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.009130866193335856

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.02719654652452894

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

35.40775952755711

Carbon footprint of the use phase [b2, b3, b4, b6]

35 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.1097967238172523

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

37.25113528120755

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

fa9432a0-863c-4cef-a22a-bcccb1ccec2d

Rohs eur status

Compliant By Exemption

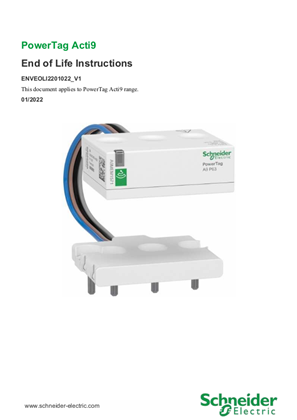

End of life manual availability

ENVEOLI2201022

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
