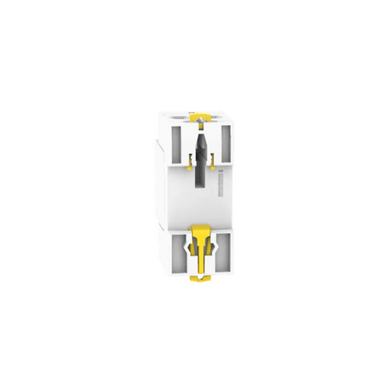

MAX9 Residual Current Circuit Breaker (RCCB)

Item Number: MX9RC240

1 PCE 0

Product Selector ➚

Retail

$99

RRP (Inc. GST)

Where To Buy

Datasheet

For MX9RC240

Download

Product Dimensions

Width36 mm

Height85 mm

Depth75 mm

See full specifications

Barcode

Qty	EAN	Colour
1	9311554813253	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		9311554813253	-

Ultimate Efficiency and Professional Finish

MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from main switch and distributes both active & neutral across all type of Clipsal RCBOs and AFDDs

MAX Innovation & Performance

Innovation is at the core of everything at Clipsal. MAX9 is no exception to that. MAX9 brings in Arc Fault Detection Device (AFDD) to help take the safety of Australian homes to next level
Enjoy best-in-class performance with 100A rated system. MAX9 products are designed for tough Aussie conditions with operating temperature ranging from -25 Deg C to +70 Deg C with derating
When it comes to circuit protection, it all comes down to what's on the inside. MAX9 breakers are solidly built and designed to endure 20K mechanical cycles and 10K electrical cycles*

Peace of Mind

Amendment 2 of "Wiring rules" mandate type A RCDs from 2023. All RCBOs and RCDs in MAX9 range are already type A so that you can be future ready
MAX9 system comes type tested as per the requirements of AS/NZS 61439-3 to provide you additional peace of mind
Clipsal MAX9 range comes with 7 year warranty for the ultimate peace of mind

Simplify Safety & Digital Experience

Sometimes it could be hard to explain circuit protection category to home owners. MAX9 helps to simplify safety by explaining types of circuit protection to home owners with simple pictograms
MAX9 range takes the digital experience to next level with QR codes on each product to easily access all technical information like specifications, brochures, installation instructions, FAQs and videos

Specifications

Design

Range

MAX9

Product or component type

residual current circuit breaker (RCCB)

Warranty

7-year

Physical

[in] rated current

40 A conforming to AS/NZS 61008.1

[ue] rated operational voltage

240 V

Control type

toggle

Local signalling

ON/OFF indication

Mounting mode

clip-on

Mounting support

DIN rail

Standards

IEC 61008-2-1
EN/IEC 61008-1

Height

85 mm

Width

36 mm

Depth

75 mm

Net weight

210 g

Mechanical durability

10000 cycles

Electrical durability

4000 cycles AC 50 Hz

Connections - terminals

tunnel type terminals (top or bottom)

Wire stripping length

14 mm for top or bottom connection

Ip degree of protection

IP20

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2206035EN

Circularity profile

N/A

Others

Package 2 bare product quantity

Package 1 bare product quantity

Poles description

Network type

Network frequency

50 Hz

Earth-leakage sensitivity

30 mA

Earth-leakage protection time delay

instantaneous

Earth-leakage protection class

type A

Rated breaking and making capacity

Im 500 A at 240 V AC 50 Hz conforming to AS/NZS 61008.1

Rated conditional short-circuit current

MAX9 MCB: Inc 6 kA 40 A

[ui] rated insulation voltage

440 V AC 50 Hz conforming to AS/NZS 61008.1

[uimp] rated impulse withstand voltage

4 kV

Surge current

250 A

Quality labels

RCM

9 mm pitches

Tightening torque

3.5...3.5 N.m top or bottom

Temperature derating table

40 °C ( 40 A )
45 °C ( 37.5 A )
50 °C ( 35 A )
55 °C ( 32.5 A )
60 °C ( 30 A )
65 °C ( 27.5 A )
70 °C ( 25 A )

Grid distance

35 mm

Pollution degree

Overvoltage category

III

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

8 cm

Package 1 width

9 cm

Package 1 length

4 cm

Package 1 weight

214 g

Unit type of package 2

BB1

Number of units in package 2

Package 2 height

9 cm

Package 2 width

25.4 cm

Package 2 length

10.6 cm

Package 2 weight

1.386 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

c95acd0e-e3b4-4bda-b03d-6f10ba692f04

Take-back

Product contributes to saved and avoided emissions

Recycled metal content at cr level

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

VERSION

1.0

DATE

09 May 2024

REVISION

1.0

DOWNLOAD (ZIP) 297.4 KB

ZIP

RCM Certificate of Conformity (Approval)

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 111.5 KB

ZIP

MAX9 The ultimate in circuit protection - Brochure 2025

VERSION

1.0

DATE

10 Apr 2025

REVISION

1.0

DOWNLOAD (ZIP) 7.3 MB

ZIP

MAX9 - RCCB 2P 40A and 63A 30mA 3D Simplified - 3D CAD

VERSION

1.0

DATE

04 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB

ZIP

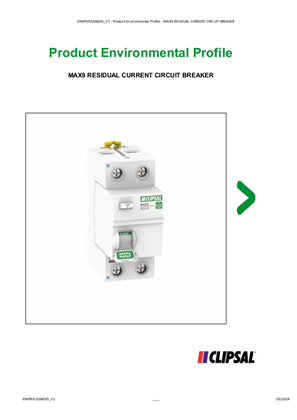

MAX9 RESIDUAL CURRENT CIRCUIT BREAKER

VERSION

1.0

DATE

29 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 351.1 KB

ZIP

MAX9 RESIDUAL CURRENT CIRCUIT BREAKER

VERSION

1.0

DATE

26 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 351.1 KB

ZIP

Instruction sheet - Residual current circuit breaker (RCCB)

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 917.4 KB

ZIP

Clipsal, Max9 Residual Current Devices, Certificate, RCM, Global Mark Pty LTD

VERSION

1.0

DATE

09 May 2024

REVISION

1.0

DOWNLOAD (ZIP) 297.4 KB

ZIP

RCM Certificate of Conformity (Approval)

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 111.5 KB
