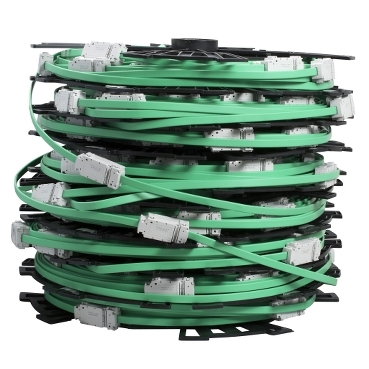

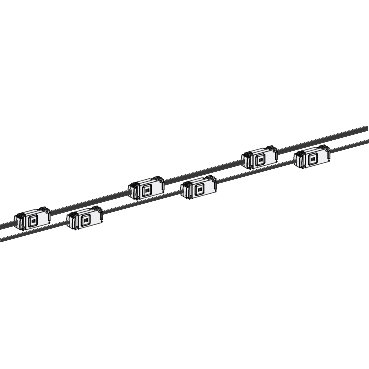

Canalis KDP Distribution flexible length 20A, 24m, 1.50m between tap-offs

Home ProductsCable ManagementCanalis KDPDistribution flexible length

Canalis KDP Distribution flexible length 20A, 24m, 1.50m between tap-offs

Item Number: KDP20ED424150

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Canalis

Range of product

Canalis

Product or component type

busbar trunking

Product compatibility

KDP

Device application

  • lighting
  • power socket distribution

Warranty

18 months

Physical

[ue] rated operational voltage

230...400 V

[ie] rated operational current

20 A at 35 °C

Type of packing

spool

Standards

  • EN/IEC 61439-6
  • EN/IEC 60439-2

Length

23 m

Net weight

7.68 kg

Ip degree of protection

IP55 conforming to IEC 60529

Ik degree of protection

IK07 conforming to IEC 62262

Ambient air temperature for operation

  • 35...40 °C (93 % of In)
  • 40...45 °C (85 % of In)
  • 45...50 °C (76 % of In)
  • 50...55 °C (66 % of In)
  • 0...35 °C (100 % of In)

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP061103EN

Eu rohs directive

Compliant

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Legacy weee scope

In

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

KDP

Busbar description

flexible bar

[uimp] rated impulse withstand voltage

4 kV

[ui] rated insulation voltage

690 V

[icw] rated short-time withstand current

0.34 kA

[ipk] rated peak withstand current

3.6 kA

Network frequency

50/60 Hz

Maximum radiated magnetic field

2 pT

Thdi

  • 0...15 % 20 A
  • 15...33 % 16 A
  • 33...100 % 14 A

Maximum voltage drop

  • <0.72 V with power factor = 1 at 50 Hz with 1A for 100 m long
  • <0.65 V with power factor = 0.9 at 50 Hz with 1A for 100 m long
  • <0.58 V with power factor = 0.8 at 50 Hz with 1A for 100 m long
  • <0.5 V with power factor = 0.7 at 50 Hz with 1A for 100 m long

Linear resistance

  • 6.8 mΩ/m R20 20 °C phase conductor
  • 0.85 mΩ/m X0 20 °C symmetrical components method Ph/PE
  • 27.22 mΩ/m Z0 20 °C symmetrical components method Ph/PE
  • 13.61 mΩ/m Rb0 20 °C impedance method Ph/Ph
  • 13.61 mΩ/m Rb0 20 °C impedance method Ph/N
  • 13.61 mΩ/m Rb0 20 °C impedance method Ph/PE
  • 16.6 mΩ/m Rb1 35 °C at Inc with impedance method Ph/Ph
  • 16.6 mΩ/m Rb1 35 °C at Inc with impedance method Ph/N
  • 16.6 mΩ/m Rb1 35 °C at Inc with impedance method Ph/PE
  • 0.04 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/Ph
  • 0.04 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/N
  • 8.3 mΩ/m R1 35 °C at Inc and 50 Hz phase conductor
  • 0.04 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/PE
  • 0.02 mΩ/m X1 35 °C at Inc and 50 Hz phase conductor
  • 8.3 mΩ/m Z1 35 °C at Inc and 50 Hz phase conductor
  • 7.25 mΩ/m 20 °C protective conductor
  • 27.21 mΩ/m R0 20 °C symmetrical components method Ph/N
  • 0.85 mΩ/m X0 20 °C symmetrical components method Ph/N
  • 27.22 mΩ/m Z0 20 °C symmetrical components method Ph/N
  • 27.21 mΩ/m R0 20 °C symmetrical components method Ph/PE

Busbar trunking polarity

L2 + L1 + L3 + N + PE

Tap-off unit interval

1500 mm

Sustainable packaging

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
