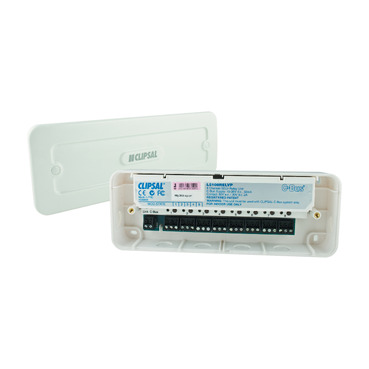

C-Bus Relay Surface Mounted, Extra Low Voltage, 30 V AC DC, 8 Channel, 2A, Without C-Bus Power Supply

C-Bus Relay Surface Mounted, Extra Low Voltage, 30 V AC DC, 8 Channel, 2A, Without C-Bus Power Supply

Item Number: L5108RELVP

Datasheet

Product Dimensions

Width icon

Width220 mm

Height icon

Height80 mm

Depth icon

Depth39 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

C-Bus

Product brand

Clipsal

Range

C-Bus

Sustainable offer status

Green Premium product

Physical

Connector type

screw terminals

Width

220 mm

Height

80 mm

Depth

39 mm

Ip degree of protection

IP51

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP111268EN

Circularity profile

ENVEOLI111254EN

Others

Package 1 bare product quantity

1

[us] rated supply voltage

15...36 V DC

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5 cm

Package 1 width

9 cm

Package 1 length

25.5 cm

Package 1 weight

427 g

Unit type of package 2

CAR

Number of units in package 2

20

Package 2 height

30 cm

Package 2 width

28.5 cm

Package 2 length

39 cm

Package 2 weight

9.707 kg

Unit type of package 3

PAL

Number of units in package 3

320

Package 3 height

116 cm

Package 3 width

60 cm

Package 3 length

80 cm

Package 3 weight

142.038 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
