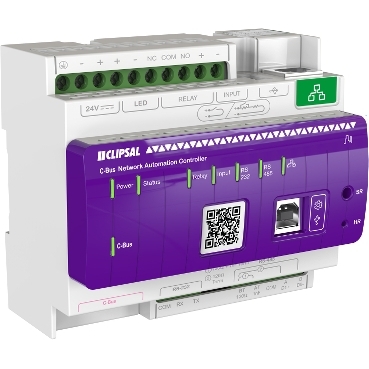

C-Bus Control and Management System Network Automation Controller BACnet, Modbus, IP, 6M, Din Mount, 24V DC
Item Number: 5500NAC
Colour ()
- 1 PCE 0

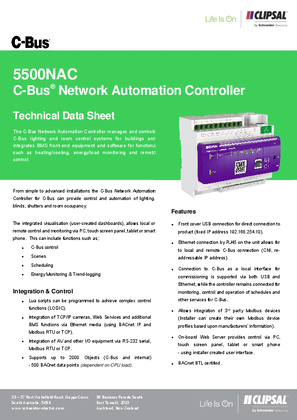

Datasheet
Barcode
Qty | UoM | EAN | Colour |
---|---|---|---|
- | |||
- | |||
- |
Barcode
Qty | UoM | EAN | Colour |
---|---|---|---|
1 | 9311554793159 | - | |
8 | 19311554793156 | - |
Specifications
Design
Range
Product or component type
Market segment
Physical
Communication port protocol
- C-Bus RJ45 (2000 devices)
- BACnet IP RJ45 (500 devices)
- Modbus RTU terminal block RS485 (31 devices)
- IP (Internet Protocol) RJ45
- serial link terminal block RS232
- Modbus TCP RJ45
Power consumption in w
Local signalling
- LED (green/red) for power
- LED (green/red) for status indication
- LED (green) for relay output (REL)
- LED (multi-colour) for input status
- LED (multi-colour) for RS232 link activity
- LED (multi-colour) for serial link communication (RS485, RX, TX)
- LED (green) for C-Bus status
- LED (green/yellow) for Ethernet link
Control type
- remote control
- smartphone or tablet
- RESET push-button
- by touch panel
- by web browser
- RESET push-button cold restart
- local control
Function available
- visualisation
- updateable software
Connections - terminals
- power supply: screw terminal 3 cable(s) 1.5-1.5 mm²
- LED lamp: screw terminal 2 cable(s) 1.5-1.5 mm²
- relay digital output: screw terminal 3 cable(s) 1.5-1.5 mm²
- digital input: screw terminal 2 cable(s) 1.5-1.5 mm²
- RS232 link: screw terminal 3 cable(s) 1.5-1.5 mm²
- RS485 link: screw terminal 5 cable(s) 1.5-1.5 mm²
Mounting support
Height
Width
Depth
Ambient air temperature for operation
Relative humidity
Ip degree of protection
Standards
- AS/NZS CISPR 22
- EN 55022 class A
Eu rohs directive
Mercury free
China rohs regulation
Rohs exemption information
Environmental disclosure
Circularity profile
Others
Commercial status history
- SESA59909
- Wed Aug 09 00:34:00 EDT 2023
- From Unitary Local
- From 18 to 19
Package 1 bare product quantity
Product name
[us] rated supply voltage
Port ethernet
Number of port
- 1 USB 2.0 type A
- 1 USB 1.1 type B
- 1 RS232 (serial link)
- 1 RS485 (Modbus)
- 2 RJ45 (C-Bus)
- 1 RJ45 (Ethernet)
Web services
Web server
Number of inputs
Input impedance
- 2.2 kOhm closed
- 6.9 kOhm opened
Number of outputs
Output voltage
- 24 V DC 1 A for relay
- 48 V AC 1 A for relay
Total number of 18 mm modules
Operating altitude
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Documents & downloads
hide show-
All
-
Product Brochures
-
CAD Files and Packs
-
Other technical guide
-
Installation Instruction
-
End of Life Manual
-
Environmental Disclosure
-
Quick Start Guide
-
Operating Manuals
-
System User Guide
-
Specification Guide
-
Application Notes
-
Declaration of Conformity
-
Firmware
-
Software - Release
998-20872742_SpaceLogic C-Bus Commercial Brochure
VERSION
1.0
DATE
16 Jul 2024
REVISION
1.0

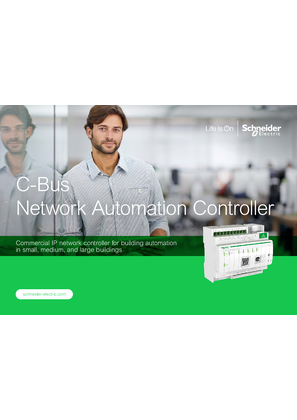

Brochure 998-20238427_GMA-GB_C-Bus_NAC
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
C-Bus Energy Management & Control System, The ultimate control solution
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0

Saturn, Pure Glass - Beautifully crafted, 6314
VERSION
1.0
DATE
24 Dec 2018
REVISION
1.0

One touch - blinding levels of control, 14804
VERSION
1.0
DATE
19 Jun 2018
REVISION
1.0

C-Bus Cool levels of control, Ceiling Sweep Fan Control Relay, 22457
VERSION
1.0
DATE
21 Dec 2016
REVISION
1.0
C-Bus C-Gate 3 Windows Installer, Release Notes V3.4.1
VERSION
1.7
DATE
19 Feb 2025
REVISION
1.7
C-Bus C-Gate 3 Linux Release Notes V3.4.1
VERSION
2.1
DATE
19 Feb 2025
REVISION
2.1
C-Bus Home Gate Release Notes V4.15.1
VERSION
1.0
DATE
18 Jan 2024
REVISION
1.0
C-Bus Home Gate Release Notes V4.15.0
VERSION
1.0
DATE
30 Oct 2023
REVISION
1.0
C-Bus C-Gate 2 Linux Package Release Notes V2.11.11
VERSION
1.0
DATE
30 Oct 2023
REVISION
1.0
C-Bus C-Gate 2 Windows Installer Release Notes V2.11.11
VERSION
1.0
DATE
30 Oct 2023
REVISION
1.0
Users Guide for C-Bus 5500NAC & S5500SHAC Automation Controller FW Ver 1.6.0
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0

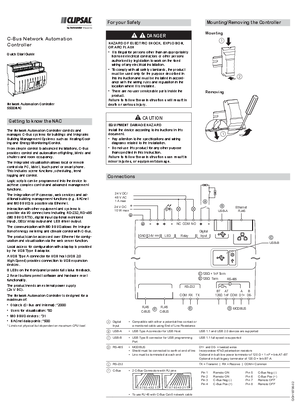

HW: Network Automation Controller
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0

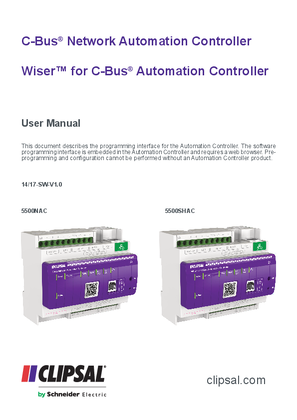

C-Bus Automation Controllers User Manual for 5500NAC & 5500SHAC
VERSION
4.0
DATE
15 Feb 2023
REVISION
4.0

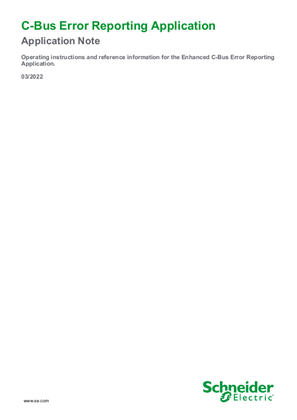

C-Bus Error Reporting Application Note - GEX5618200
VERSION
1.0
DATE
18 May 2022
REVISION
1.0

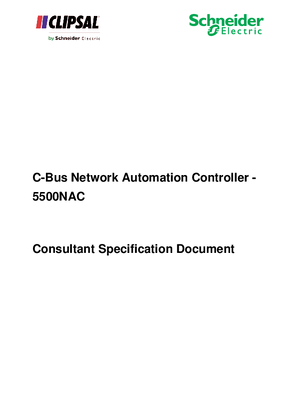

CB-OTH-03-1.0 - Consultant Specification Document
