Clipsal Solis T Series Rotary Adaptor for Wiser Dimmer

Home ProductsPower Points and SwitchesSolisRotary Adaptor

Clipsal Solis T Series Rotary Adaptor for Wiser Dimmer | Living Brass

Item Number: 40RWDA-LB

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width22 mm

Height icon

Height51 mm

Depth icon

Depth30 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

Clipsal Solis T Series

Product or component type

adaptor

Surface finish

matt

Surface treatment

painted

Physical

Device mounting

flush

Control type

rotary knob

Fixing mode

screw

Installation direction

horizontal

Number of rocker

1

Height

51 mm

Width

22 mm

Depth

30 mm

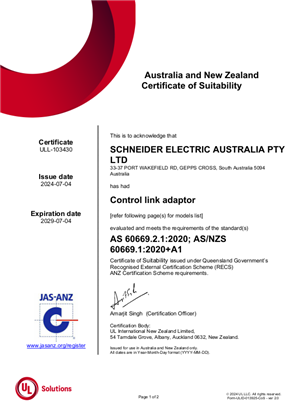

Product certifications

RCM

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

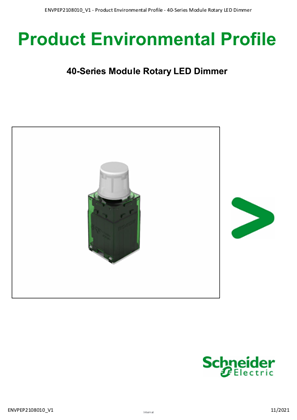

Environmental disclosure

ENVPEP2108010_V1

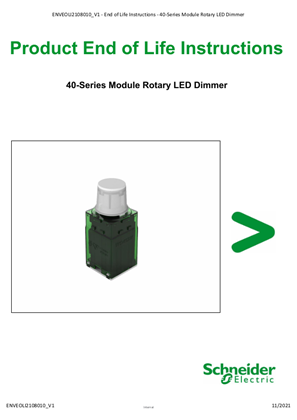

Circularity profile

ENVEOLI2108010_V1

Material

Material

ceramic

Others

Commercial status history

  • SESA17836
  • Mon Sep 02 20:45:00 EDT 2024
  • From Import Local
  • From 20 to 08

Package 1 bare product quantity

1

Package 2 bare product quantity

4

Package 3 bare product quantity

120

Outlet standard deviation

Australian/New Zealand

Main colour tint

white ceramic

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.5 cm

Package 1 width

7.5 cm

Package 1 length

7.5 cm

Package 1 weight

52 g

Unit type of package 2

BB1

Number of units in package 2

4

Package 2 height

15.5 cm

Package 2 width

8 cm

Package 2 length

8 cm

Package 2 weight

286 g

Unit type of package 3

CAR

Number of units in package 3

120

Package 3 height

34 cm

Package 3 width

36 cm

Package 3 length

48 cm

Package 3 weight

6.324 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

34.5199446062

Global warming ; total life cycle​

35 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications

Frequently Asked Questions

I’m struggling to pair my Wiser ZigBee dimmer to the app via the Solis rotary Wiser dimmer adaptor, what should I do?

Hide Show
If you are struggling to pair the device, factory reset the Wiser Dimmer and try pairing again. Factory reset is achieved by short pressing the knob 3 times (<0.5s) then long press the knob once (>10s). After 10s the LED will blink red, then re-lease the knob. Completion of factory reset will be indicated by observing the white LED on adaptor blinking for 8 seconds.

How can I dim the load using rotary Wiser dimmer adaptor in Solis or Solis T series?

Hide Show
Dimming the load can be achieved by either rotating or long pressing the knob of the rotary adaptor.
Rotating the knob clockwise will dim the load up and anticlockwise will dim the load down. Long pressing the knob will also dim the load up/down which will be dependent on the previous direction of dimming.

Can I use the rotary Wiser dimmer adaptor with 2AX and 10AX Wiser ZigBee Switches?

Hide Show
No, the rotary wiser dimmer adaptor is for the Wiser ZigBee Dimmer only.
