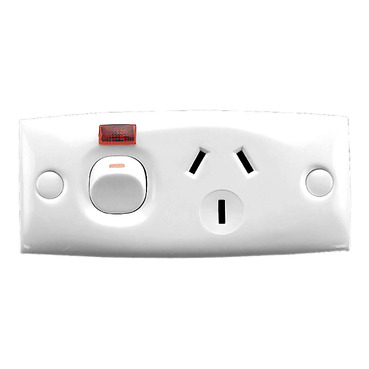

Modena/Strato Switched Socket Single, 10A Skirting Mount Neon | White Electric

Issue:
Looking for dimensions or drawings for the keypad only

Product line:
VW3A1101

Environment:
All serial numbers

Cause:
Not shown online.

Resolution:
See the attached .PDF file with dimensions or the CAD files.

Issue:
Installation of DC choke on the D version of the ATV61HD90N4D.

Product Line:
Altivar 61, ATV61

Environment:
ATV61HD90N4D

Cause:
The AV61HD90N4D was ordered which ships without the DC choke.

Resolution:
The DC choke for this part is not available for sale. Recommended solution is to add a 5% input line reactor, separately mounted.

Issue:
Needs the part numbers of the measuring board for the ATV61HC16N4 and ATV71HC13N4 drives

Product Line:
ATV61 and ATV71

Environment:
All

Cause:
Failed measuring board component within the drive.

Resolution:
The part number for the measuring board is VX5A71HC13N4 or VX5A71HC13N4F (For Fuji parts)
When a replacement Measurement board is needed, the serial  number of the VFD needs to be verified.

If the 8th digit of the Serial number is a "2" as shown below than the replacement part number must have an "F" suffix.
See Attachment


Issue:
Conduit kits for the Altivar Process Drives

Product Line:
Altivar Process Drive (ATV630, ATV930)

Environment:
All serial numbers for Altivar Process Drive

Cause:
N/A

Resolution:
Frame Size 1...4

• Includes IP21 conduit kit already installed on the drive

Frame Size 5

• Includes IP21 conduit kit but not installed on the drive

Frame Size 6, 7A and 7B
Conduit kits are not supplied and have to be ordered:

• Size 6 [ATV630D55M3, ATV630D75M3, ATV930D55M3C, ATV930D75M3C, ATV630C11N4, ATV630C13N4, ATV630C16N4, ATV930C11N4C, ATV930C13N4C, ATV930C16N4C]
  • UL type 1 and IP21: VW3A9704
• Size 7A [ATV630C22N4, ATV930C22N4(C)]
  • UL type 1: VW3A9212
  • UL type 21: VW3A9112
• Size 7B [ATV630C25N4, ATV630C31N4, ATV930C25N4C, ATV930C31N4C]
  • UL type 1 without braking unit: VW3A9213
  • UL type 1 with braking unit: VW3A9214
  • UL type 21 without braking unit: VW3A9113
  • UL type 21 with braking unit: VW3A9114



Issue:
ATV71 Fan control board part number and troubleshooting LEDs.

Product Line:
Alitvar ATV71 High HP

Environment:
All

Cause:
There are two troubleshooting LEDs on the fan control board.

Resolution:
See the attached file to see the LED troubleshooting codes.

Please note that the following drives have the fan control board.

Frame size 10 is ATV71HC11N4 and ATV71HD75M3X
Frame size 11 and 12 are ATV71HC13 thru HC16N4
Frame size 13 and 14 are ATV71HC20N4 thru HC40N4
Frame size 15 is ATV71HC50N4


Frame size 10,11 and 12
1 Fan control board (VX5A1400)
1 Heat sink fan (VZ3V1212)

Fame size 13
1 Fan control board (VX5A1400)
2 Heat sink fans (VZ3V1212)

Frame size 14
2 Fan control boards (VX5A1400)
3 Heat sink fans (VZ3V1212)

Frame size 15
2 Fan control boards (VX5A1400)
4 Heat sink fans (VZ3V1212)

Issue:
ATV61HC16N4 and ATV71HC13N4 spare parts manual.

Product line:
Altivar ATV61HC16N4 and ATV71HC13N4

Environment:
ATV61HC16N4 and ATV71HC13N4

Cause:
Someone needs a copy of the services manual for the ATV61HC16N4 and the ATV71HC13N4 drives.

Resolution:
Instruction bulletin 30072-452-78 is attached.


The Braking transistor is inbuilt in maximum ratings of Altivar 71 Drive.

Issue:
Change the carrier switching frequency in an ATV66 drive

Product Line:
Altivar ATV66

Environment:
All

Cause:
Needs to change the switching frequency because of motor noise.

Resolution:
The only way to change carrier frequency is to go from CT or VT to VTLN or NOLD in menu 7.13.
There is no separate parameter available for switching frequency adjustment.
Refer to the ATV66 user manual VD0C06S305C  page 61.


CTA-ID : 2018068

Issue:
What is the SCR snubber part number for an ATV61/71 drive?

Product Line:
ATV61 and ATV71

Environment:
All serial numbers for ATV61 and ATV71

Cause:
Part number needed to order part.

Resolution:
VX4A1200 for Frame sizes 11 - 15
ATV61HC16N4 thru ATV61HC63N4 or ATV71HC13N4 thru ATV71HC50N4?

Issue:
Information needed to determine the energy savings for a variable frequency drive (VFD) system in a constant torque application.

Product Line:
All constant torque rated Altivar Drives.

Environment:
All constant torque rated drives, All serial numbers.

Cause:
What is the percentage of energy usage reduction compared to the reduction in speed?

Resolution:
In a constant torque application, The energy used is directly proportional to the speed of the motor.   At 25% speed, 25% energy is used.  At 50% speed, 50% energy is used.  This is different than in variable torque applications where the reduction in power usage is greater than the reduction in speed.

When calculating energy consumption for constant torque applications, The percentage of motor speed is used to determine energy usage.
