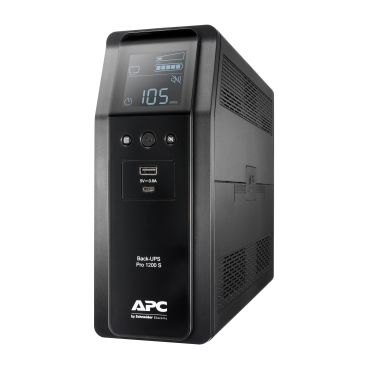

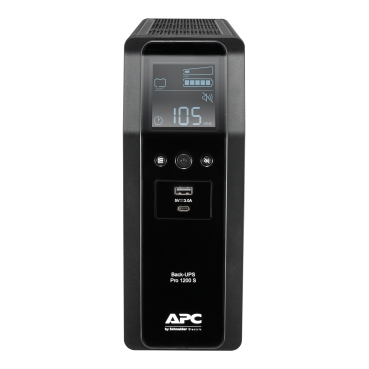

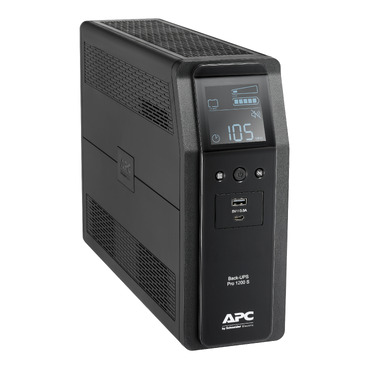

Back-UPS Pro APC Back-UPS Pro 1200VA/720W, Tower, 230V, 8x IEC C13 outlets, Sine Wave, AVR, USB Type A + C ports, LCD, User Replaceable Battery

Home ProductsNetwork ConnectivityUPSAPC Back-UPS Pro

Back-UPS Pro APC Back-UPS Pro 1200VA/720W, Tower, 230V, 8x IEC C13 outlets, Sine Wave, AVR, USB Type A + C ports, LCD, User Replaceable Battery

Item Number: BR1200SI

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width10 cm

Height icon

Height26 cm

Depth icon

Depth36.8 cm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

uninterruptible power supply (UPS)

Range of product

Back-UPS Pro

Warranty

2 years repair or replace, 3 years repair or replace for European Union countries

Physical

Rated power in w

720 W

Provided equipment

  • user manual
  • USB cable

Height

26 cm

Width

10 cm

Depth

36.8 cm

Net weight

11.7 kg

Mounting mode

not rack-mountable

Product certifications

  • A-Tick
  • C-Tick
  • CE
  • EAC
  • RCM
  • TISI

Marking

GS Mark

Standards

  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018

Ambient air temperature for operation

0...40 °C

Relative humidity

0...95 % non-condensing

Ambient air temperature for storage

-15...45 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1712010_EN

Circularity profile

ENVEOLI1712010_EN

Others

Package 1 bare product quantity

1

Life cycle assessment data

Yes

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Substance regulation data deliverable

Yes

Lead time

Usually in Stock

Main input voltage

230 V

Rated power in va

1200 VA

Battery type

lead-acid battery

Usb compatible

No

Network frequency

50/60 Hz +/- 3 Hz auto-sensing

Input voltage limits

176...294 V

Switching current capacity

10 A

Graph display

1

Operating altitude

0...10000 ft

Storage relative humidity

0...95 % non-condensing

Storage altitude

0...50000 ft

Acoustic level

45 dBA

Heat dissipation

16 Btu/h

Battery voltage

24 V

Battery capacity

9.0 Ah

Battery life

3...5 year(s)

Control panel

multifunction LCD status and control console

Alarm

alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

35.9 cm

Package 1 width

48.2 cm

Package 1 length

22.3 cm

Package 1 weight

13.35 kg

Scc14

10731304346897

Green premium status for reporting

Green Premium product

Optimized energy efficiency

Energy efficient product

Optimized energy efficiency

Energy efficient product

Take-back

Yes

Take-back

Yes

Product contributes to saved and avoided emissions

No

Removable battery

User replaceable

Removable battery

User replaceable
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • End of Life Manual

  • Environmental Disclosure

  • Operating Manuals

  • Declaration of Conformity

  • Certificates (MSDS)

APC Back-UPS Pro Brochure
ZIP

APC Back-UPS Pro Brochure

VERSION

1.0

DATE

14 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 744.8 KB
End of Life instructions for BACK UPS _EN
ZIP

End of Life instructions for BACK UPS _EN

VERSION

1.0

DATE

26 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 458.8 KB
Product Environmental Profile for BACK UPS _EN
ZIP

Product Environmental Profile for BACK UPS _EN

VERSION

1.0

DATE

26 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 969.8 KB
BACK-UPS PRO BR1200/1600SI
ZIP

BACK-UPS PRO BR1200/1600SI

VERSION

3.0

DATE

14 Aug 2022

REVISION

3.0

DOWNLOAD (ZIP) 447.5 KB
EU Declaration of Conformity-992-9161
ZIP

EU Declaration of Conformity-992-9161

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 263 KB
UK Declaration of Conformity
ZIP

UK Declaration of Conformity

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 394.6 KB
EU DOC for BR series
ZIP

EU DOC for BR series

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 234.3 KB
UKCA Declaration of Conformity 992-9398
ZIP

UKCA Declaration of Conformity 992-9398

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 389.5 KB
Telepermit certificate for Back UPS PRO
ZIP

Telepermit certificate for Back UPS PRO

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 58.1 KB
CB Test Approval for Back-UPS Pro 1200, 1600 230V
ZIP

CB Test Approval for Back-UPS Pro 1200, 1600 230V

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 823.6 KB
CE EMC BR 1600 1200 SI
ZIP

CE EMC BR 1600 1200 SI

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 155.8 KB
EAC certificate for BackUPS
ZIP

EAC certificate for BackUPS

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 519.4 KB
