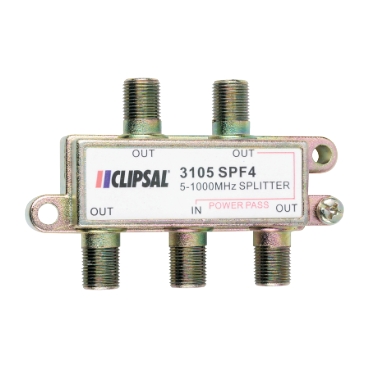

Clipsal Actassi, Terrestrial Splitter, 4 Way, F-Type, Terrestrial, 1 Leg Power Pass, 1GHz

Clipsal Actassi, Terrestrial Splitter, 4 Way, F-Type, Terrestrial, 1 Leg Power Pass, 1GHz

Item Number: 3105SPF4

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Electricimagination

Product or component type

splitter block

Physical

Number of terminals

1 earth contact

Connections - terminals

F connection

Transmission frequency

5...1000 MHz

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Others

Commercial status history

SESA65410 | Tue Mar 19 22:08:00 EDT 2024 | From Import Local | From 18 to 19

Package 1 bare product quantity

1

Maximum splitter loss

7.8 dB

Number of outputs

4

Number of inputs

1

Number of mounting holes

2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.5 cm

Package 1 width

11.0 cm

Package 1 length

12.5 cm

Package 1 weight

68.0 g
