Clipsal - Lighting Downlight LED 750lm, 3K/4K/6K Trim

Clipsal - Lighting Downlight LED 750lm, 3K/4K/6K Trim

Item Number: CLITPDL1C2

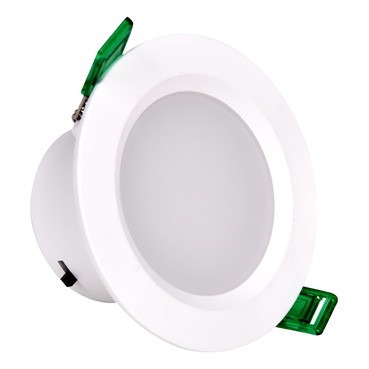

With an extra-wide trim, integral driver, a low profile and flex and plug, the Clipsal TPDL Series LED Downlights are unobtrusive and easy to install. The lamp life is rated to 30,000 hours. This white surround model has a brightness level of 750lm.

Datasheet

Product Dimensions

Width icon

Width110 mm

Height icon

Height65.5 mm

Depth icon

Depth62.5 mm

Barcode

Qty UoM EAN Colour
-
-
-
LED downlight specifications
LED Downlight
LED downlight in house
Lighting outside house

Clipsal lighting range

The Clipsal lighting range provides energy-saving light fittings that combine clever design with innovative technologies. Lighting is interlinked and must be able to operate seamlessly with the multiple input demands it receives across multiple products.
With the convergence of control and lighting, Clipsal can deliver products whilst leading the market.
Clipsal provides light fittings that are truly compatible with our wall switches, dimmers, sensors, control systems and more.

Specifications

Design

Range

Clipsal

Product or component type

downlight

Device application

lighting

Market segment

  • residential
  • small commercial

Physical

Device mounting

recessed ceiling

Type of installation

indoor

Rated power in w

9 W

[ue] rated operational voltage

240 V AC 50 Hz

Load type

dimmable LED

Quantity per set

1

Width

110 mm

Height

65.5 mm

Depth

62.5 mm

Net weight

0.25 kg

Ip degree of protection

IP44

Ambient air temperature for operation

-10...25 °C

Relative humidity

10...95 % non-condensing

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2305020

Circularity profile

ENVEOLI2305020

Material

Device composition

  • round white plastic fixed integral dimming driver soft glow
  • flex
  • plug

Others

Commercial status history

  • SESA301466
  • Sun Dec 08 22:46:00 EST 2024
  • From Unitary Local
  • From 18 to 19

Package 1 bare product quantity

1

Shape

round

Light source

LED

Luminous flux

  • 700 lm 3000 K
  • 700 lm 4000 K
  • 700 lm 6000 K

Colour rendering index

Ra=80

Bulb lifespan

50000 h

Beam angle

90 °

Cut-out dimensions

90 mm

Targeted country

  • Australia
  • New Zealand

Insulation contact rating

IC-4

Unified glare rating

< 22

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9 cm

Package 1 width

14 cm

Package 1 length

14 cm

Package 1 weight

350 g

Unit type of package 2

CAR

Number of units in package 2

20

Package 2 height

28.5 cm

Package 2 width

28.5 cm

Package 2 length

45 cm

Package 2 weight

7 kg

Unit type of package 3

PAL

Number of units in package 3

640

Package 3 height

127 cm

Package 3 width

115 cm

Package 3 length

115 cm

Package 3 weight

245 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

320.9744119028895

Global warming ; total life cycle​

321 kg CO2 eq.

Minimum percentage of recycled plastic content

0
