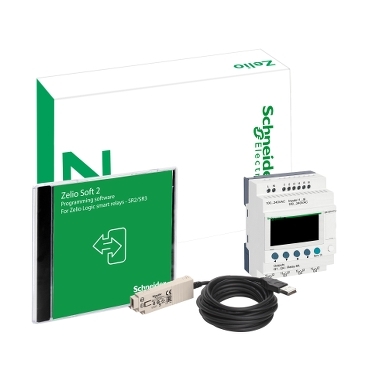

Zelio Logic smart relay discovery pack 10 I/O, 100...240V AC

Home ProductsIndustrialZelio Logicsmart relay discovery pack

Zelio Logic smart relay discovery pack 10 I/O, 100...240V AC

Item Number: SR3PACKFU

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Zelio Logic

Product or component type

modular discovery packs

Warranty

18 months

Physical

Backup time

10 years at 25 °C

Protection type

against inversion of terminals (control instructions not executed)

Electrical durability

  • AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1
  • AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1
  • DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1
  • DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1

Mechanical durability

10000000 cycles for relay output

Connections - terminals

  • screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
  • screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid
  • screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
  • screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid
  • screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end

Net weight

0.7 kg

Product certifications

  • GOST
  • C-Tick
  • GL
  • CSA
  • UL

Standards

  • IEC 61000-4-2 level 3
  • IEC 61000-4-4 level 3
  • IEC 61000-4-12
  • IEC 61000-4-5
  • IEC 61000-4-11
  • IEC 61000-4-3
  • IEC 61000-4-6 level 3
  • IEC 60068-2-6 Fc
  • IEC 60068-2-27 Ea

Ip degree of protection

  • IP20 (terminal block) conforming to IEC 60529
  • IP40 (front panel) conforming to IEC 60529

Environmental characteristic

  • EMC directive conforming to IEC 61000-6-2
  • EMC directive conforming to IEC 61000-6-3
  • EMC directive conforming to IEC 61000-6-4
  • EMC directive conforming to IEC 61131-2 zone B
  • low voltage directive conforming to IEC 61131-2

Ambient air temperature for operation

  • -20...40 °C in non-ventilated enclosure conforming to IEC 60068...2-1 and IEC 60068...2-2
  • -20...55 °C conforming to IEC 60068...2-1 and IEC 60068...2-2

Ambient air temperature for storage

-40...70 °C

Relative humidity

95 % without condensation or dripping water

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP060406EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

In

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

10

Package 1 bare product quantity

1

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Discrete input number

6

Number of outputs

4 relay

Kit composition

  • SR3B101FU
  • cable PC SR2USB01 for connection to PC

Input/output number

10

Local display

with

Number or control scheme lines

  • 120 with ladder programming
  • 0...200 with FBD programming

Cycle time

6...90 ms

Clock drift

  • 12 min/year at 0-55 °C
  • 6 s/month at 25-25 °C

Checks

program memory on each power up

[us] rated supply voltage

100...240 V

Supply voltage limits

85...264 V

Supply frequency

50/60 Hz

Maximum supply current

  • 30 mA at 240 V (without extension)
  • 40 mA at 240 V (with extensions)
  • 80 mA at 100 V (with extensions)
  • 80 mA at 100 V (without extension)

Power consumption in va

  • 12 VA with extensions
  • 7 VA without extension

Isolation voltage

1780 V

Discrete input voltage

100...240 V AC

Discrete input current

0.6 mA

Discrete input frequency

  • 47...53 Hz
  • 57...63 Hz

Voltage state 1 guaranteed

>= 79 V for discrete input

Voltage state 0 guaranteed

<= 40 V for discrete input

Current state 1 guaranteed

>= 0.17 mA (discrete input)

Current state 0 guaranteed

<= 0.5 mA (discrete input)

Input impedance

350 kOhm for discrete input

Output voltage limits

  • 5...30 V DC (relay output)
  • 24...250 V AC

Contacts type and composition

NO for relay output

Output thermal current

8 A for all 4 outputs for relay output

Switching capacity in ma

>= 10 mA at 12 V (relay output)

Operating rate in hz

  • 0.1 Hz (at Ie) for relay output
  • 10 Hz (no load) for relay output

[uimp] rated impulse withstand voltage

4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1

Clock

with

Response time

  • 50 ms with ladder programming (from state 0 to state 1) for discrete input
  • 50 ms with ladder programming (from state 1 to state 0) for discrete input
  • 50...255 ms with FBD programming (from state 0 to state 1) for discrete input
  • 50...255 ms with FBD programming (from state 1 to state 0) for discrete input
  • 10 ms (from state 0 to state 1) for relay output
  • 5 ms (from state 1 to state 0) for relay output

Tightening torque

0.5 N.m

Overvoltage category

III conforming to IEC 60664-1

Immunity to microbreaks

10 ms

Disturbance radiated/conducted

class B conforming to EN 55022-11 group 1

Pollution degree

2 conforming to IEC 61131-2

Operating altitude

2000 m

Maximum altitude transport

3048 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.000 cm

Package 1 width

15.500 cm

Package 1 length

23.200 cm

Package 1 weight

402.000 g

Unit type of package 2

S03

Number of units in package 2

10

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

4.504 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

244 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

59.415720277773424

Carbon footprint of the manufacturing phase [a1 to a3]

59 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.962881501552502

Carbon footprint of the distribution phase [a4]

1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.09114462383186536

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

182.22600093490786

Carbon footprint of the use phase [b2, b3, b4, b6]

182 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

1.21460515087764

Carbon footprint of the end-of-life phase [c1 to c4]

1 kg CO2 eq.

Pvc free

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Total lifecycle carbon footprint

243.9103524889433

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

eee2fc35-1620-4b70-b1d5-206e9240044e

Pvc free

Yes

End of life manual availability

ENVEOLI0604006EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
